Description
Working Mode:
1.PWM signal output working mode
2.S-BUS signal output working mode: blue/purple LED indicates S-BUS signal output, 12 channels totally.

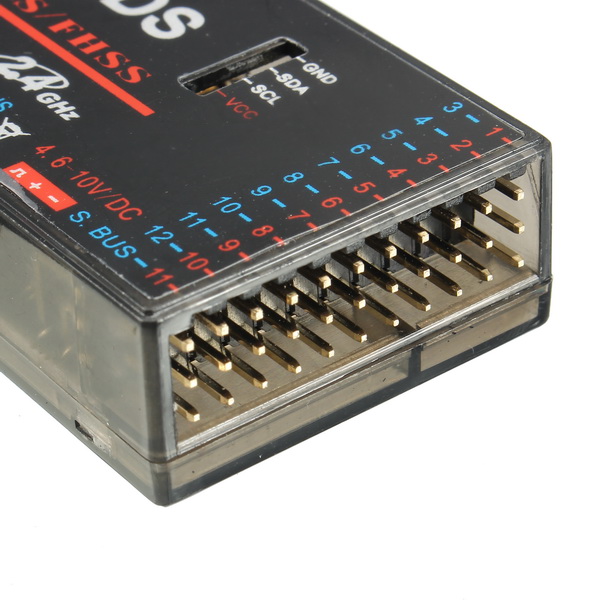

S-BUS and PWM signal working at the same time. S-BUS signal channel(3 pin of row 11) output 12 channels S-BUS signal, PWM signal channels(3 pin of row 1 to row 10) output CH3 to CH12 PWM signals, but 12 channel in total. How many PWM signal channels you can use depends on how many S-BUS signal channels you have used(e.g: you have use 4 S-BUS signal channels, then you have 8 PWM signal channels to use).
PWM signal working mode:
S-BUS signal working mode:
Description:
Brand Name: Radiolink

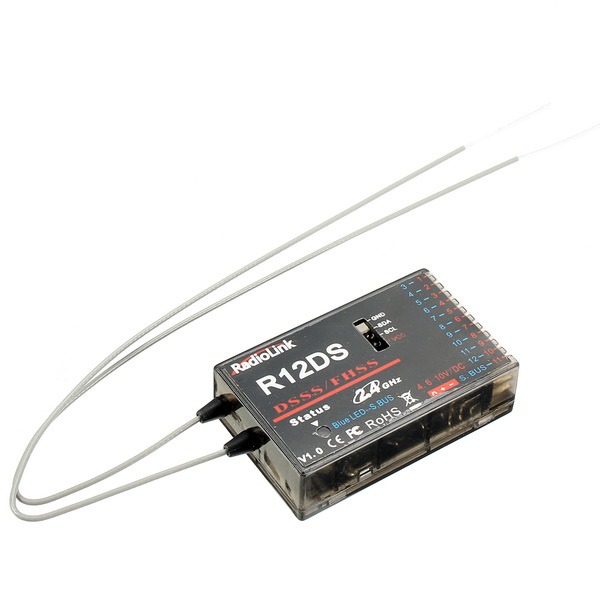

Item Name: R12DS 2.4G 12CH Dual Antenna Receiver
Channels: 12 channels,output 12 channels signal, support S-BUS and PWM signal output synchronously.
Working voltage: 4.8-10V
Working current: 38-45mA
Size: 50*31.5*14.5 MM
Weight: 14g
Receiver integrate telemetry sensor including signal strength and voltage. Support extended engine voltage telemetry module PRM-01 and module PRM-02 can feedback GPS info, Speed, voltage etc. on AT9/AT9S/AT10/AT10II display when work with flight controller APM or PIX.
Resolution: 4096 section precision, 0.25us per section, servo anti-shake rudder.
Control distance: about 4 kilometers air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Note:
1.Put the transmitter and the receiver close to each other within 1 meters.
2.Turn on the transmitter, then power on the R12DS.
3.Connect CH3 of R12DS to ESC.
4.There is a black button on the R12DS, use a thin stick press the button twice in two seconds, receiver light starts blinking, after about blinking 8 times, match code success and receiver signal LED always on!
Instroduction:check here
Package Included:
1X Radiolink R12DS 2.4G 12CH Dual Antenna Receiver
