Radiolink Mini PIX F4 Flight Controller MPU6500 With TS100 M8N GPS UBX-M8030 for RC Drone FPV Racing
Description:

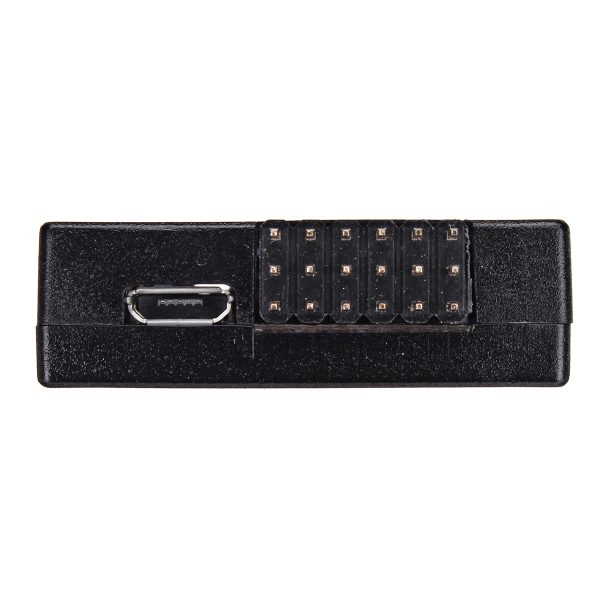

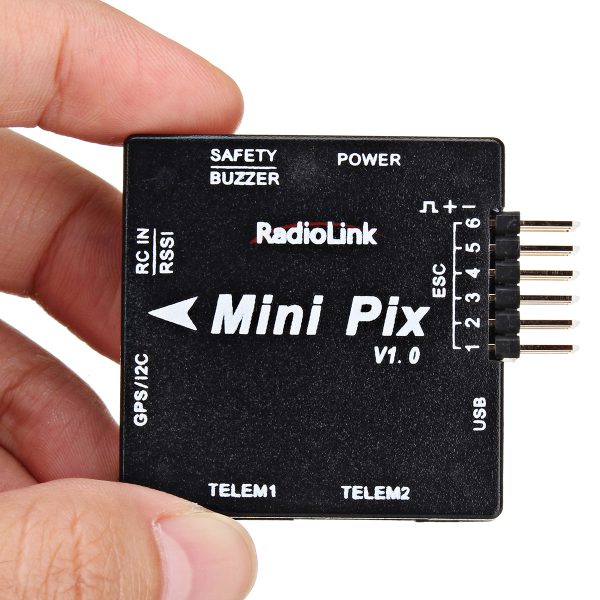

1. PIX F4 Flight Controller:
Processor: STM32F405VGT6
Gyro: MPU6500
Barometer: LPS22HB
Compass: QMC5883L

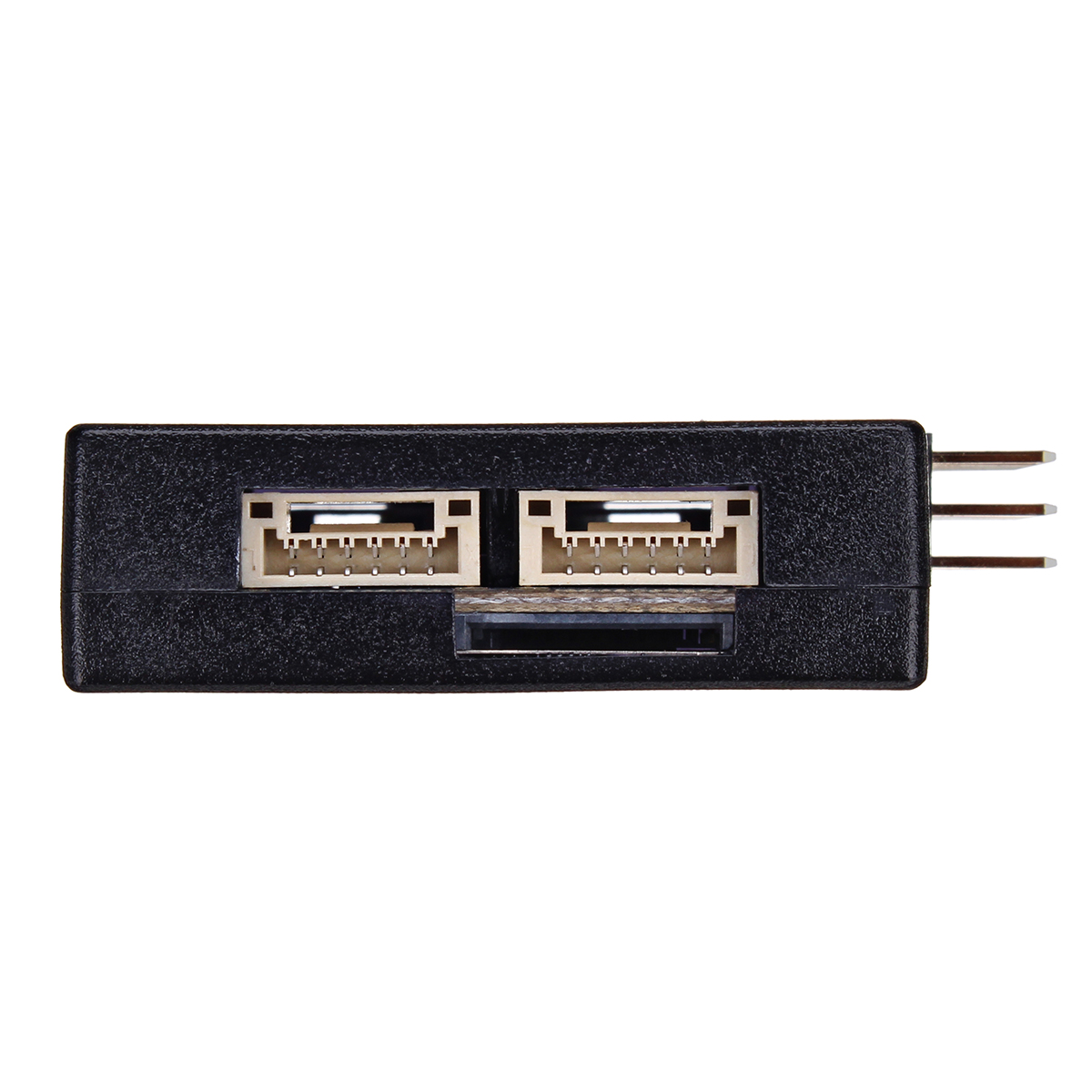

Connector: JST GH connector
Mavlink UART: 2(with CTSRTS)
Size: 39*39*12mm
Weight: 12g (without wires)
Better altitude hold
Same functions as PIXHAWK
Same size as F4
Cost-effective DIY solution
Top configuration
Vibration damping by software
Easy to control
Comprehensive technical support
2. TS100 Mini M8N GPS Module:
Size: 32*30*12mm
Weight: 20g
Positional accuracy: 50 centimeter precision when working with concurrent GNSS
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
Sensitivity:
Tracking & Nav.: -167dBm, Reacquisition: -163dBm
Cold start: -151dBm, Hot start: -159dBm
Time to first fix: Cold start: 26s, Hot start: 1s
Connect ports:
Power supply: voltage 5VDC+-5%, current 50~55mA
Ports:
A. GPS UART interface
baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B. Geomagnetic I2C interface
Top configuration:
GPS decoder chip: Radiolink M8N GPS, with u-blox UBX-M8030(M8), 72-channel, is much better than single GNSS 7N.
Geomagnetic: QMC5883L which with same technology as HMC5983 form Honeywell
Antenna: 2.5dbI high gain and selectivity ceramic antenna
Double filter: SAWF(Surface acoustic wave filter) form Murata
Radiolink mini pix user manual

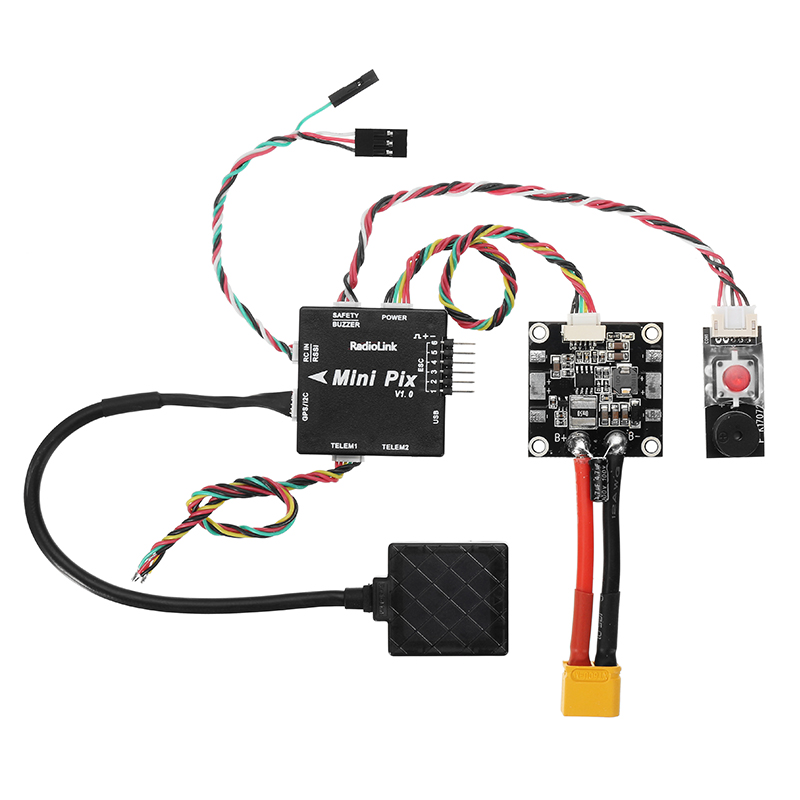

Package included:
1 x Mini PIX F4 flight controller
1 x TS100 Mini M8N GPS

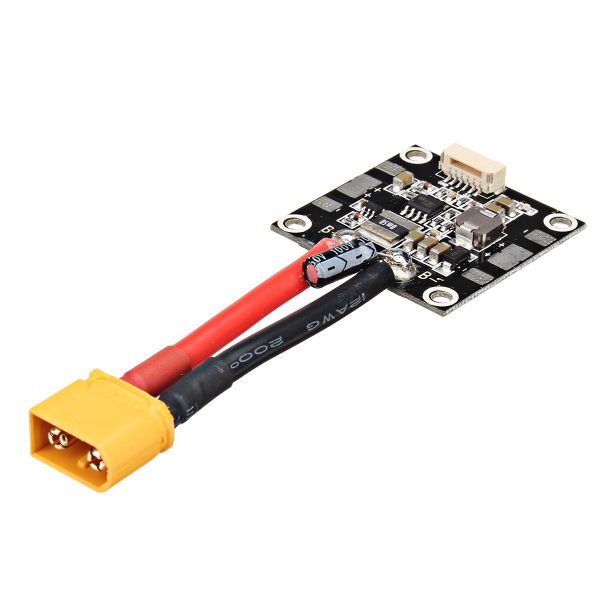

1 x power module
1 x buzzer
1 x power module connect cable
1 x buzzer connect cable
1 x receiver & RSSI connect cable
1 x safety switch button
,
,
,
,
,
,
,
,
,
,
,
