Description

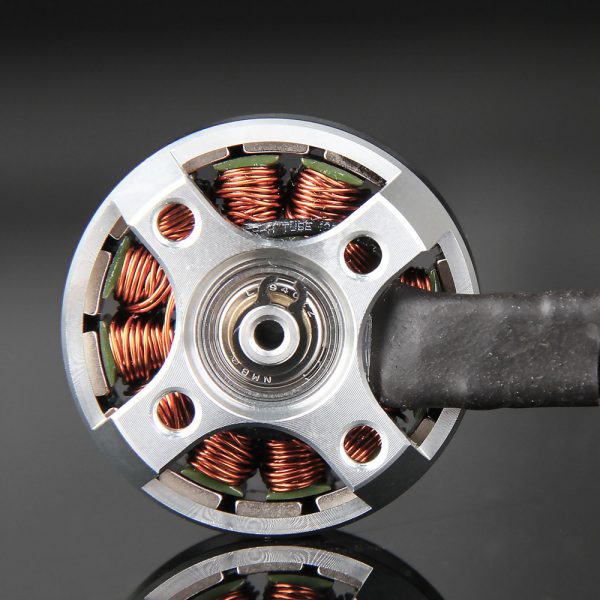

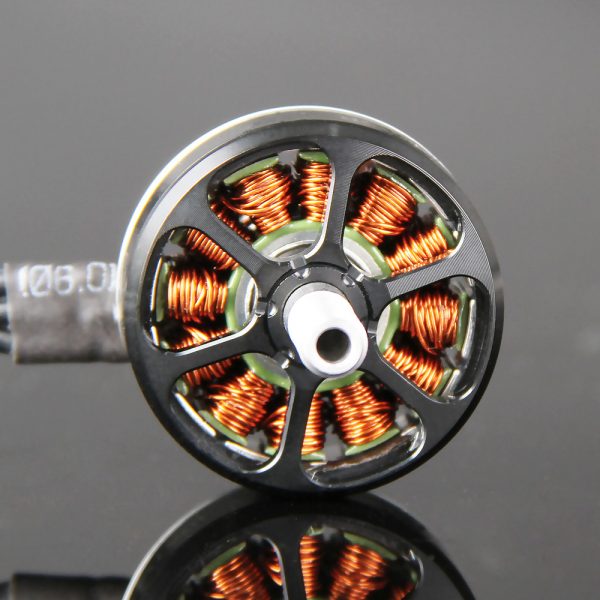

Racerstar & T-Motor F40 Pro 2306 1600KV 3-6S / 2400KV 3-4S Motor for RC Drone FPV Racing
Specification:
Brand Name: Racerstar & T-Motor
Model: F40 Pro
Item Name: 2306 1600KV 3-6S / 2400KV 3-4S Brushless Motor
KV: 1600KV / 2400KV ( Optional)
Version: CW Screw Thread
Quantity: One PC
Input Voltage: 3-4S Lipo ( 2400KV Version )
3-6S Lipo ( 1600KV Version )
Configuration: 12N14P
Motor Dimension: 27.9×30.5mm
Shaft Diameter: 4mm
Cable Length: 200mm ( 20AWG)
Internal Resistance: 48mΩ @ 2400KV; 105mΩ @ 1600KV
Max. Con. Current: 42.5A (180S)@2400KV ; 27.5A (180S)@1600KV
Max. Con. Power: 633W (180S)@2400KV; 641(180S)@1600KV
Weight: 34.2g@2400KV ; 33.7g@1600KV
Package Included:
1x F40 Pro 2306 Motor
1x Motor Nut
1x bag of Screws
