Description
Racerstar RS20Ax4 20A 4 in 1 Blheli_S Opto ESC 2-4S Support Oneshot42 Multishot Dshot150 Dshot300
Specification:
Brand Name: Racerstar
Item Name: 20A 4 in 1 Blheli_S Opto 2-4S ESC
Model: RS20Ax4
Input Voltage: 2-4S
Con.Current:20A
Peak Current(10s):25A
BEC:NO
Programming :YES
Installing Distance: 30mm
Net Weight:19g
25g ( Including cable)
Size(PCB):36x36mm
Features:
–with Blheli_S firmware
–4 in 1 ESC, more easier to install
-with 24MHz BB1 Clip
–Support oneshot42 multishot, Dshot150 and Dshot300
-Small size and light weight
How to Flash the ESC? Please click here
–Rev 16.2 Fixed bug that prevented temperature protection
-Improved robustness to very high input signal rates
-Beeps can be turned off by programming beep strength to 1
-Throttle cal diffirence is checked to be above required minimum before storing
-Throttle cal max is not stored untill successful min throttle cal.
Package Included:

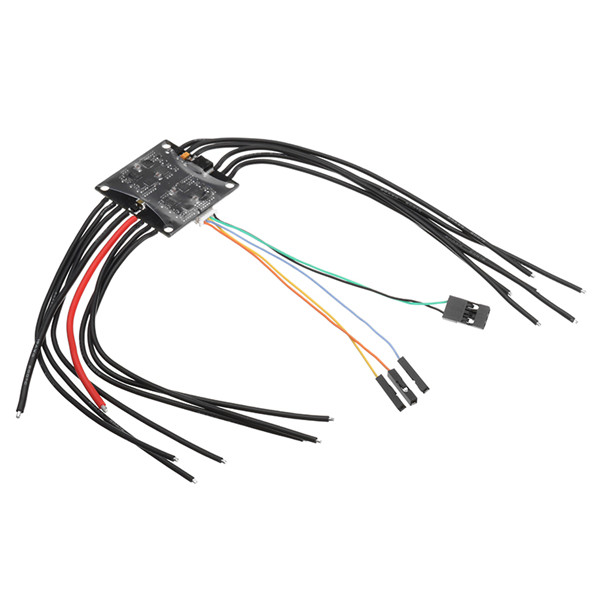

1x RS20Ax4 20A 4 in 1 ESC

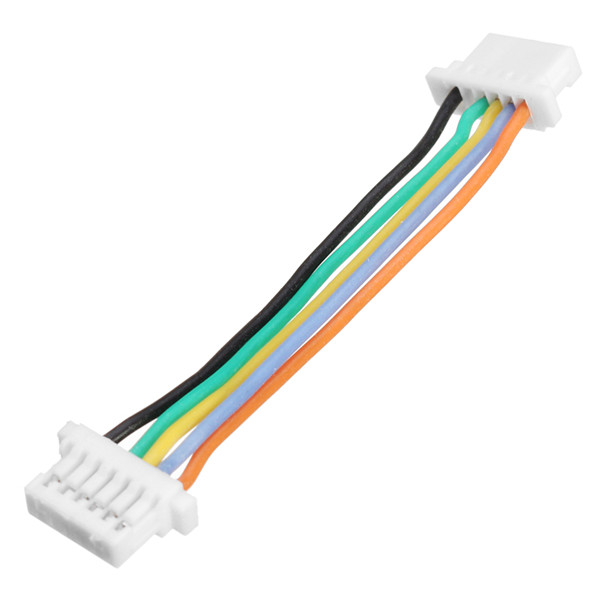

1x 5P Cable

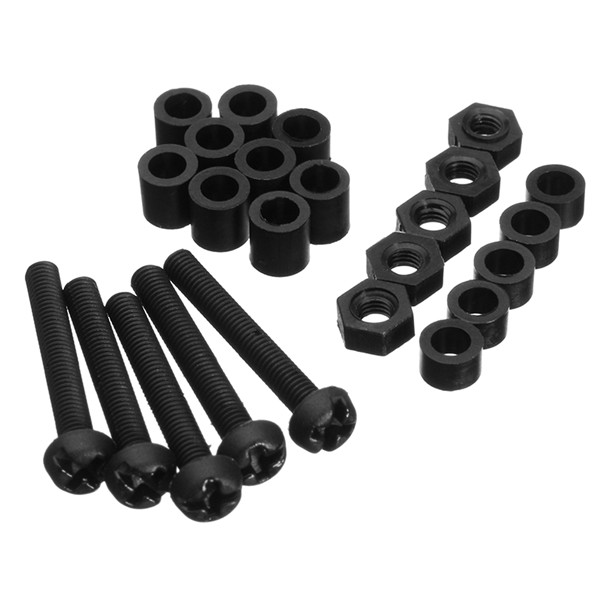

1x Screws bag
