Racerstar MELO F4 Bluetooth Flight Controller AIO OSD BEC Support APP Configuration for RC Drone FPV Racing

$28.50

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

Racerstar MELO F4 Bluetooth Flight Controller AIO Betaflight OSD BEC Support APP Configuration for RC Drone

Specification:
Brand Name: Racerstar
Model: Melo F4
Item Name: F4 OSD Bluetooth Flight Controller Support APP Configuration
CPU: STM32F405
MPU: MPU6000 ( via SPI )
Input Voltage: Support 2-8S Lipo Input
Firmware: MATEKF405
Barometer: BMP280
Built-In Betaflight OSD
Built-in 5V@2A ; 10V@2A BEC Output
Support DSM2/X, SBUS, IBUS, PPM,
Size: 37x37mm
Mounting Hole: 30.5×30.5mm

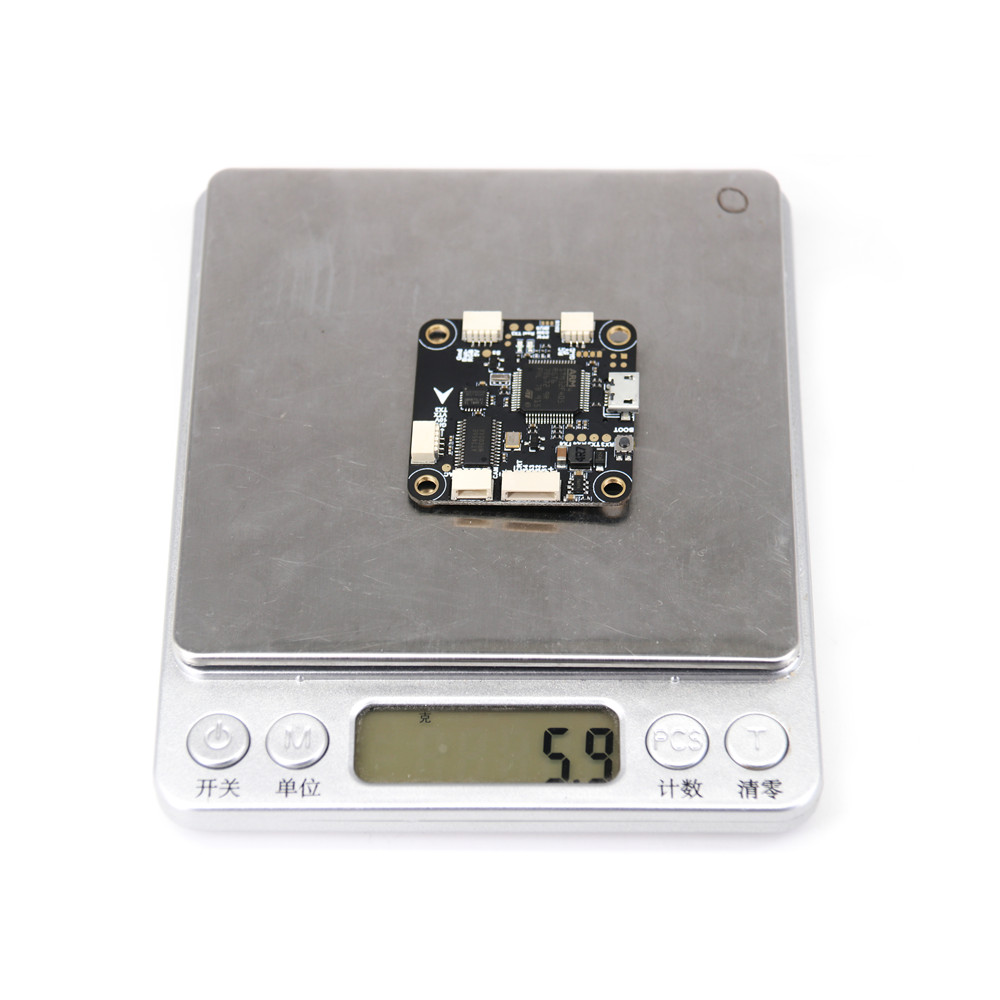

Weight: 5.9g

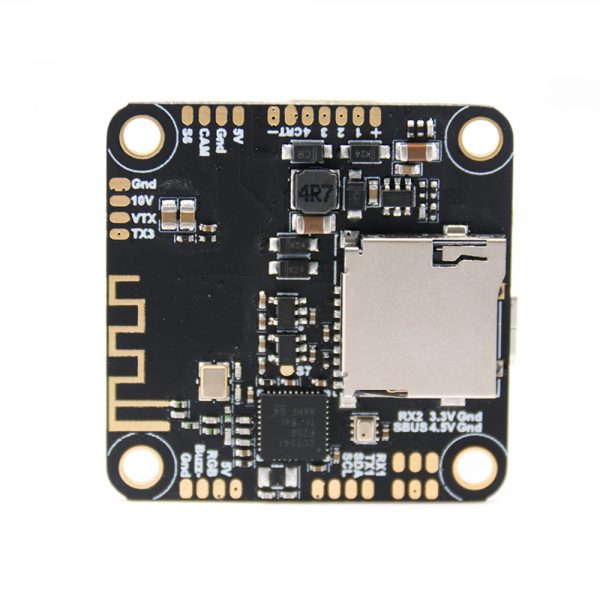

Instruction for diagram pciture:
1.  4.5V:  4.5V output for Receiver ( the voltage of powering via USB only)
2.  3.3V: 3.3V output ( Need 5V input for Flight Controller firstly)
3.  NC: NOT Connected ( DON'T need connect to any parts)
4.  CRT: Current Detection Port
5.  S5: RGB LED Strip Remap Pin
6.  S6, DAC: Camera Configuration Pin ( be Optional by FC's firmware Version)
7.  S7:  Reserved for GPS Connection
8.  CAM: Camera Input Port
9.  VTX: FPV Transmitter Input Port
10. RGB: RGB LED Strip Connection Port
11. Buz+ & Buz- : Possitive Buzzer "+" and "-"
12. TX2: Receiver SmartPort Connection Pad
13. Rssi: Rssi Signal Input Port

Features:
– STM32F405, 168MHz

– On-board buletooth module, support APP Configuration via smartphone
– 5V & 10V 2A BEC output for FPV

– Integrated betaflight OSD
– with BMP280 barometer
– MicroSD Blackbox
– 4 UARTS & I2C Port, for GPS Connection
– Plugs connector / Soldering Pads are Optional for all connector Port

Package Included:
1x Racerstar Melon F4 Flight Controller Board
