Racerstar 3670 Sensorless Waterproof Brushless Motor 120A ESC For 1/8 Car

Description

Racerstar 3670 Sensorless Waterproof Brushless Motor 120A ESC For 1/8 Car

Description:
Brand: Racerstar
Item: 3670 motor & 120A ESC
Waterproof Level: Splash-proof

Motor  Features:
– 4 pole 12 slot hi-torque motor design
– CNC machined 6061 T6 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings
– Universal fit, fits all 1/8 brushless cars
– Precision balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin 0.2mm laminations
– Removalbe/replaceable rotor
– Precision engineered for maxium energy coversion

Motor Specification:
Brand: Racerstar
Max Power: 1600W
Max Voltage: 24V
Max Amps: 66A
Rotor Poles: 4
Max RPM: 60K
Length: 70mm
Diameters: 36mm
Weight: About 275g
Shaft: Φ5mm
Length of Extend Shaft: 17mm

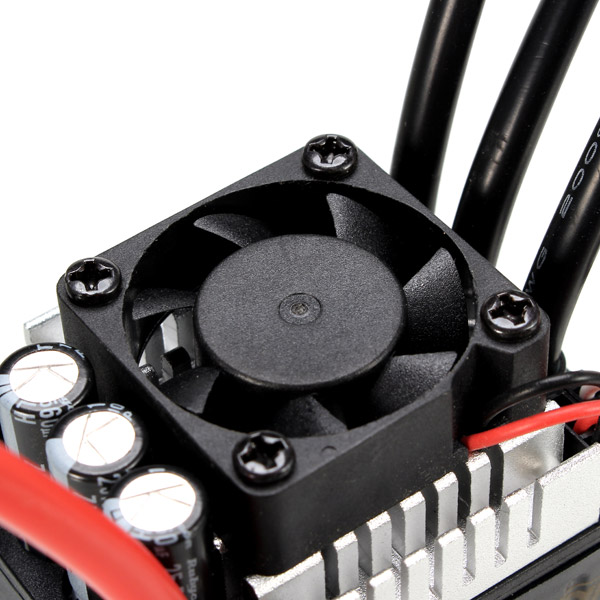

ESC Features:
– Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
– Compatible with sensorless brushless motor
– The strong resistant current capability, excellent heat dissipation
– Multiple protection features:  low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
– Easily programmed and compatible with pocket-sized program card

ESC Specifications:

Note:
If you use the motor ESC combo for 1/8 RC car, it would be better that you use 4s Lipo.
If you want to use 6s Lipo, please use with Racerstar 4068 motor or 4076 motor.

Instructions:
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC
5. When the connection of motor and battery is finished, the motor emits "Beep-Beep"  tone
6. When the throttle stick is the neutral position, the motor re-emits "Beep-Beep" tone
7. The ESC is workable

For ESC program card, please click

Package Included:
1 X Motor
1 X ESC
1 X Instruction
