Racerstar 3660 Brushless Waterproof Sensorless Motor 80A ESC For 1/8 1/10 Short Course Rally Car
Description:

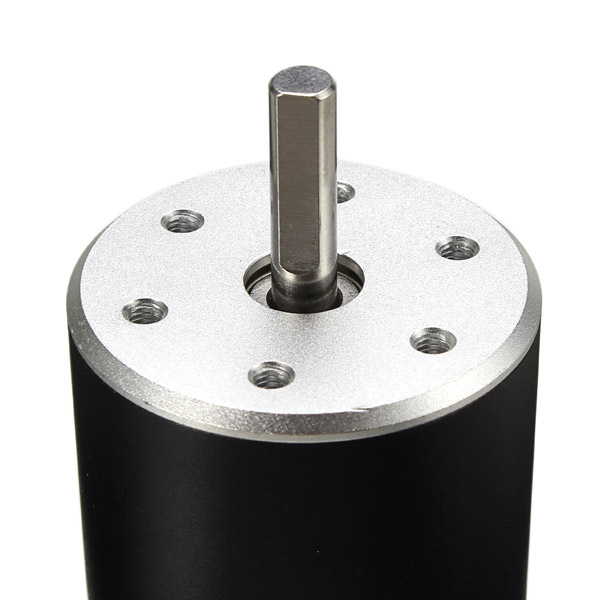

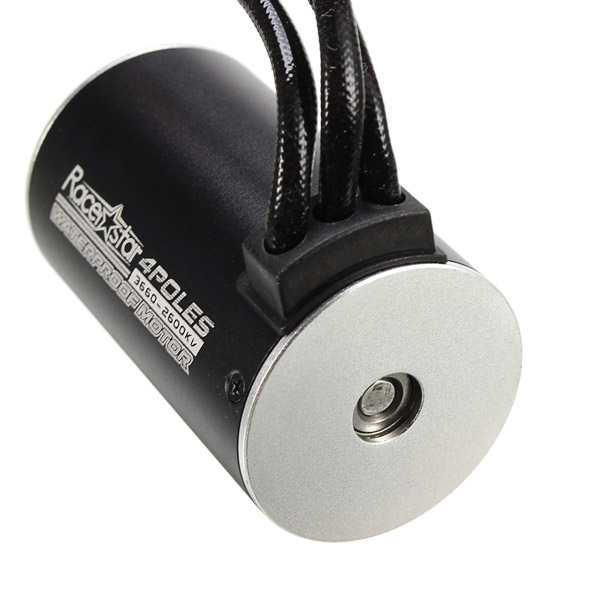

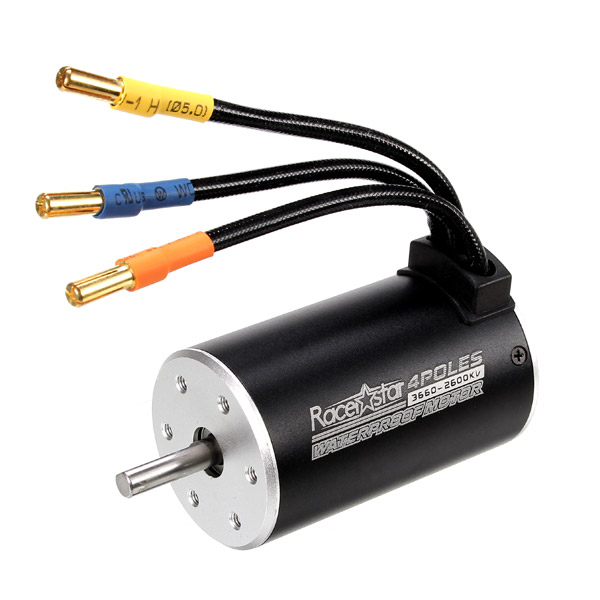

Motor Features:
– 4 pole 12 slot hi-torque motor design
– CNC machined 6061 T6 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings
– Universal fit, fits all 1/8, 1/10 brushless cars
– Precision balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin 0.2mm laminations
– Removalbe/replaceable rotor
– Precision engineered for maxium energy coversion
Motor Specification:
Max Power: 1200W
Max Voltage: 18V
Max Amps: 66A
Rotor Poles: 4
Max RPM: 60K
Length: 60mm
Diameters: 36mm
Weight: About 195g
Shaft: Φ5mm
Length of Extend Shaft: 17mm

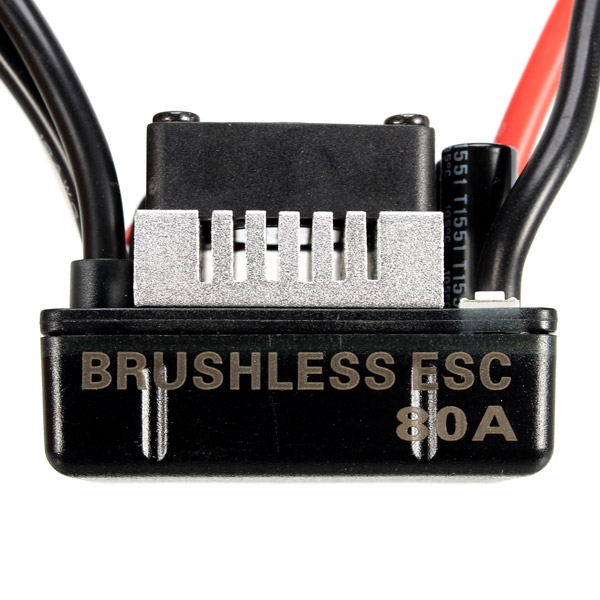

ESC Features:
– Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
– Compatible with sensorless brushless motor
– The strong resistant current capability, excellent heat dissipation
– Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
– Easily programmed and compatible with pocket-sized program card
ESC Specifications:
| Model | 80A |
| Cont./Burst Current: | 80A/480A |
| Suitable Car | 1/8 , 1/10 RC Car |
| Suitable Brushless Motor | ≥5.5T |
| Resistance | 0.0005ohm |
| Battery | 2~4 Cells Lipo 4~12 Cells NiMH |
| BEC Output | 6.1V/3A (Switch Mode) |
| Dimension | 41*51*35mm |
Instructions:
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC
5. When the connection of motor and battery is finished, the motor emits "Beep-Beep" tone
6. When the throttle stick is the neutral position, the motor re-emits "Beep-Beep" tone
7. The ESC is workable
For ESC program card, please click
Package Included:
1 X Motor
1 X ESC
1 X Instruction
