Description
Description:
Brand: Racerstar

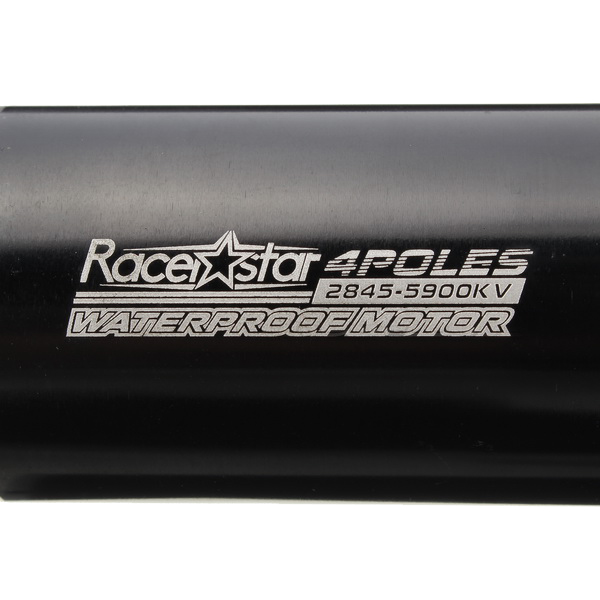

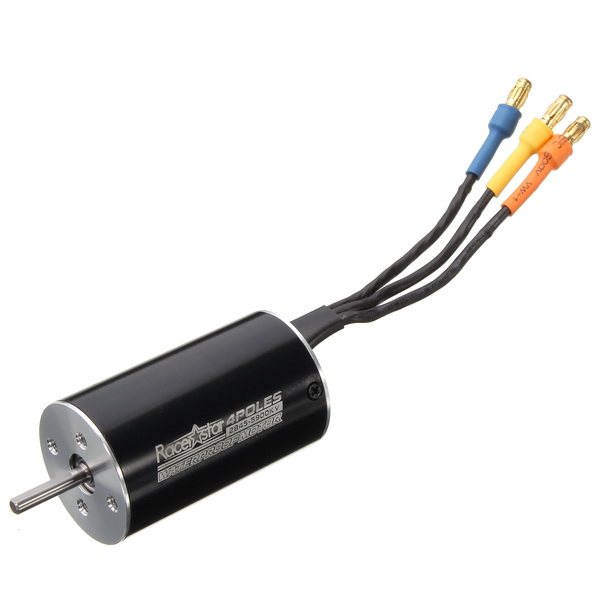

Item: 2845 Brushless Motor
Waterproof Level: Splash-proof
Specification:
Watts: 800
KV: 5900/5000/4370/3930/3800/3100/2800/2600KV
Max Voltage: 9V, 10V, 12V, 13V, 14V, 17V, 18V, 19V
Max Amps: 88A, 80A, 66A, 60A, 57A, 47A, 45A, 42A
Watts: 800
KV: 5900/5000/4370/3930/3800/3100/2800/2600KV
Max Voltage: 9V, 10V, 12V, 13V, 14V, 17V, 18V, 19V
Max Amps: 88A, 80A, 66A, 60A, 57A, 47A, 45A, 42A
IO: 5.2A, 4.3A, 3.2A, 2.4A, 2.2A, 1.9A, 1.3A, 1.2A
Resistance: 0.0104, 0.0138, 0.0185, 0.0196, 0.0213, 0.0285, 0.0355, 0.0425
Max RPM: 50000
Length: 46.8mm
Diameters: 28mm
Shaft: ￠3.175mm
Lenght of extend shaft: 12mm
Connector: 3.5mm gold
Resistance: 0.0104, 0.0138, 0.0185, 0.0196, 0.0213, 0.0285, 0.0355, 0.0425
Max RPM: 50000
Length: 46.8mm
Diameters: 28mm
Shaft: ￠3.175mm
Lenght of extend shaft: 12mm
Connector: 3.5mm gold
Poles: 4
Weight: 125g
Application: 1:12 1:14 On/Off-road/ Truck /Monster RC Car
Feature:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/12, 1/14 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/12, 1/14 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Package Included:
1 x Motor
