Racerstar 2430 Sensorless Waterproof Motor 7200/5800KV 25A ESC For 1/18 1/20 Cars
Description:
Motor Features:
– 4 pole 12 slot hi-torque motor design
– CNC machined 6061 T6 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings
– Universal fit, fits all 1/16, 1/18, 1/20 brushless cars; multi-mounting system for M2.5 screws
– Precision balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin (0.35mm) laminations
– Removalbe/replaceable rotor
– Precision engineered for maxium energy coversion
Motor Specification:
| Product | Watts | Max Voltage | Max Amps | Rotor Poles | IO | Resistance | KV (RPM/Volt) |
Max RPM | Length | Diameters | Weight (g) |
Shaft (mm) |
Length of Extend Shaft | Connector |
| 2430 | 200 | 8.4V | 24A | 4 | 2.3A | 0.007 | 7200 | 60000 | 30mm | 24mm | 58 | ￠2 | 12mm | 3.5mm gold |
| 2430 | 200 | 10.8V | 18A | 4 | 1.9A | 0.013 | 5800 | 60000 | 30mm | 24mm | 58 | ￠2 | 12mm | 3.5mm gold |

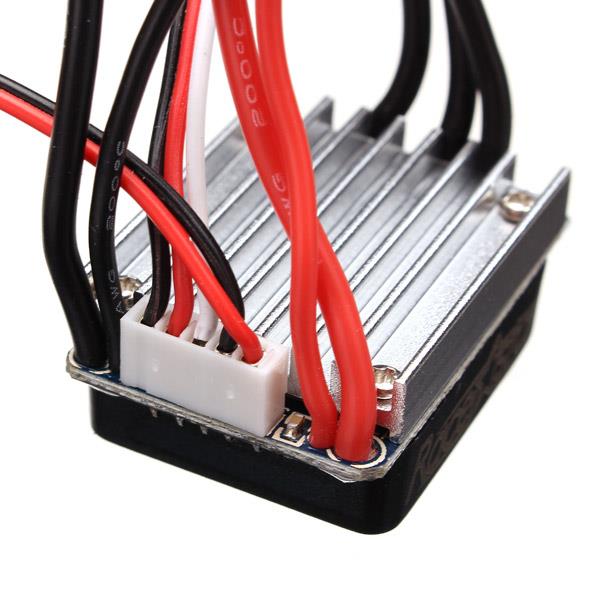

ESC Features:
– Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
– Compatible with sensorless brushless motor
– The strong resistant current capability, excellent heat dissipation
– Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
– Easily programmed and compatible with pocket-sized program card
ESC Specifications:
| Model | 25A |
| Cont. Current / Burst Current | 25A / 100A |
| Motor Type | Sensorless Brushless Motor |
| Suitable Car | 1/18, 1/16 |
| Suitable Brushless Motor | ≥12T |
| Resistance | 0.004ohm |
| Battery | 2 cells Lipo 4-6 cells NiMH |
| BEC Output | 5V/2A (analog mode) |
| Dimension | 25*30*14.5mm |
If you want to upgrade WLtoys 1/18 cars and FS Racing 73902 1/18 Brushed Buggy,
you may need battery(Product ID: 914720), please click here; battery (Product ID: 1052678), please click here.
For ESC program card, please click
Package Included:
1 X Motor
1 X ESC
2 X Instruction
