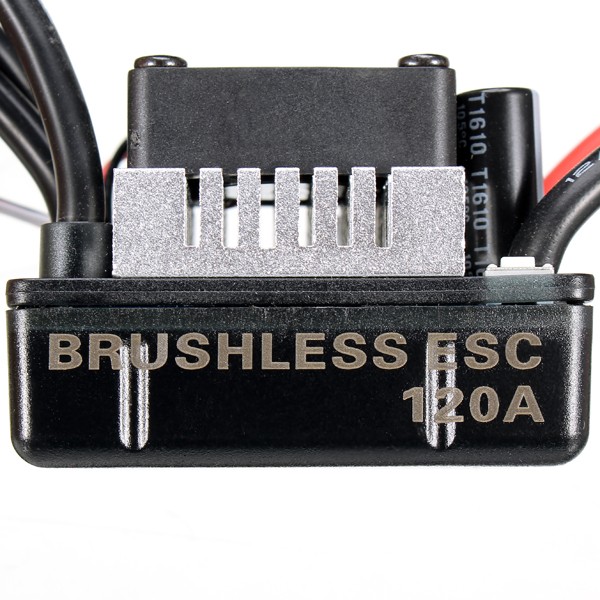

Racerstar 120A ESC Brushless Waterproof Sensorless 1/8 RC Car Part
Description:
Brand: Racerstar
Item: Brushless 120A ESC
Waterproof Level: Splash-proof
ESC Features:
– Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
– Compatible with sensorless brushless motor
– The strong resistant current capability, excellent heat dissipation
– Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
– Easily programmed and compatible with pocket-sized program card
ESC Specifications:
| Model | 25A | 35A | 45A | 60A | 80A | 120A |
| Cont. Current/ Burst Current |
25A/100A | 35A/120A | 45A/180A | 60A/320A | 80A/480A | 120A/600A |
| Motor Type | Sensorless Brushless Motor | |||||
| Suitable Car | 1/18, 1/16 | 1/18, 1/16, 1/14 | 1/10 | 1/10 | 1/8 | 1/8 |
| Suitable Brushless Motor | ≥12T | ≥12T | ≥9T | ≥9T | ≥5.5T | ≥3.5T |
| Resistance | 0.004ohm | 0.003ohm | 0.0014ohm | 0.0007ohm | 0.0005ohm | 0.00035ohm |
| Battery | 2 cells Lipo 4-6 cells NiMH |
2-3 cells Lipo 4-9 cells NiMH |
2-3 cells Lipo 4-9 cells NiMH |
2-3 cells Lipo 4-9 cells NiMH |
2-4 cells Lipo 4-12 cells NiMH |
2-6 cells Lipo 4-18 cells NiMH |
| BEC Output | 5V/2A (analog mode) |
5V/2A (analog mode) |
5.8V/3A (switch mode) |
5.8V/3A (switch mode) |
6.1V/3A (switch mode) |
6.1V/3A (switch mode) |
| Dimension | 25*30*14.5mm | 25*30*18.5mm | 32.5*34*24mm | 32.5*34*24mm | 41*51*36mm | 41*51*36mm |
Instructions:
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC
5. When the connection of motor and battery is finished, the motor emits "Beep-Beep" tone
6. When the throttle stick is the neutral position, the motor re-emits "Beep-Beep" tone
7. The ESC is workable
For ESC program card, please click
Package Included:
1 X ESC
1 X Manual
