Description

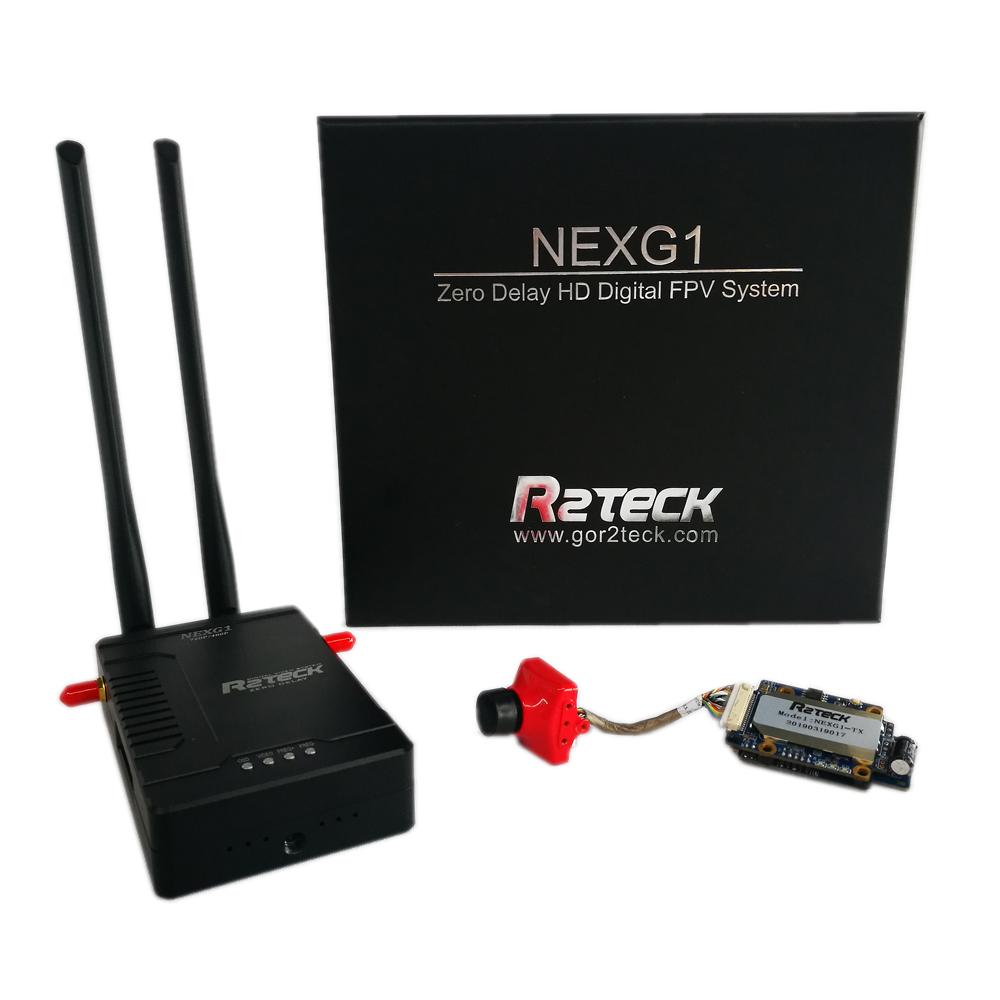

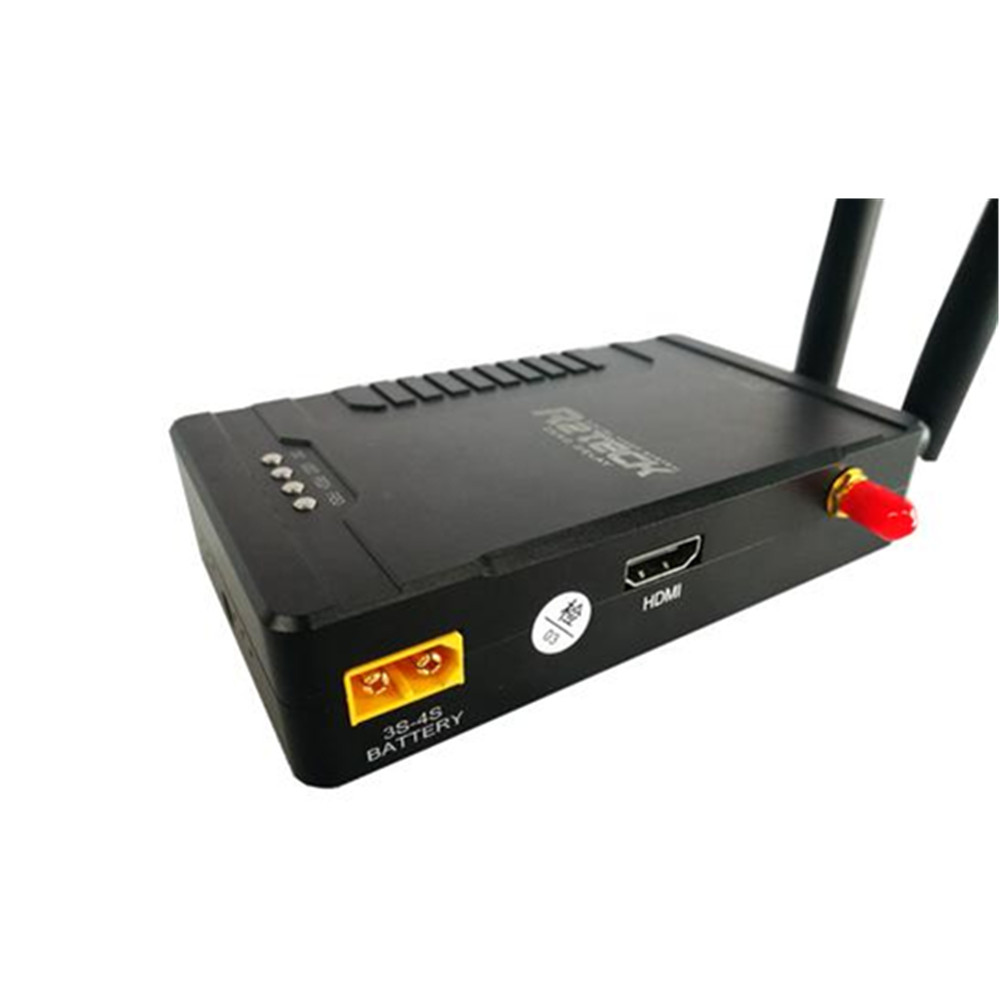

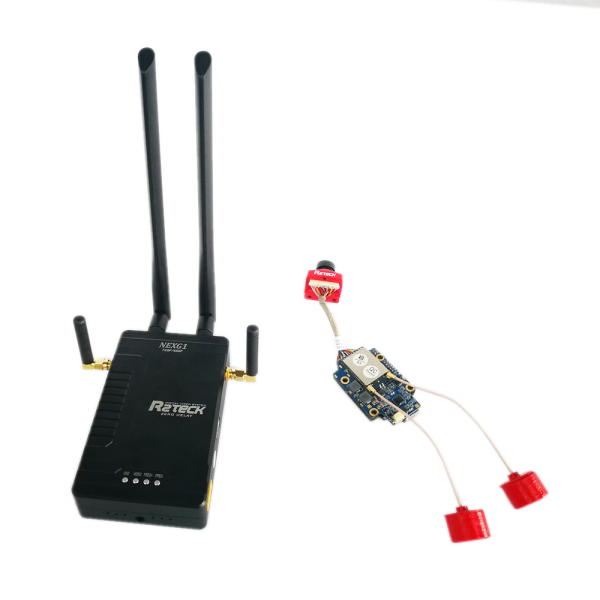

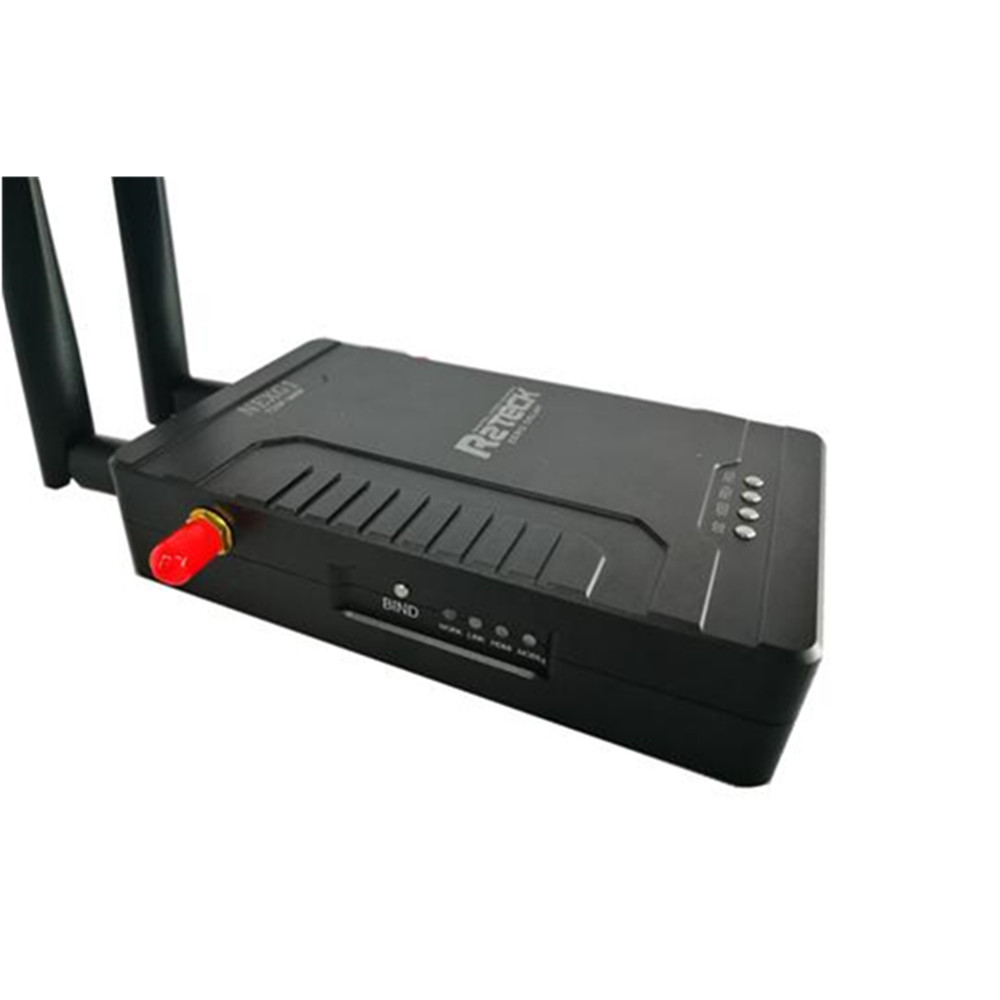

R2Teck NEXG1 is a 720p/480p HD Digital Video transmission system that includes both transmitter and receiver.
It transmits the video, image and other information by the wireless communication mode.
NEXG1 is perfect for both FPV Racing Drones and FPV fixed wing planes because of the light weight,
low power, long distance and low latency.
It transmits the video, image and other information by the wireless communication mode.
NEXG1 is perfect for both FPV Racing Drones and FPV fixed wing planes because of the light weight,
low power, long distance and low latency.
Long distance transmission, 480P is up to 1500m, and 720P is up to 1000m.
No snow, no noise, no stubble, no stuck. In the same field. Multiple devices,
theoristically up to 48, can be used at the same time without interference.
No snow, no noise, no stubble, no stuck. In the same field. Multiple devices,
theoristically up to 48, can be used at the same time without interference.

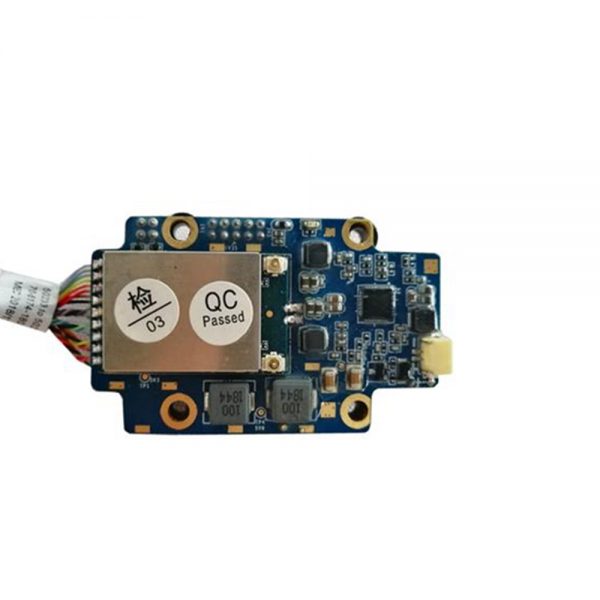

Please install the transmitter on the FPV, connect receiver to the monitor or mobile phone for monitoring the video.
Specifications:
Video Resolution: 720P/480P
Communication distance (outdoor, no obstruction): ≥1500m(480P) / 1000m(720P)
Latency: 30-50ms screen to screen
Transmitting Power: 25mw~200mw adjustable
Receiving sensitivity: -95dbm±2dbm
Operating Temperature: -10~60℃
Storage Temperature: -20~50℃
Size (Include shell, no antenna): Transmitter: L.60 mm×W. 36 mm×H.10 mm/
Receiver: L.105 mm×W. 74 mm×H.26 mm
Receiver: L.105 mm×W. 74 mm×H.26 mm
Weight (Include shell, no antenna): Transmitter: 16g/
Receiver: 174g
Receiver: 174g
Transmitter working voltage: 3s-6s, the current is greater than 1.5A, otherwise it will affect the system performance
Receiver working voltage: 12v-21v, make sure the current is greater than 1A, otherwise it will affect the system performancef
Features:
– Digital video zero delay system
– 480p 1500m, 720p 1000m distance with 200MW output power.
– Frequency hopping technology, no frequency interference even operate in same frequency .
– 7 work channels, maximum 28 systems work at same time in same area.
– 5Ghz system
– HDMI output + wifi output, can work with HDMI devices (Fatshark glass/monitor) and mobile device same time.
– Recording video in mobile devices, easy to upload to Internet.
– Wide voltage input from 2S-6S battery.
– Transmitting power: 25-200mw adjustable.
Package included:
1 x R2TECK NEXG1 720P/480P Digital Zero-delay Wireless FPV VTX Transmitter Receiver Transmission System
