Description

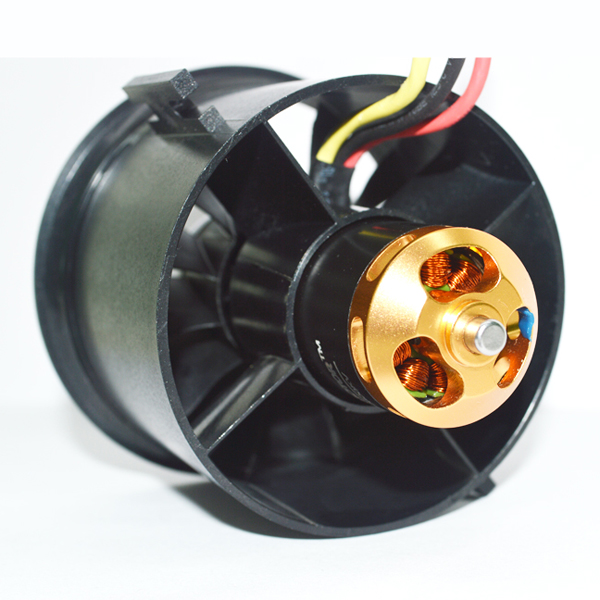

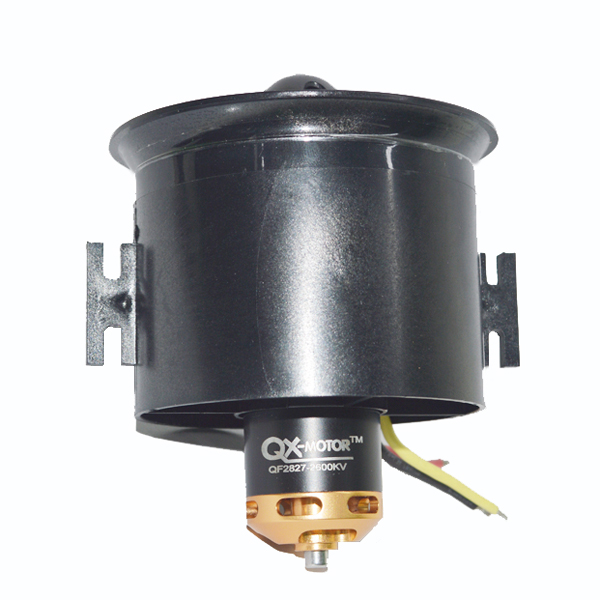

QX-Motor QF2827(9) 70mm 12 Blades Ducted Fan With 2827-2849 2600KV Brushless Motor
Description:
Brand Name: QX-Motor
Item Name: Ducted fan with brushless motor set
Ducted Fan: 70mm 12 blades
Motor: QF2827(9) brushless motor
Specifications of Motor:
| KV | 2600 | Idle Current @10.0V | 2.0A |
| Configuration | 12N8P | No.of Cells(Lipo) | 4S |
| Stator Diameter | 22mm | Max Continuons Current(A)/60s | 62A |
| Stator Length | 27mm | Max Continuons Power(W)/60s | 1000W |
| Shaft Diameter | Φ4mm | Max Efficiency | >70.5% |
| Motor Dimension | 24x48mm | Internal Resistance | 0.035oh,s |
| Weight | 107g | Recom. ESC | 80A |
Tested With 80A ESC:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thruse(g) | Thrust(oz) | Efficiency(g/w) |
| 70FAN | 16.5 | 62.0 | 1023 | 1800 | 63.49 | 1.76 |
| 70FAN | 16.5 | 61.0 | 1006.5 | 1500 | 52.91 | 1.49 |
Package Included:
1X QX-Motor QF2827(9) 70mm 12 Blades Ducted Fan With 2827-2849 2600KV Brushless Motor
