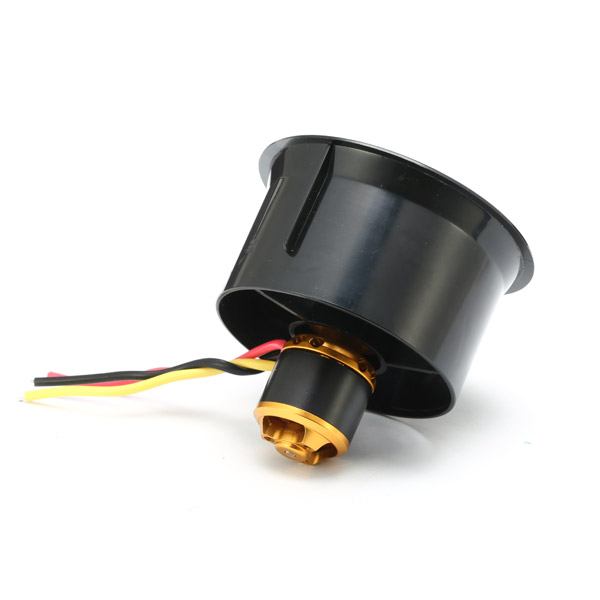

QX-Motor 64MM 5 Blades EDF Unit With QF2611-4500KV Brushless Motor
Description:
Brand Name: QX-Motor
Item Name: EDF unit with brushless motor set
EDF Unit: 64mm 5 blades
Brushless Motor: QF2611-4500KV
Specifications of Motor:
| KV | 4500 | Idle Current @10.0V | 1.8A |
| Configuration | 9N6P | No.of Cells(Lipo) | 3S |
| Stator Diameter | 20.2mm | Max Continuons Current(A)/60s | 27A |
| Stator Length | 11mm | Max Continuous Power(W)/60s | 280W |
| Shaft Diameter | Φ3mm | Max Efficiency | >70% |
| Motor Dimension | 26x47mm | Internal Resistance | 0.043ohMs |
| Weight | 49 | Recom. ESC | 35A |
Tested With 35A ESC:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/w) | Efficiency(oz/w) |
| 64FAN | 11.1 | 25.0 | 277.5 | 750 | 26.46 | 2.70 | 0.10 |
Package Included:
1x QX-Motor 64MM 5 Blades EDF Unit With QF2611-4500KV Brushless Motor
