QX-Motor 64mm 12 Blades Ducted Fan With 2822 3500KV 3-4S Brushless Motor
Description:
Brand Name: QX-Motor
Item Name: Ducted fan with brushless motor set

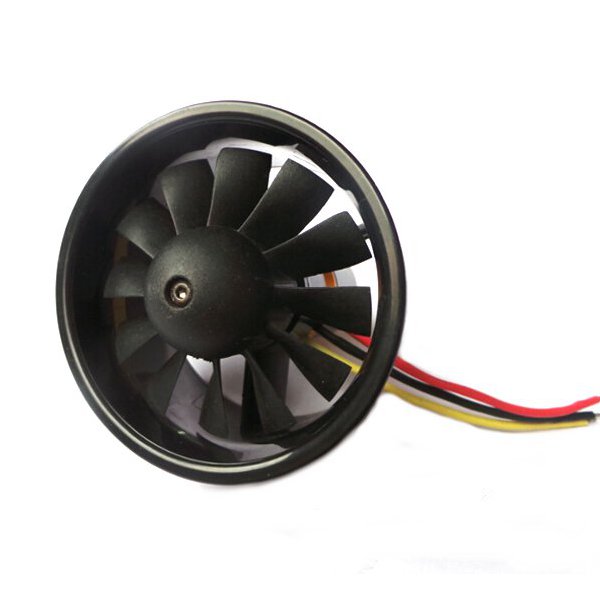

Ducted Fan: 64mm 12 blades

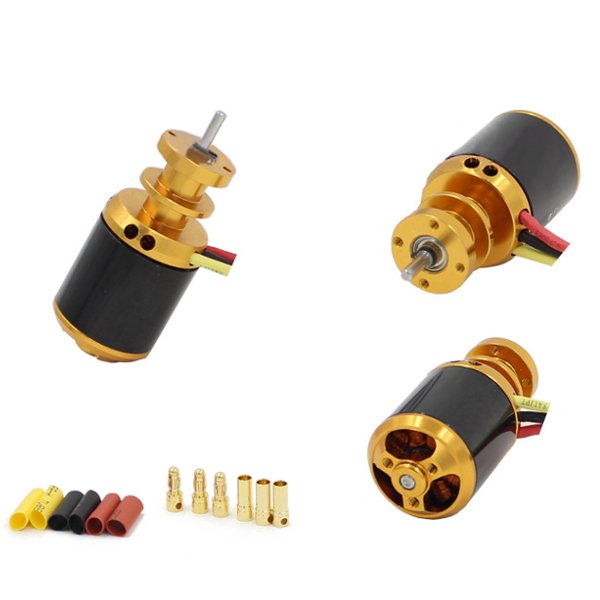

Motor: QF2822 brushless motor
Recommended Battery: 3-4s Lipo (not included)
Recommended ESC: 60A,80A (not included)
Specifications of Motor:
| KV | 3500 | Idle Current @10.0V | 3.5A |
| Configuration | 9N6P | No.of Cells(Lipo) | 3-4S |
| Stator Diameter | 22mm | Max Continuons Current(A)/60s | 55A |
| Stator Length | 22mm | Max Continuous Power(W)/60s | 850W |
| Shaft Diameter | Φ4mm | Max Efficiency | >70% |
| Motor Dimension | 28x61mm | Internal Resistance | 0.033oh,s |
| Weight | 90g | Recom. ESC | 65A |
Tested With 80A ESC:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/w) | Efficiency(oz/w) |
| 64FAN/12-Blade | 14.8V | 52.0 | 769.6 | 1250 | 44.09 | 1.62 | 0.06 |
Packege Included:

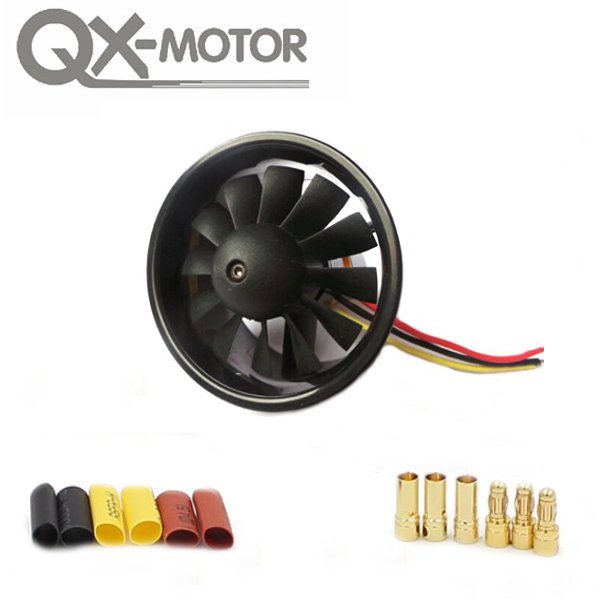

1x QX-motor 64mm 12 blades ducted fan w/QF2822 3500KV motor
