Description

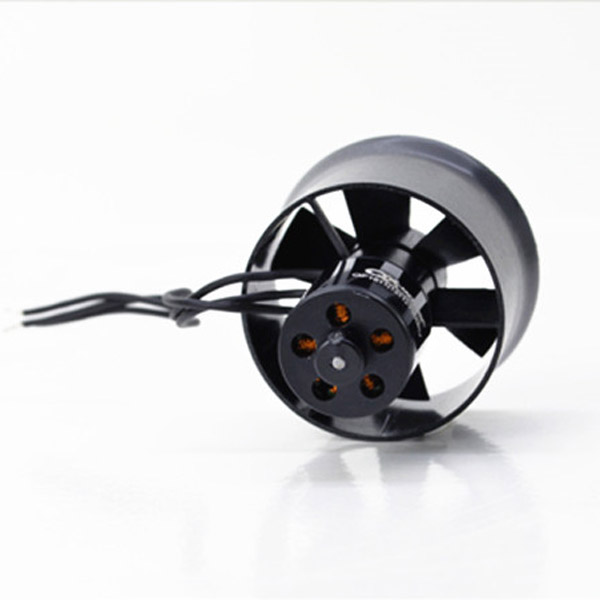

QX-Motor 30mm 6 Blades EDF Unit With QF1611 14000KV Brushless Motor
Description:
Brand Name: QX-Motor
Item Name: EDF unit with brushless motor set
EDF Unit: 30mm 6 blades
Brushless Motor: QF1611-14000KV
Specifications of Motor:
| KV | 14000 | Idle Current @10.0V | 0.5A |
| Configuration | 9N6P | No.of Cells(Lipo) | 2S |
| Stator Diameter | 13mm | Max Continuons Current(A)/60s | 12A |
| Stator Length | 11mm | Max Continuous Power(W)/60s | 120W |
| Motor Dimension | 16×25mm | Weight | 19.5g |
Testing Data:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/w) | Efficiency(oz/w) | Throttle |
| 30FAN | 7.4 | 19.3 | 142.82 | 215 | 7.58 | 1.51 | 0.05 | 100% |
Package Included:
1x QX-Motor 30MM 6 Blades EDF Unit With QF1611-14000KV Brushless Motor
