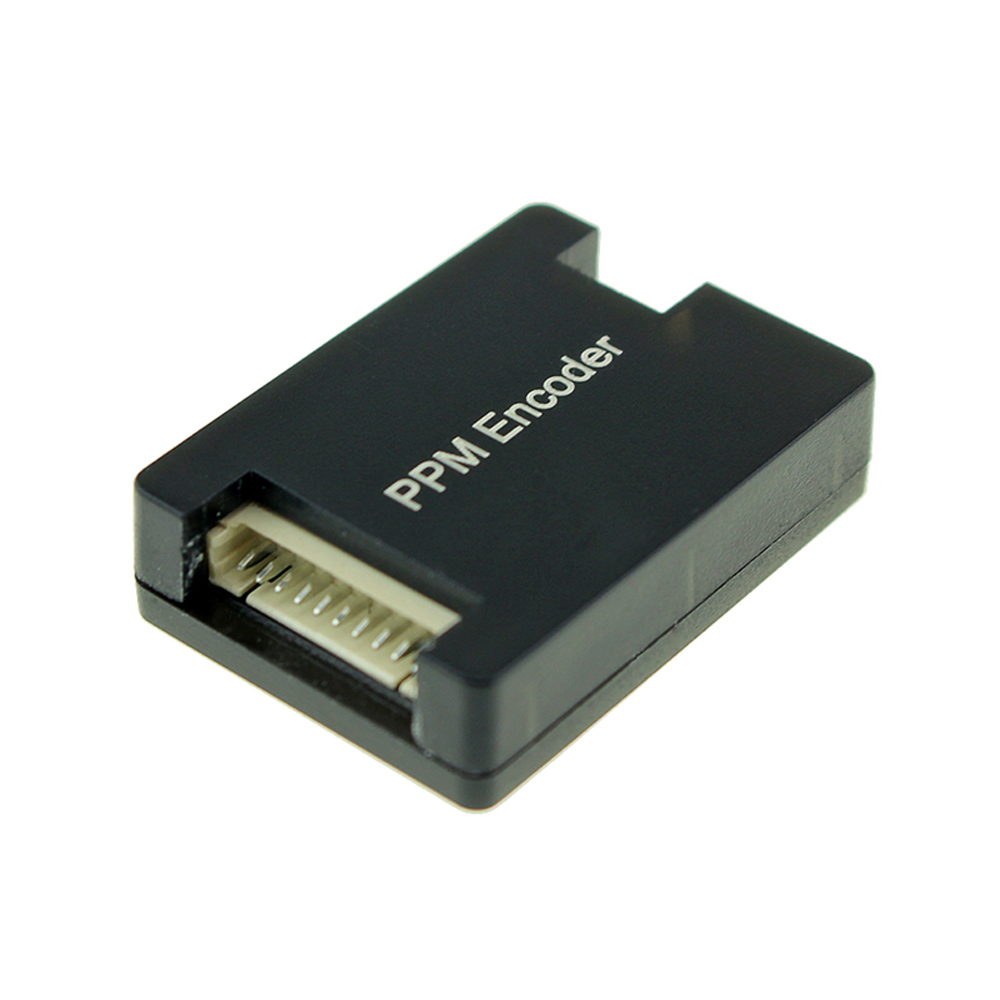

PWM To PPM Encoder Switcher For Pixracer Pixhawk PPZ MK MWC Pirate Flight Controller
The function of the PPM encoder is to encode the multi-channel PWM signal output by the receiver into a PPM composite signal output (up to 8 channels of PWM input) to connect the supported flight controllers in a single line.
In order to save port resources or layout restrictions, some flight controllers only allow PPM signals to be connected, which requires a PPM encoder. The PPM signal can also be used to directly connect the simulator dongle and receiver for wireless simulation training.
Flight controllers such as NAZE32/F3 cannot use the OneShot125 high-speed ESC drive mode using PWM mode. This module can support ultra-high speed drive!
Description:

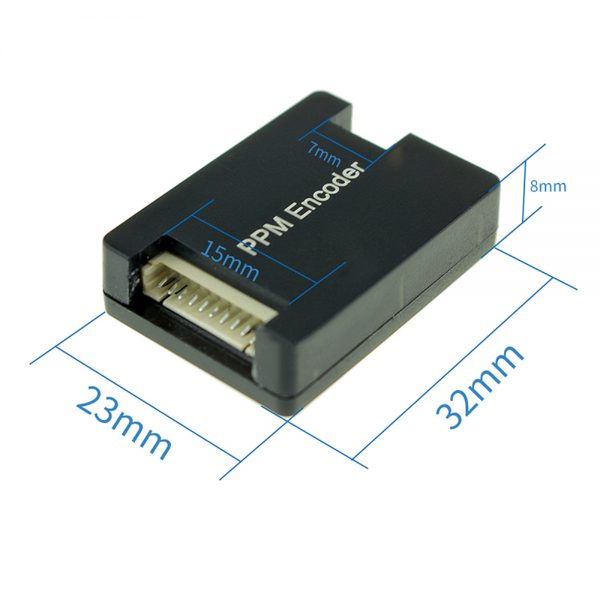

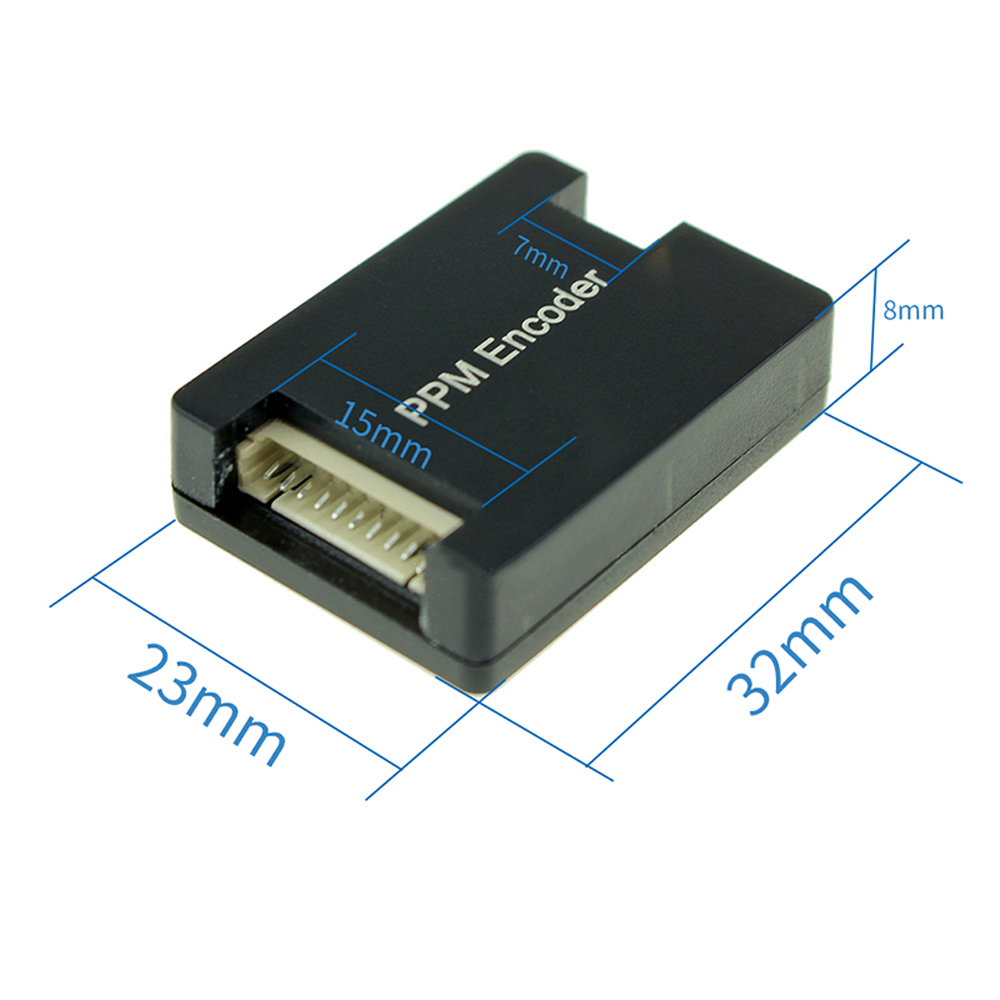

Item name: PWM To PPM Encode Switcher
Usage: for Pixracer Pixhawk PPZ MK MWC Pirate Flight Controller

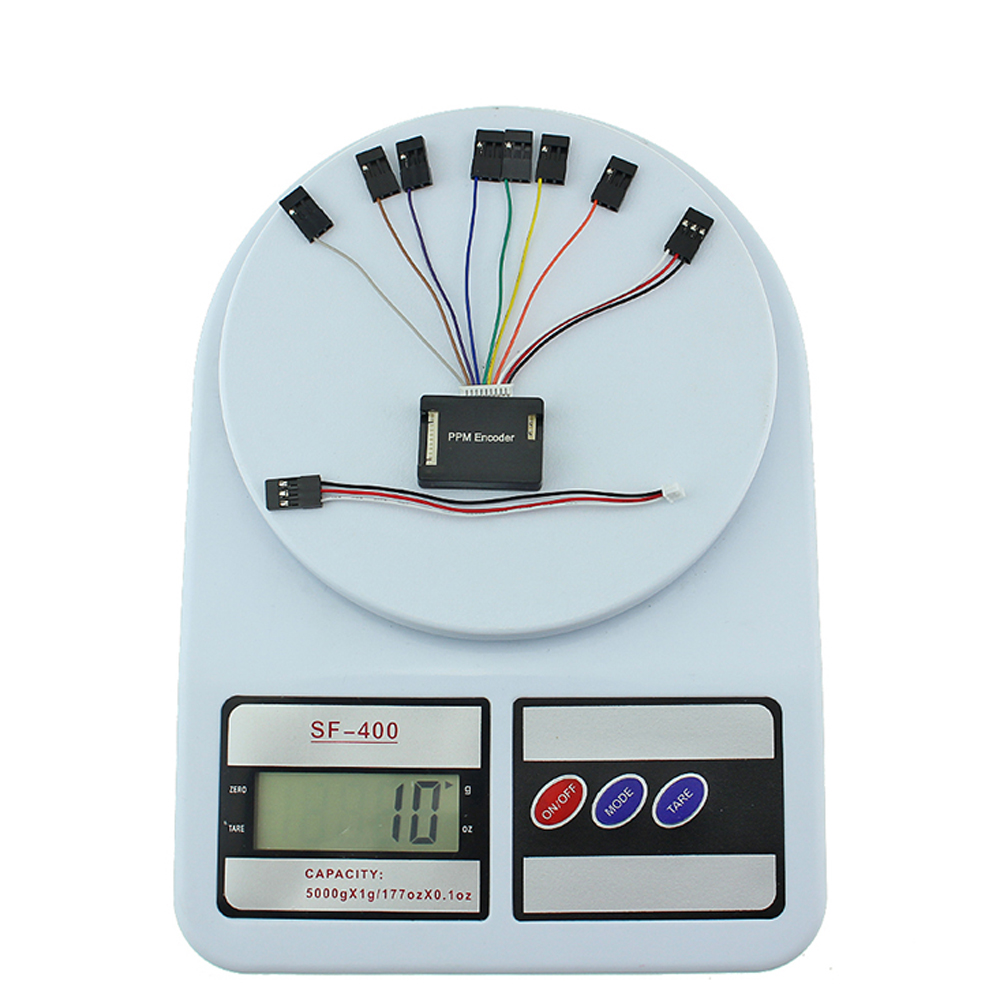

Weight: 9g
Weight: 9g

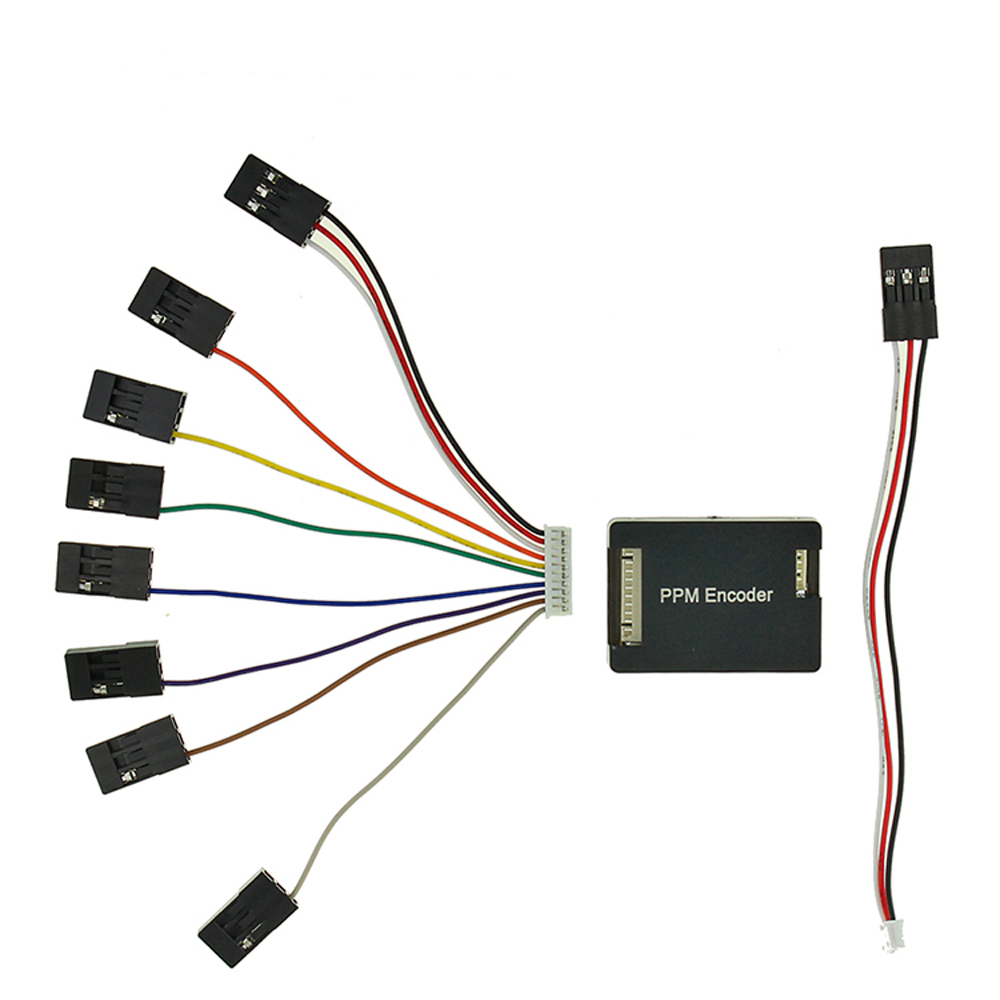

Package included:
1 x PPM Encoder
1 x Contector
