Description
Overview:

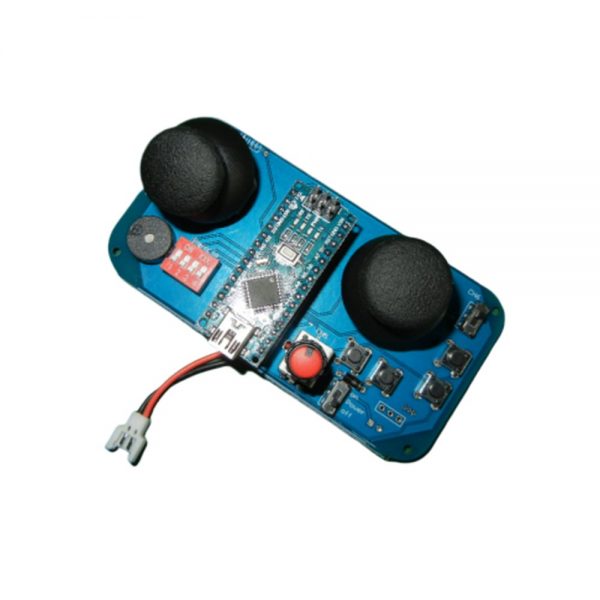

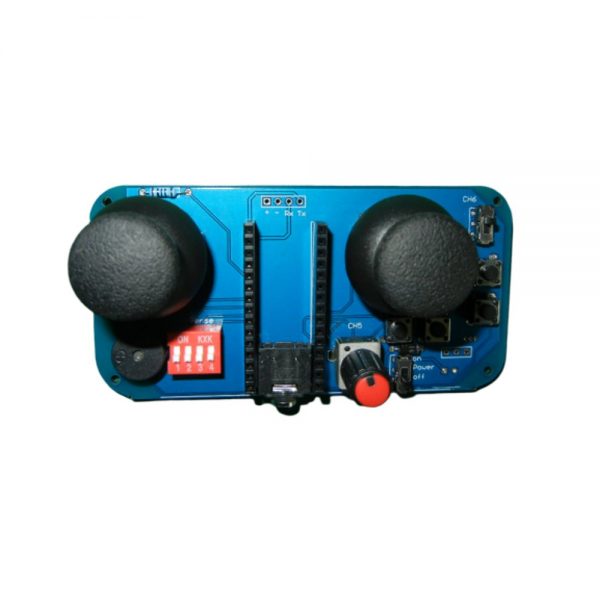

“Payne DIY Remote Control Transmitter” is designed by Payne Pan as for learning and simple DIY. Now it evolves Version 4, V4 based on Arduino Nano, Nano have usb-ttl chip on board , so It is more convenient for uploading firmware, V4 use 1S Li-Po as battery instead of using 4 AAA batteries, and more features are added: "lReset settings", "lCalibrate sticks", "Adjust limits for 1-4 channels".
Payne Open Source RC only output PPM, and it has no RF module, you can use other Tx module or self-made one (such as “Multi Protocol TX” module).
Since it is for study, no license, nor warranty granted.
Open the source in Arduino IDE, chose board "Arduino Pro or Pro min". processor as "ATmega 328p(5v,16M)",then you can compile and upload the firmware. Hope you enjoy it!
Specification:
Brand Name: Payne
Item Name: DIY Remote Control KIT

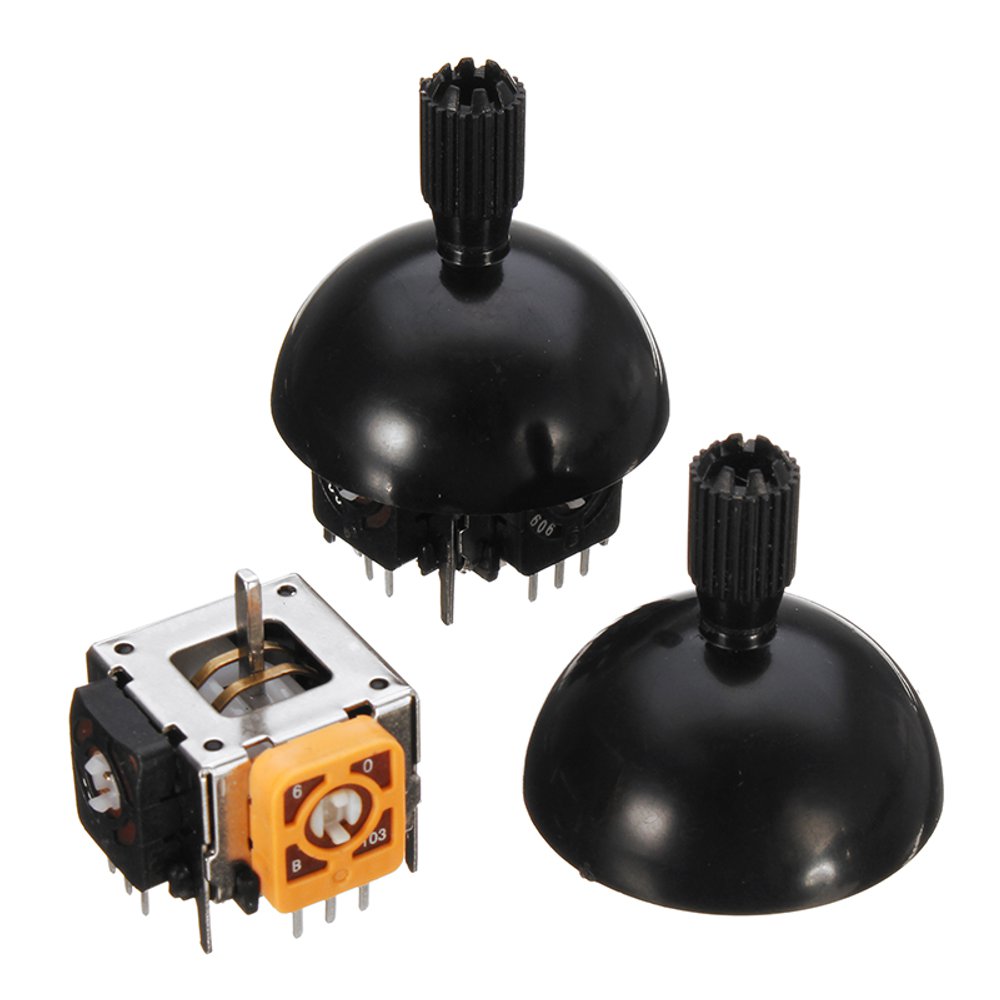

Control Rod: Throttle + Self Centering
Weight: About 50g
Color: Blue
Upgraded Features:

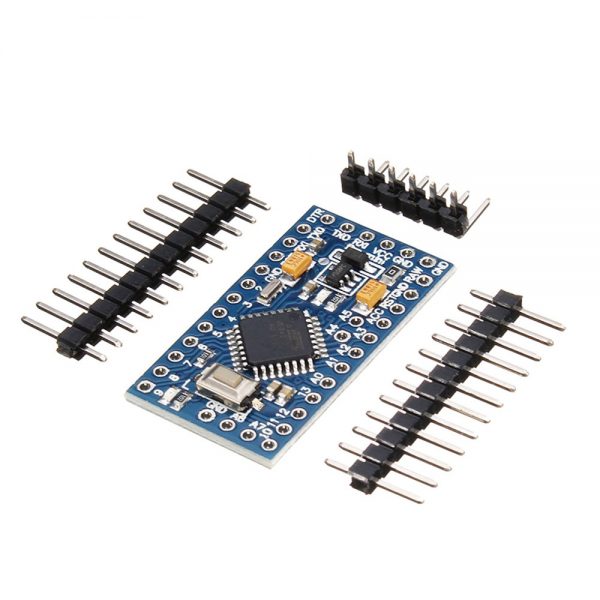

– Nano comes with usb-ttl, the kit contains a computer usb cable (the old version Pro-mini has to buy the downloader separately).
– Program improvement: Add joystick calibration function; Increase 1, 2, 3 channel ratio setting function; Full reset setting function.

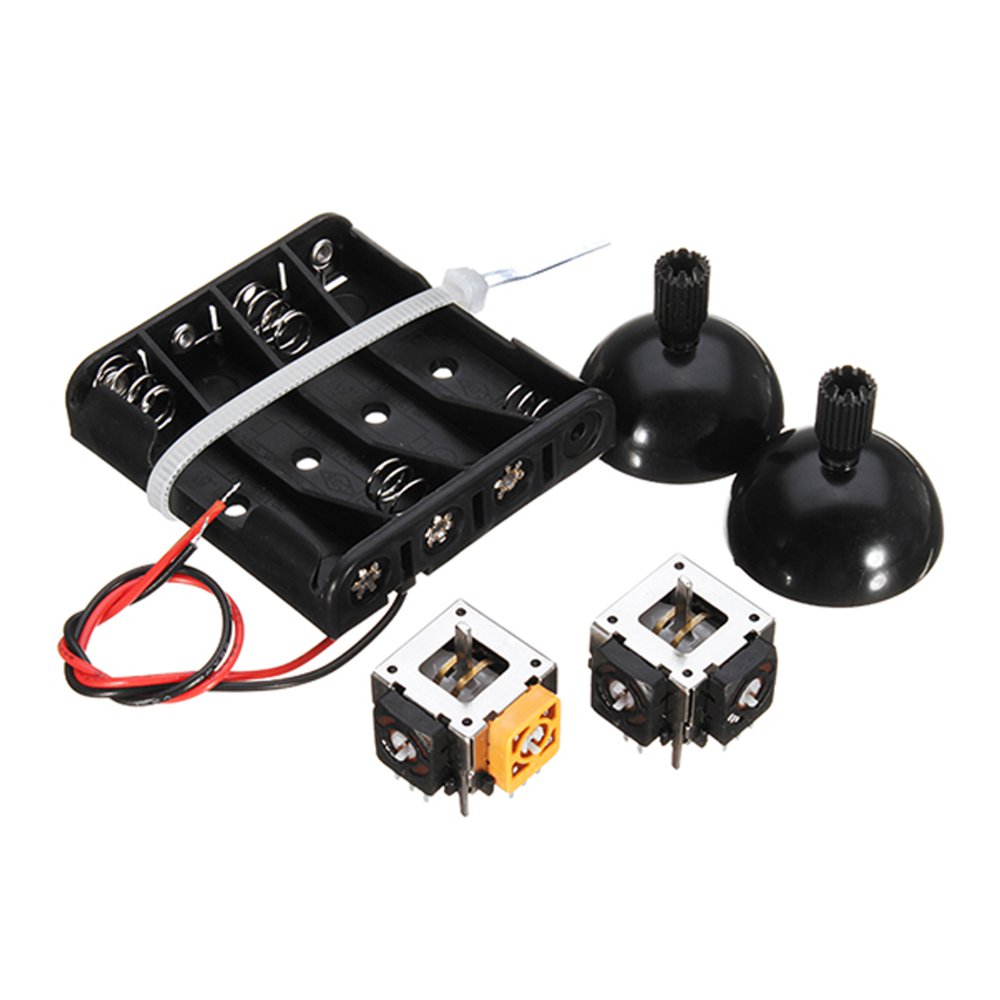

– Comes with 1S lithium battery cable instead of the battery box.
Note:
This transmitter does not support mix control.

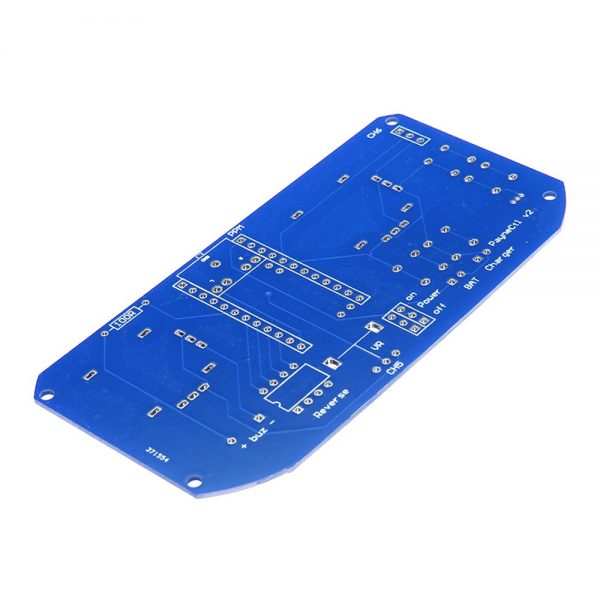

This item is unassembled,you need to DIY.
Batteries are not included.
Welding Steps and Source, Click Here
English Manual, Click Here
Package Included:

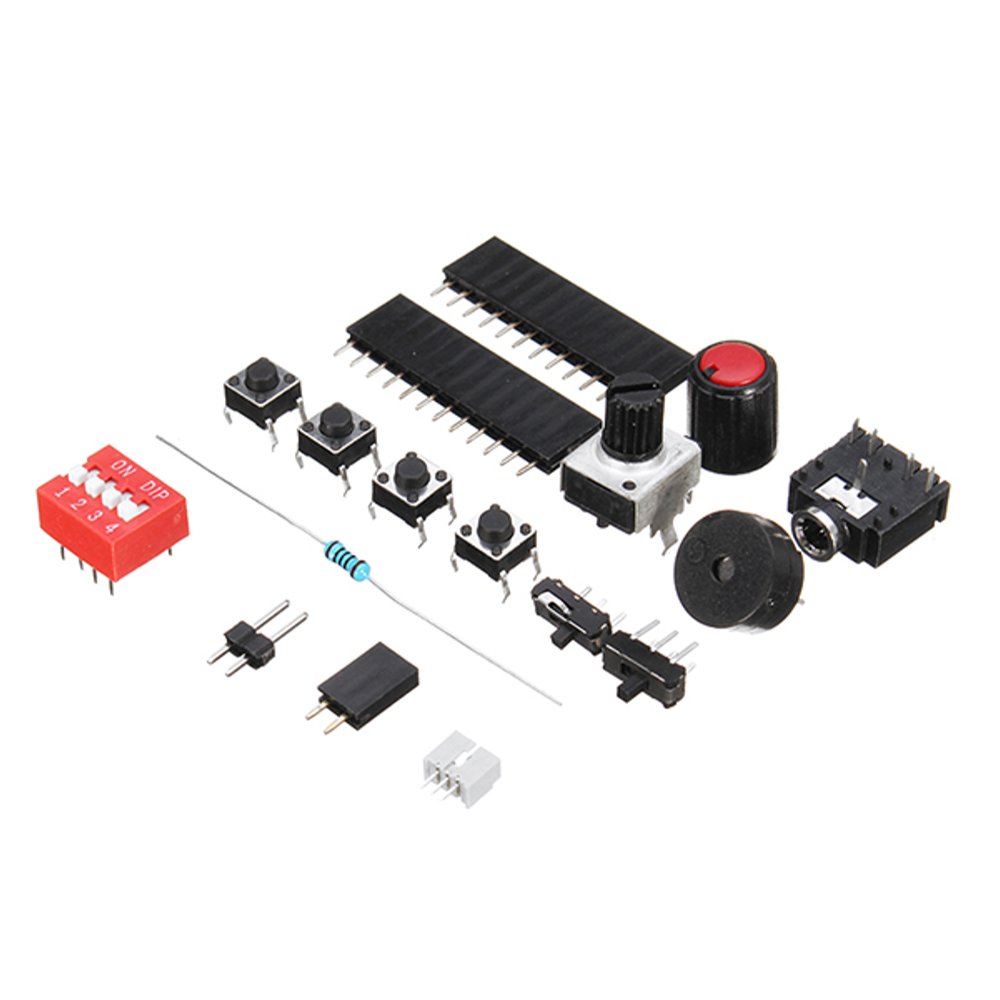

1x DIY Remote Control KIT (unassembled)
