Description
Specification:
Video format: NTSC / PAL
Input voltage: 7V ~ 24V
Power consumption: 12V/260mA@600mW
Volume: 36mm × 36mm × 5mm
Mounting hole position: 30.5*30.5mm
Weight: 6g (without antenna)
Output power @ transmission distance: 0.5km@25mW, 1km@200mW, 2km@600mW
Transmission power: 0mW/25mW/100mW/200mW/400mW/600mW switchable
Frequency: 48CH and has 8 competition frequency points in E group and F group
Features:
-Stable output power and long transmission distance
-Transmit power 6-speed switching
-Output 48 frequency points, and have 8 competition frequency points in E group and F group.
-Fast frequency lock, boot does not interfere with companion
-Self-contained output power self-test function
-Full-format video format
-Wide input voltage range and low power consumption
-Small size and light weight
-Mounting hole completely corresponds to CC3D NAZE32 F3 F4 flight control
Package included:

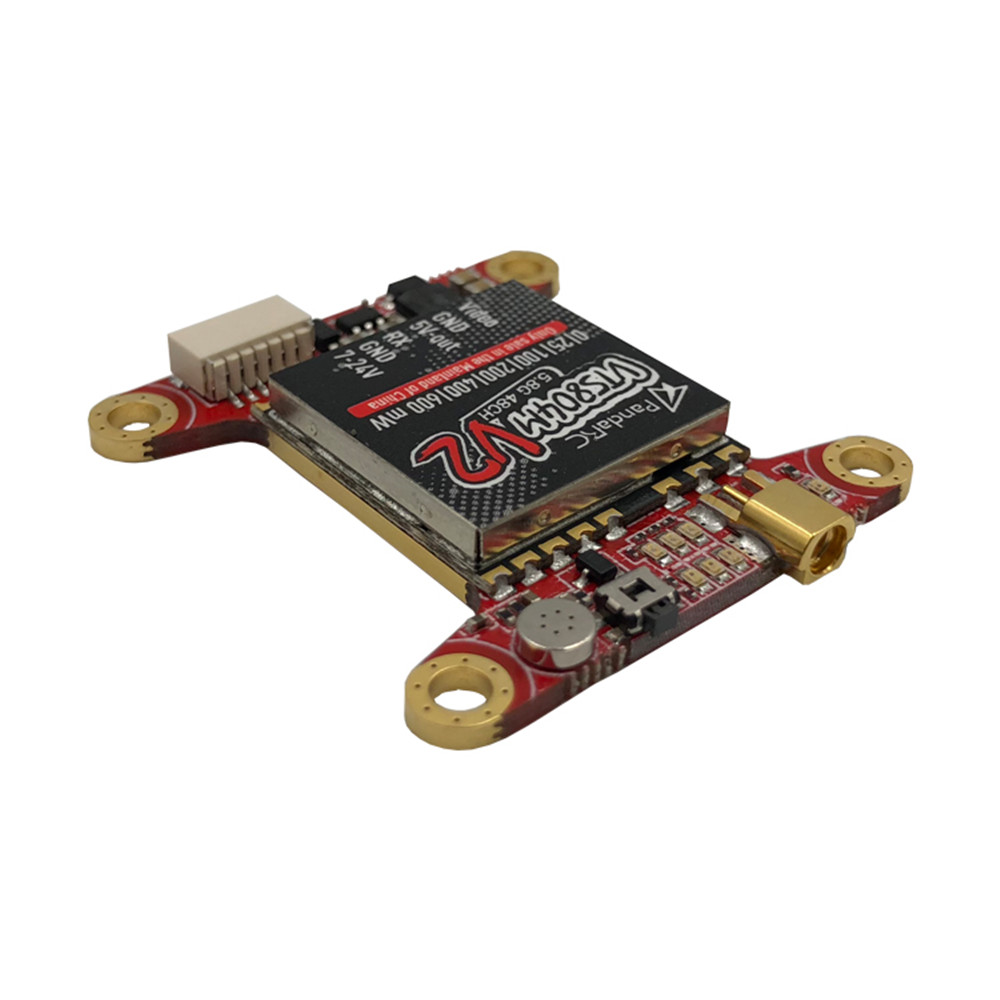

1 x PandaRC VT5804M V2 5.8G 0/25/100/200/400/600mW Switchable FPV Transmitter Support OSD w/ Audio
