Description
Description:

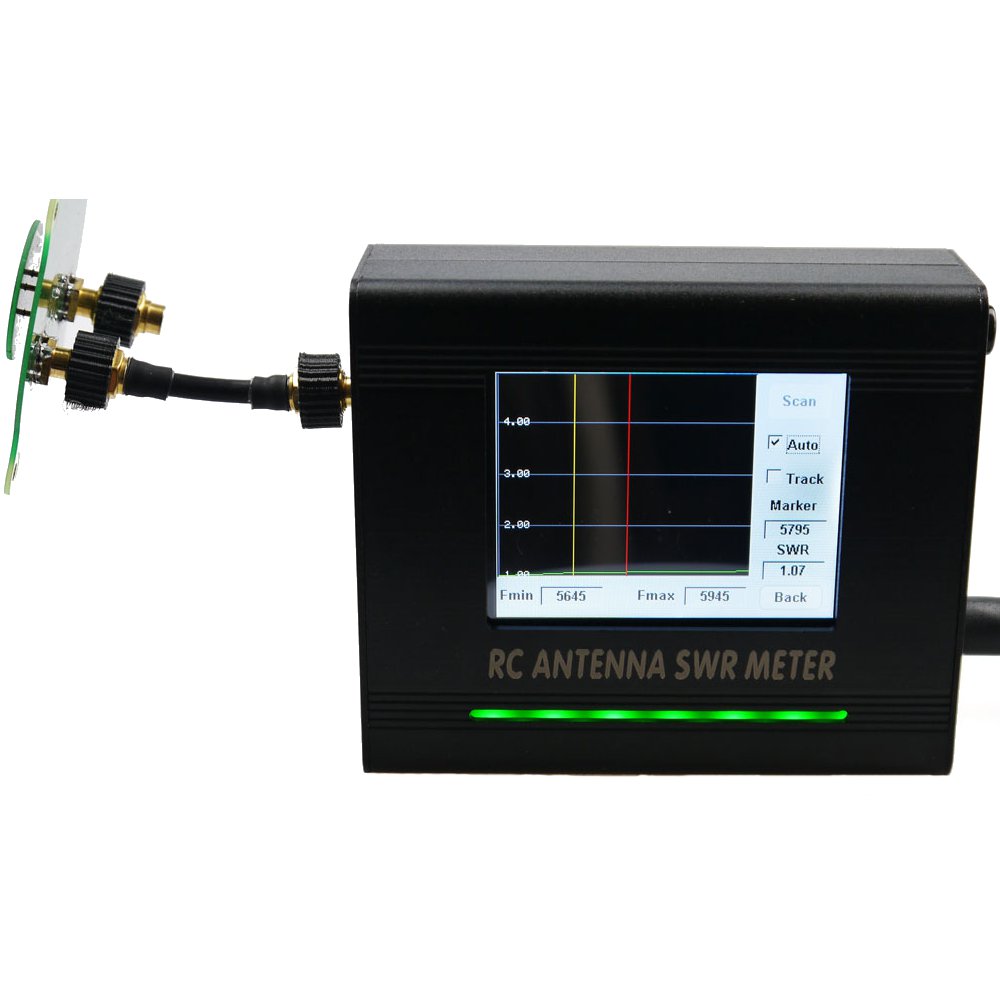

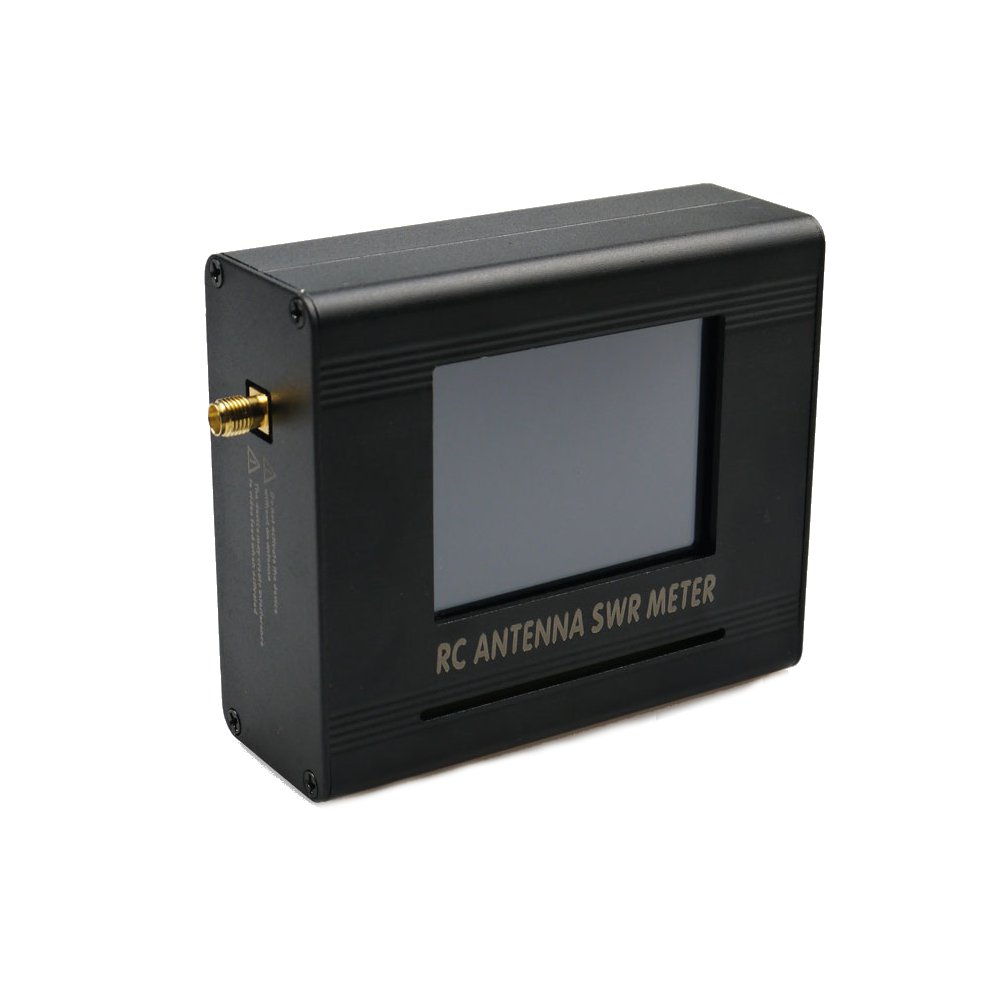

This "RC Hobby" grade SWR METER, measures the forward & reflected waves to determine the working efficiency of an antenna.
The meter can be used to run a full scan from 5.645Ghz to 5.945Ghz to indicate the working efficiency (SWR Value) and Center Frequency of an antenna. An optimized antenna will significantly expand the antenna working range and minimize signal loss in complex terrain.When the SWR value is 1.0, means high frequency energy has been 100% transmitted, without energy reflection loss.
Specifications:
Brand Name: OWLRC
Item Name: RC Antenna SWR Meter
Frequency Range: 5.645Ghz to 5.945Ghz
Power Input: DC 12V or 3S Li-Po only
Screen: TFT 2.8" Touch Screen
Antenna Connector: SMA Female
Internal Signal Transmitter: 5.645Ghz to 5.945Ghz, 200mw
English Manual, Click Here
Note: Antenna is not included.
1x OWLRC RC Antenna SWR Meter
1x DC 5.5 x 2.3 mm To XT60 Adaptor
Package Included:
1x OWLRC RC Antenna SWR Meter
1x DC 5.5 x 2.3 mm To XT60 Adaptor
1x Quick Guide
