Description

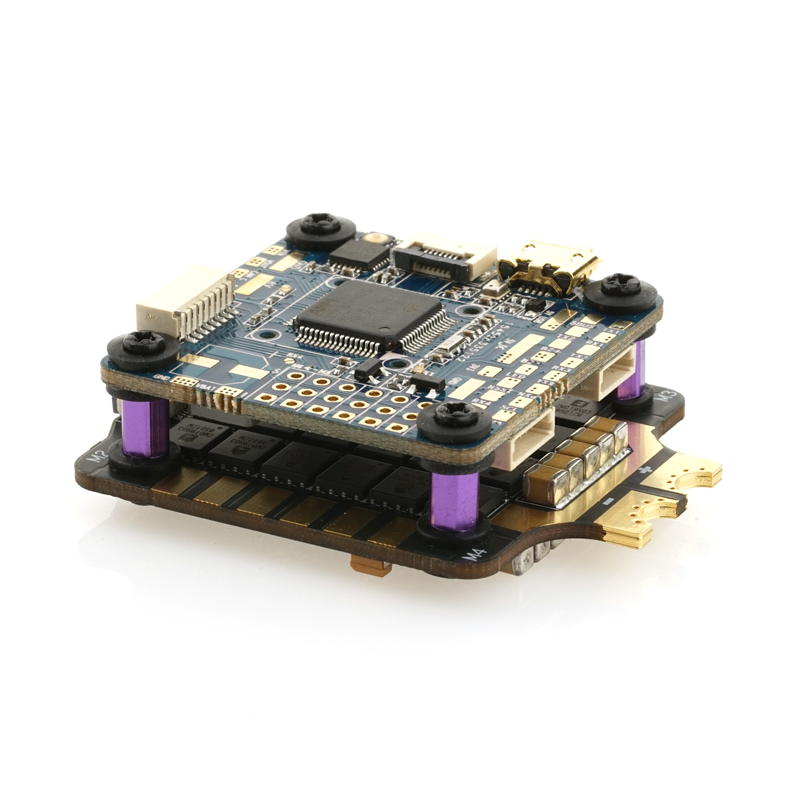

Original Airbot OMNIBUS F4 V6 Flight Controller & Typhoon32 V2.1 35A Blheli_32 3-6S Brushless ESC
Specification:
Flight Controller
OMNIBUS F4's upgrade version, using F405 and new target, with 5x UARTs now.
classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer and SD Card supports. OSD Configuration has been incl. in Betaflight GUI. FC incl. 5V1A BEC on board(3-6s) and 1x 8V BEC for Camera MPU6000 at SPI bus, Ext, SPI for damped gyro
New version with 8PIN Sh1.0 Socket, could be much easier connect to our 4in1 ESC by one cable.On v5, we added jumpers for Current source select, please read the manual and set the jumper before using the FC.
STM32 F405 MCU, Runs Betaflight 3.0 firmware
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
Only 36x36mm, mount holes 30.5×30.5mm
INCL. BARO BMP280
SPI Sensor MPU6000
Flash

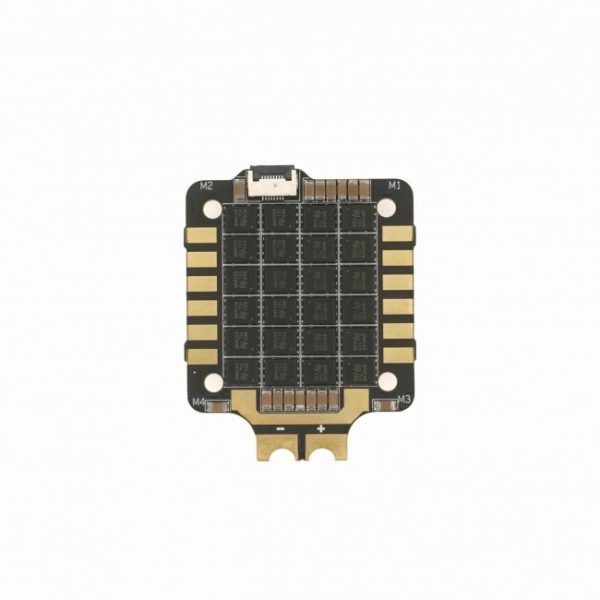

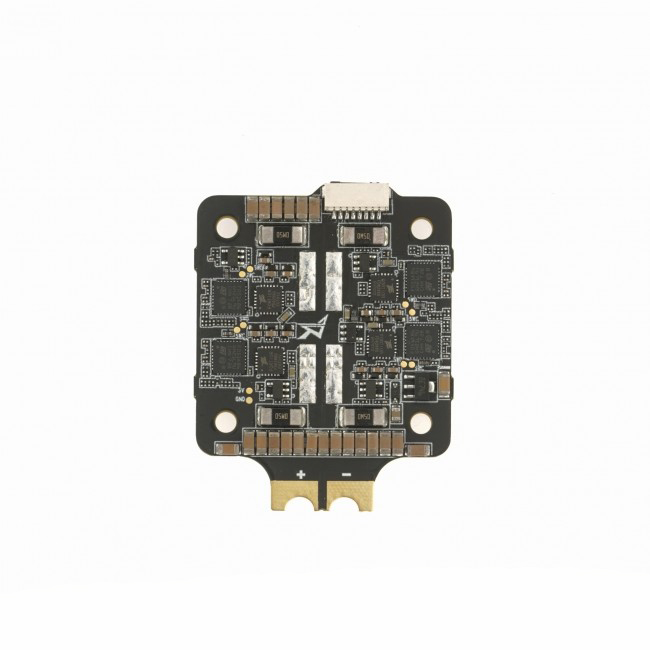

Brushless ESC
32bit ESC with BLHELI32 firmware
Supports 3-6S lipo input
4PWM input
Voltage output (VBAT)
Supports Oneshot / Multishot / Dshot PWM
Mounting holes 30.5×30.5mm
Supports damped light
NO BEC
Supports DSHOT 1200, BLHELI32 firmware.
Added more CAPS to reduce power noise.
1 x Flight Cotnroller
1 x Brushless ESC
1 x 3CM 8pin cable
1 x 4CM FPC cable
