Description

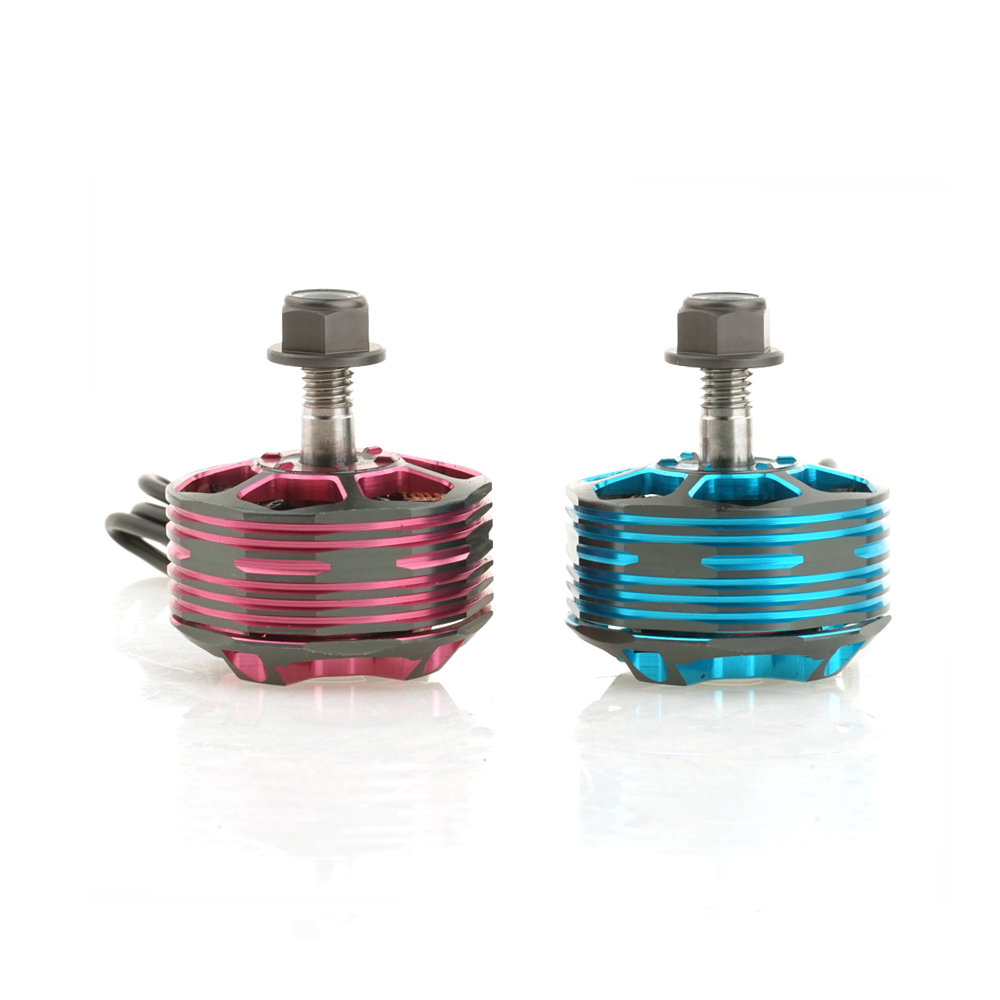

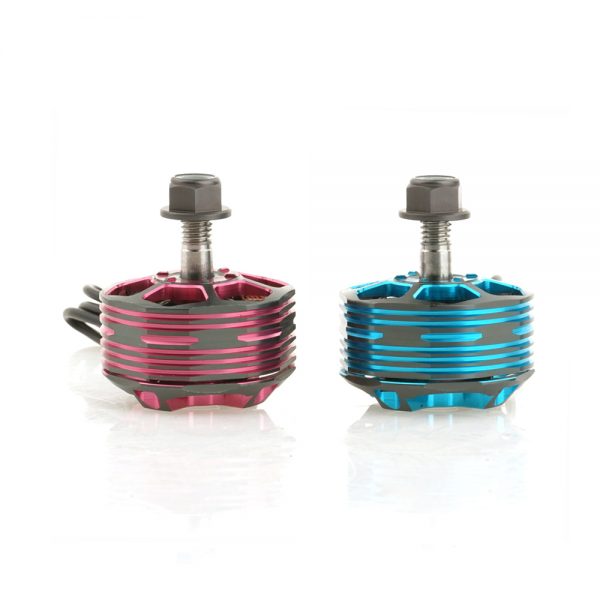

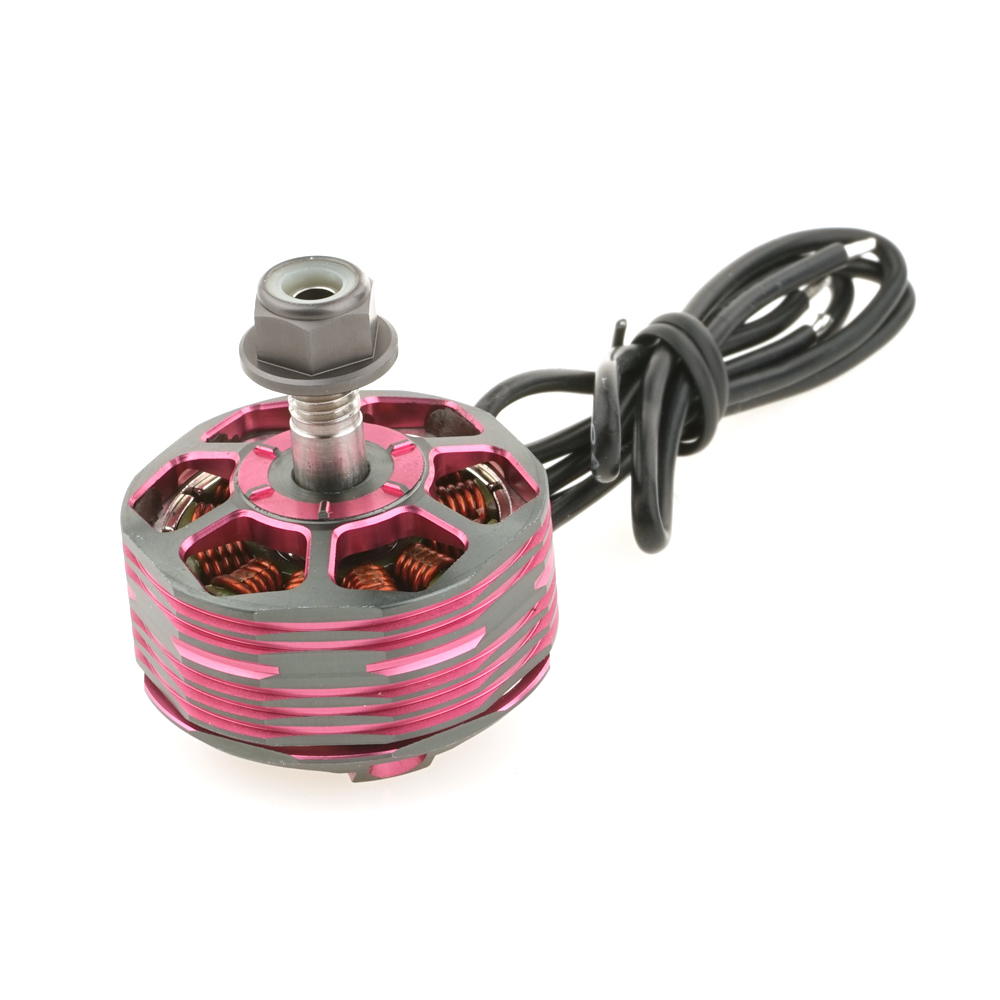

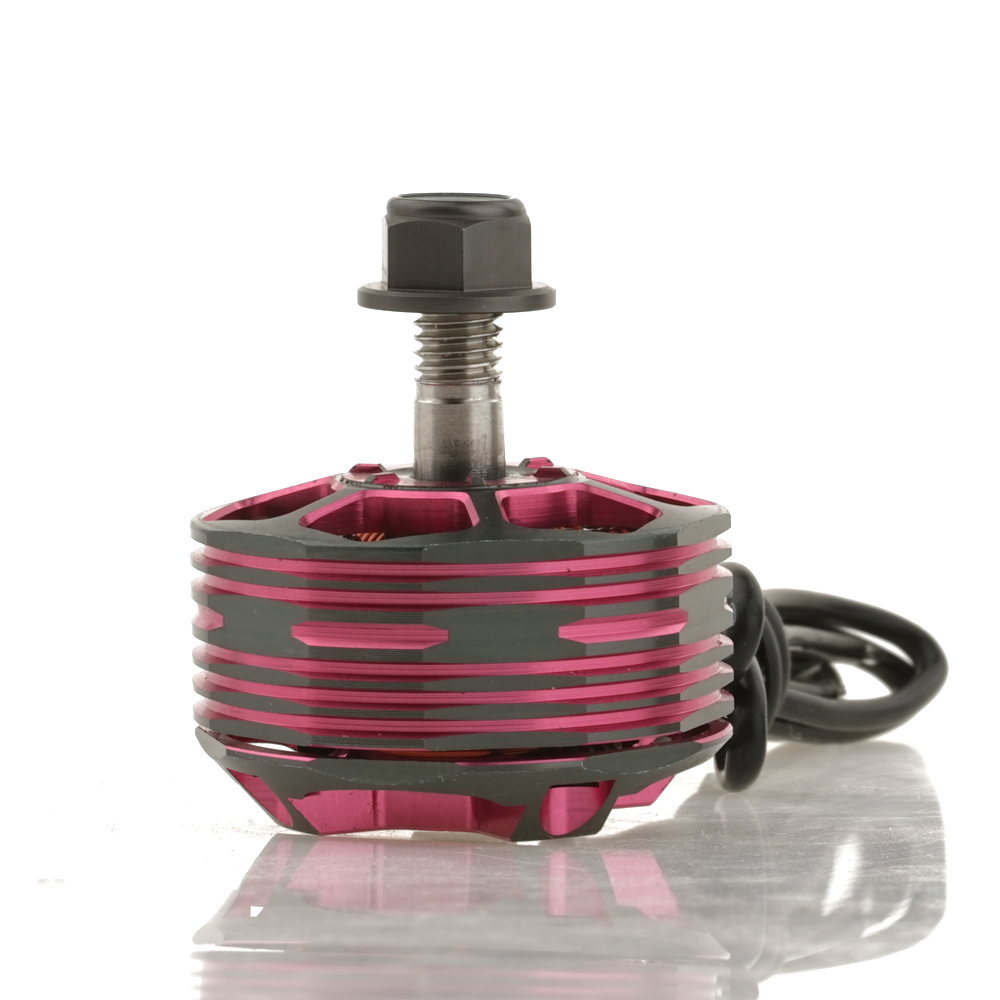

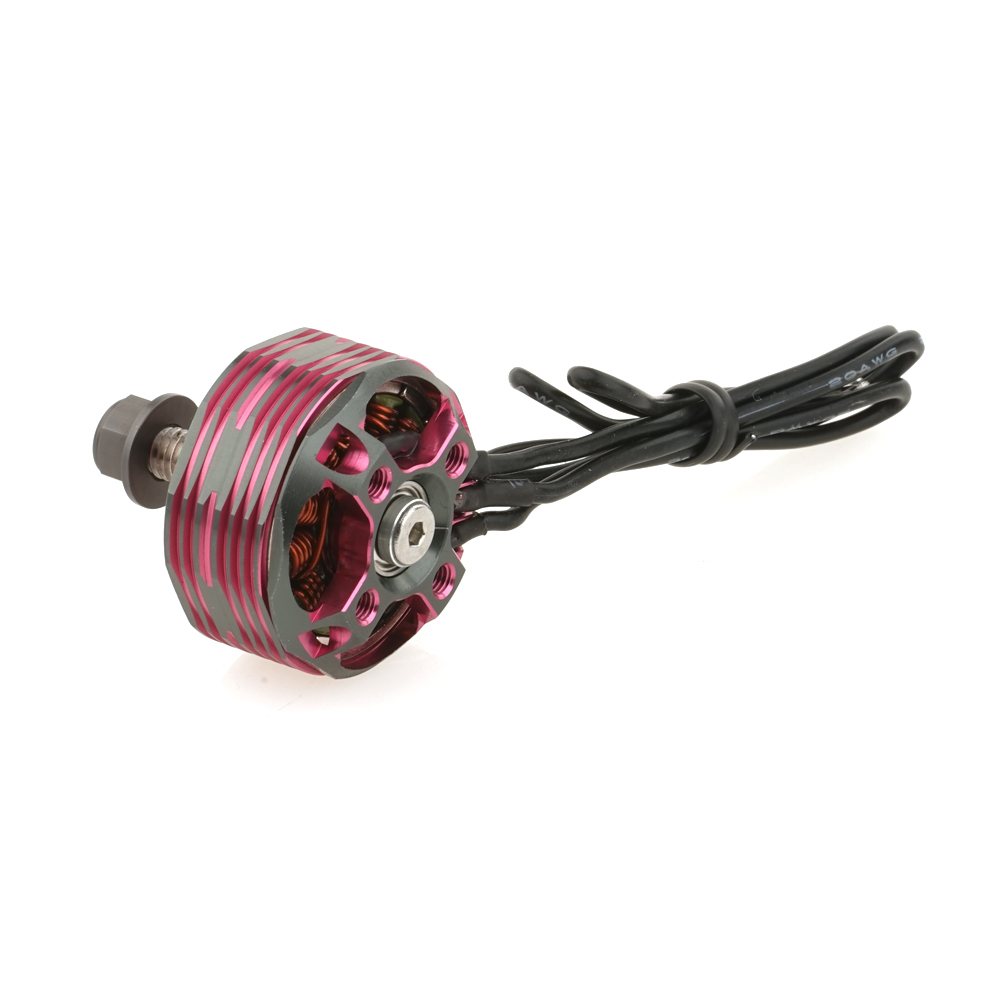

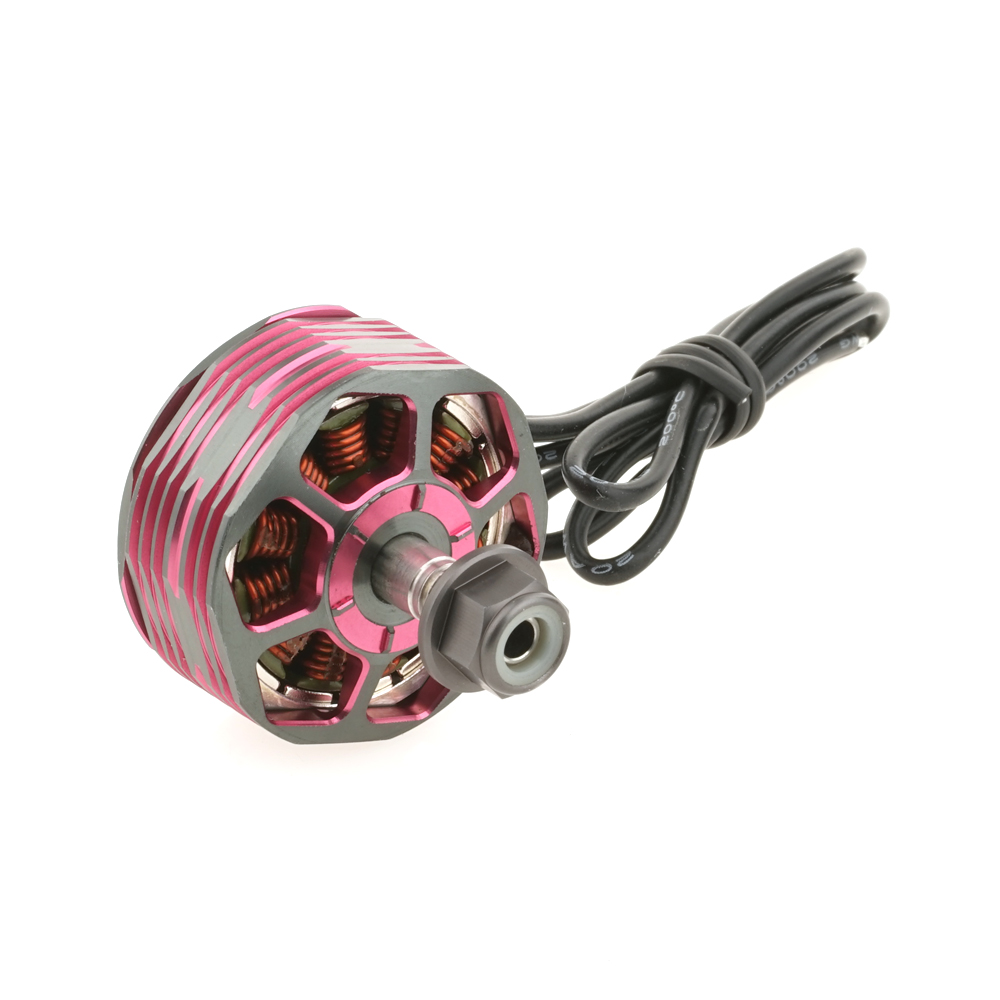

Original Airbot MH2208 2208 1800KV 5-6S / 2700KV 4-5S Brushless Motor for RC Drone FPV Racing
Specification:
Brand name: Airbot
Item name: MH2208 Brushless Motor
KV: 1800/2700
Configu-ration: 12N14P
Stator Diatmeter: 22mm
Stator Length: 8mm
Shaft Diameter: 4mm (Hollow)
Motor Dimension(Dia.Len): 29.2×32.15mm
Weight: 36.5g (3cm Wire)
Idle current(10)@10V(A): 1.1(1800KV) 2.1(2700KV)
No.of Cells(Lipo): 5~6S(1800KV) 4~5S(2700KV)
Max Continous Power(W)180S: 1000 (1800KV)
Max Continous Power(W)15S: 1000 (2700KV)
Internal Resistance: 60mΩ (1800KV)
Internal Resistance: 38mΩ (2700KV)
Max Current(30S): 40A(1800KV)
Max Current(15S): 45A
Max. Efficiency Current: (3-6A)>85%
Package Included:
1 x MH2208 Brushless Motor
