Original AIRBOT F7 Flight Controller OSD 6xUARTs & Airport Fuling32 50A 3-6s Blheli_32 4 In 1 Brushless ESC 30.5×30.5mm

Description

Original AIRBOT F7 Flight Controller OSD 6xUARTs & Airport Fuling32 50A 3-6s Blheli_32 4 In 1 Brushless ESC 30.5×30.5mm

Specification:
Brand name: AIRBOT
Item name: F7 Flight Controller  & Airport Fuling32 50A  ESC

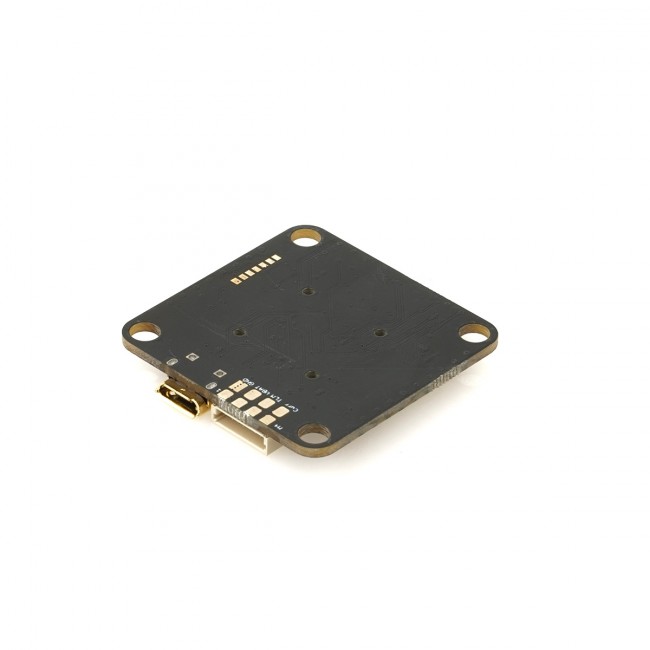

F7 Flight Controller :
The Airbot F7 flight controller uses the ICM20602 over SPI for
ultimat e flight performance. Also onboard is an AB7456 OSD chip
for fully integrated BetaFlight OSD support. Other features of the
Airbot F7 include: 3-6S direct LiPo input, 6x hardware UARTs, 1x
external I2C, 1x external SPI, camera control, onboard flash, a
micro RX connector, a 4-in-1 ESC connector, and a low profil e for
easy installs.

STM32 F722 MCU, Runs Betaflight firmware
ICM Gyro Over SPI Bus
30.5*30.5 mm Mounting holes
Supports Lipo direct plugin (3-6S)
Supports 5V 2A BEC output (Buck)
STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
More UARTs (6xUARTs)
Supports camera control function
Supports ext. Gyro box
Onboard 128Mbit(16MB) flash for balckbox

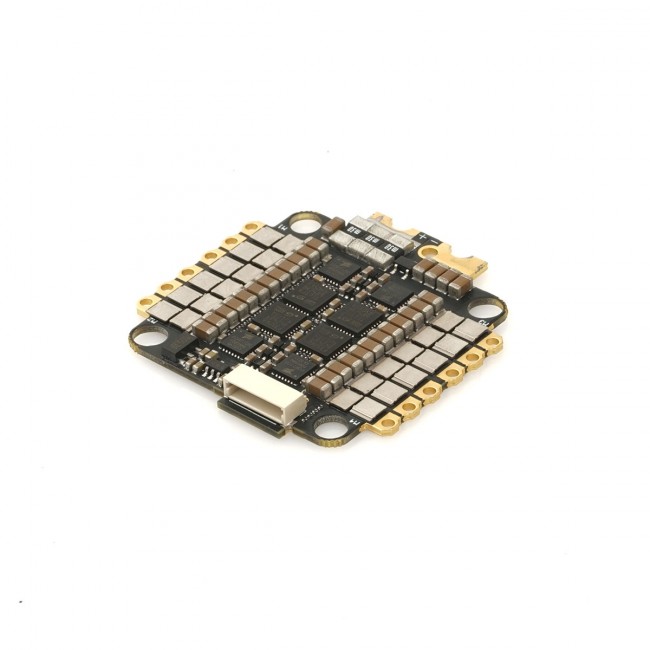

Airport Fuling32 50A 3-6s Blheli_32 Brushless ESC

New BLHELI32 ESC with F3 MCU, give more smooth control and faster responding speed.
Supports up to 55A burst and 50A continued.

32bit ESC with BLHELI32 firmware
Supports 3-6S lipo input
PWM input, TLM supported
Voltage output (VBAT)
NO BEC
Supports oneshot / Multishot / Dshot PWM
Mounting holes 30.5×30.5mm
Supports damped light
F3 MCU, runs double faster than F051
Extra Cap needed for high current or 6s usage
Mounting holes 30.5×30.5mm, 4mm(M3 when you put grommets)
Size: 30x36mm
Weight 7.8
