Description
Description :

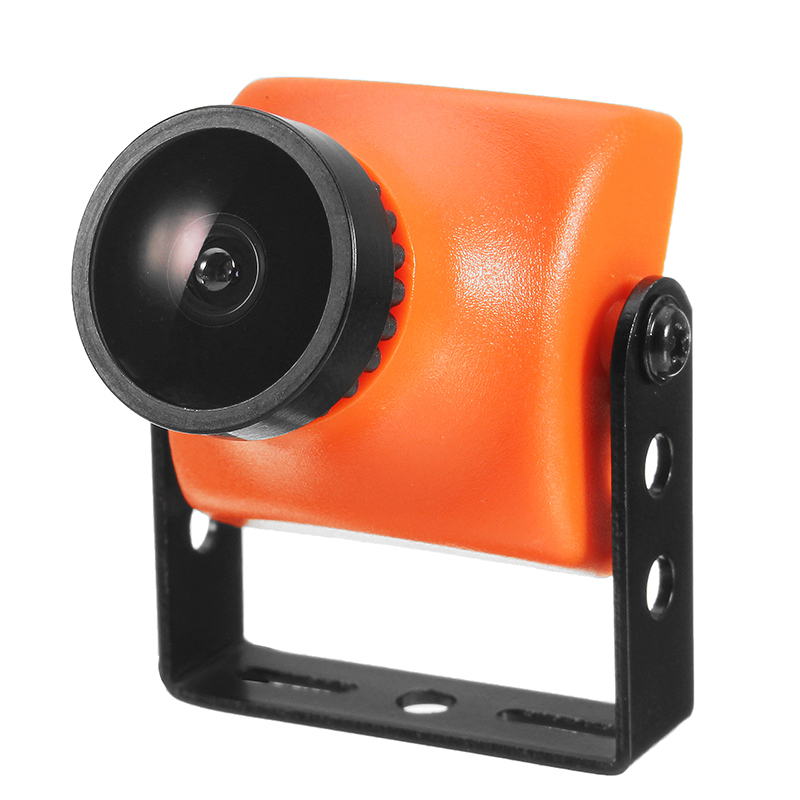

Item Name : 1200TVL Mini Camera
Size : 25mm x 25mm
Weight : 9.5g
Format : PAL/NTSC Optional
PAL: 1920H×1080V(1MP)
NTSC: 1020H×1920V (1MP)
Horizontal Resolution : 1000TVL
Video Output : 1.0Vp-p/75Ω
AGC : 0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB
Min. illumination : 0.005
Min. illumination : 0.005
WB : ON/OFF
Exposure Type: electronic exposure
Electronic Shutter : 1/50(1/60) – 1/100000 second
Gamma Correction : 0.45/1.0
Synchronization Mode : inter-sync

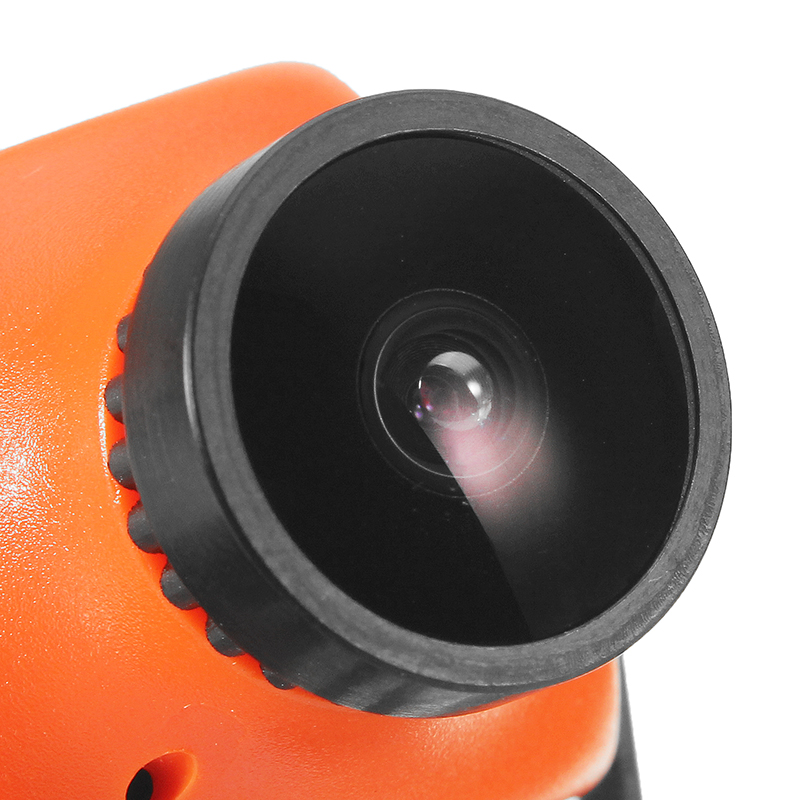

Lens : 2.5mm 130°/2.8mm 120° optional
Specification :
Working Voltage : DC5-12V(wide voltage , measured 5-13V)
Working Current : 70mA(ow power consumption)
Working Temp. : -20℃–60℃
Wetness: 0% ~ 98%
Package Included :
1 x 1200TVL Mini Camera

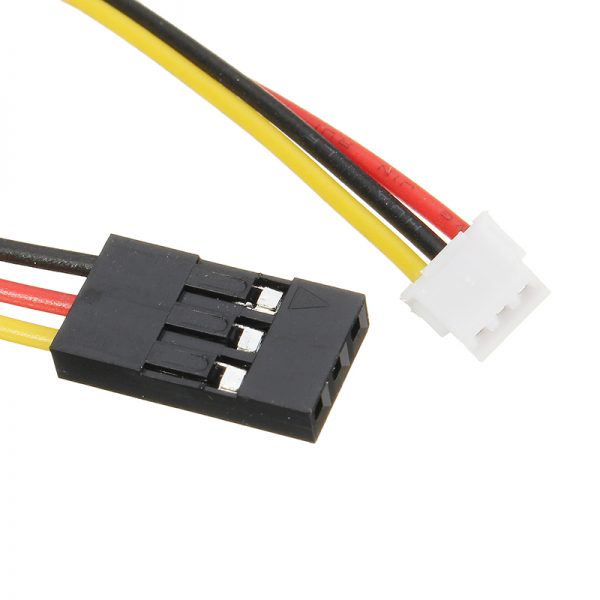

1 x Cable
,
,
,
,
