Description

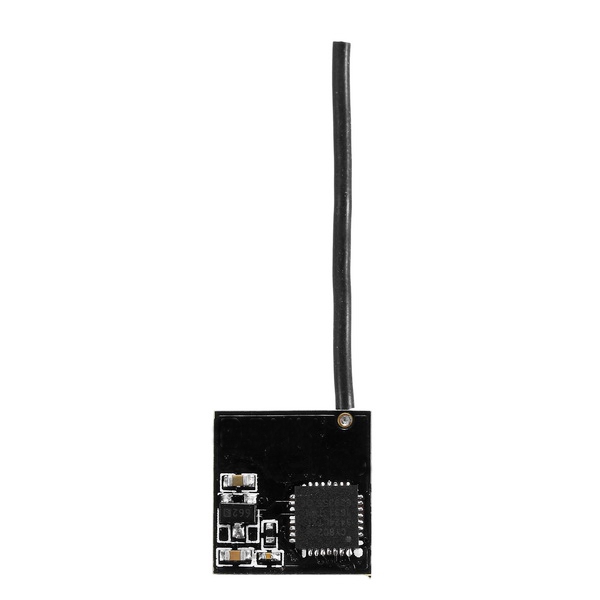

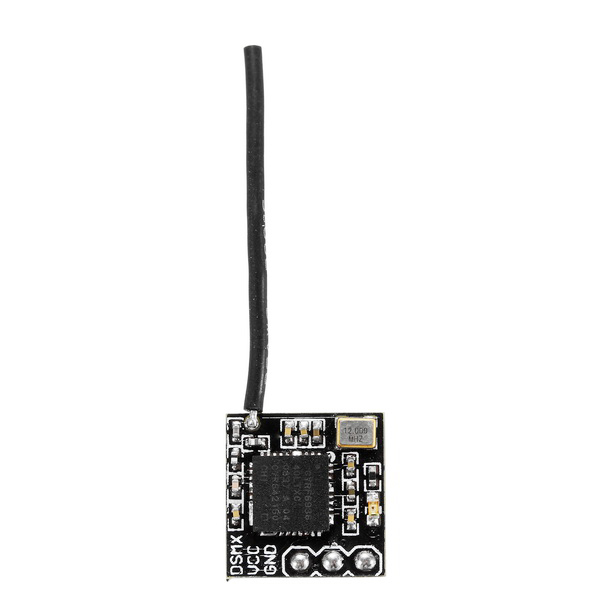

Only 0.8g 2.4G Compatible DSM2 DSMX Receiver for JR SPECTRUM Transmitter
Specification:
Item name: DSM2 DSMX receiver
Voltage: 3.3-5V
Modulation: DSM2/DSMX (Automatic search mode)
Channel: 2.4GHz, 8CH
Control range: 500m+
Dimension: 12*13mm
Weight: about 0.8g
Features:
-compatible with JR and SPECTRUM DSM2/DSMX transmitter or Launch module
-very light, about 0.8g(included the antenna)
-compatible with NAZA32 , F3, F4, etc.
Binding procedure:
Notes: when binding, don't connect the battery.
I. The receiver is used for Cleanflight and Betaflight firmware, input in the CLI command line.
II. "set spektrum_sat_bind=9", pressing enter key
III. then input "save", pressing enter key
IV. Disconnect the USB cable, re-power to the flight control. Receiver LED quick flash then orange LED keep light it means bind is in the waiting mode.
V. opening the transmitter, enter binding procedure. when orange LED keep light it means bind succeeded, otherwise, it means no signal.
Package included:
1* receiver
