Description
Note:
1.This product will have some adjustments and improvements.The above pictures are for reference only, please prevail in kind.
2.Please do not give too much pressure when you put the plug out of the port. We do not accept the port problem.
White version
NOTE: This item have two version and they will have different package.
Old version:
New Version
product advantages:
-Improvencents on v2.4.5(added the second PMEG2005CT and 350ma ResettableFuse)
– strict accordance with PX4 2.4.6 Schematic
– Redeveloped and optimized circuit without changing any components
– Build in certificate and could use Official MissionPlanner and ECLIPSE for firmware upgrade without clone prompt
-We supply the bootloader in the SD card in case of emergency
-Optimized original case with Polyester cabonate and white transparent black available
Key Features:
– 168 MHz / 252 MIPS Cortex-M4F

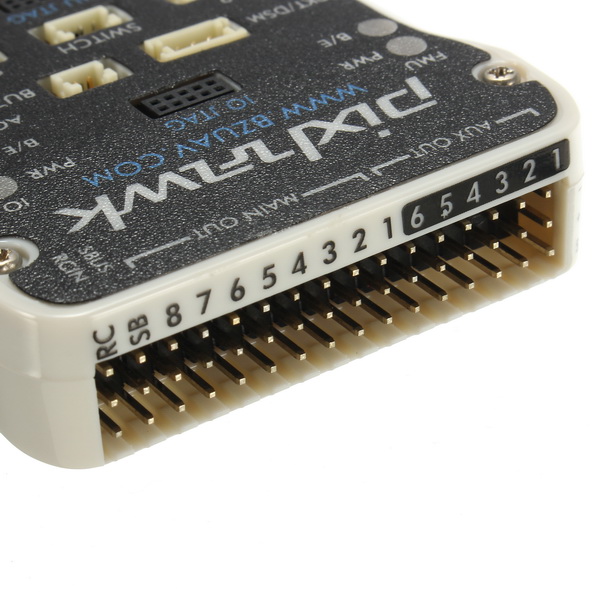

– 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
– Abundant connectivity options for additional peripherals (UART, I2C, CAN)
– Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
– Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
– Redundant power supply inputs and automatic failover
– External safety switch
– Multicolor LED main visual indicator
– High-power, multi-tone piezo audio indicator
– microSD card for high-rate logging over extended periods of time
Specifications:
Processor
– 32bit STM32F427 Cortex M4 core with FPU
– 168 MHz
– 256 KB RAM
– 2 MB Flash
– 32 bit STM32F103 failsafe co-processor
Sensors
– ST Micro L3GD20 gyroscope
– ST Micro LSM303D 14 bit accelerometer / magnetometer
– MEAS MS5611 barometer
-InvenSence MPU6000 accelerometer/ gyroscope

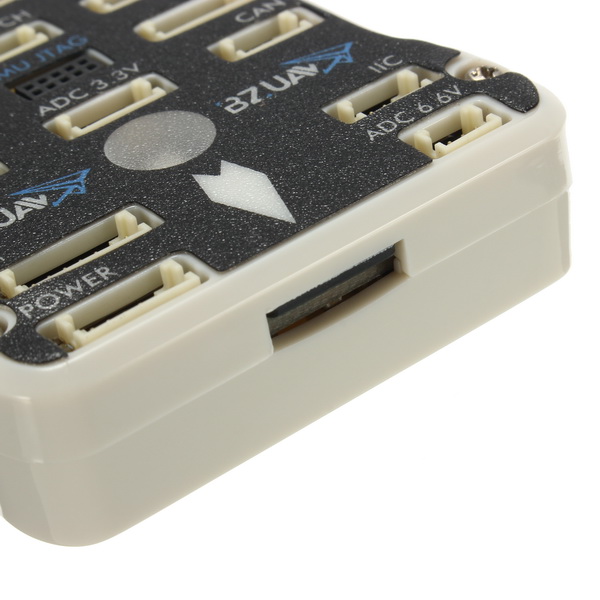

Interfaces
– 5x UART (serial ports), one high-power capable, 2x with HW flow control
– 2x CAN (one with internal 3.3V transceiver, one on expansion connector)
– Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
– Futaba S.BUS® compatible input and output
– PPM sum signal input
– RSSI (PWM or voltage) input
– I2C
– SPI
– 3.3 and 6.6V ADC inputs
– Internal microUSB port and external microUSB port extension
Power System and Protection
– Ideal diode controller with automatic failover
– Servo rail high-power (max. 10V) and high-current (10A+) ready
– All peripheral outputs over-current protected, all inputs ESD protected
Package Included:

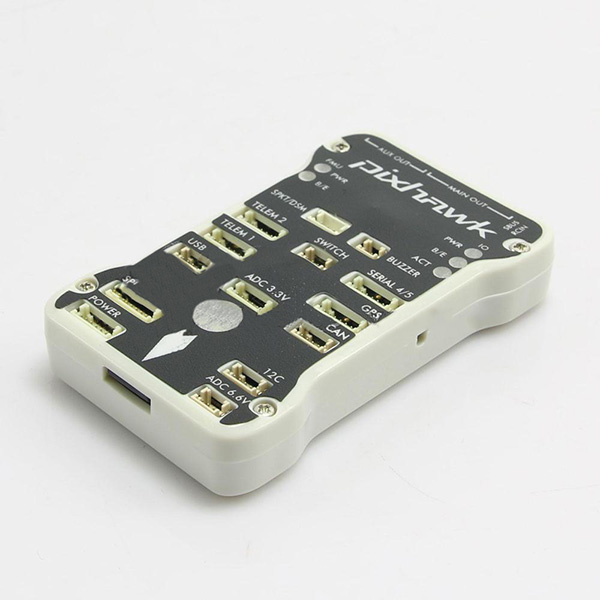

– PX4 V2.4.6 Flight board

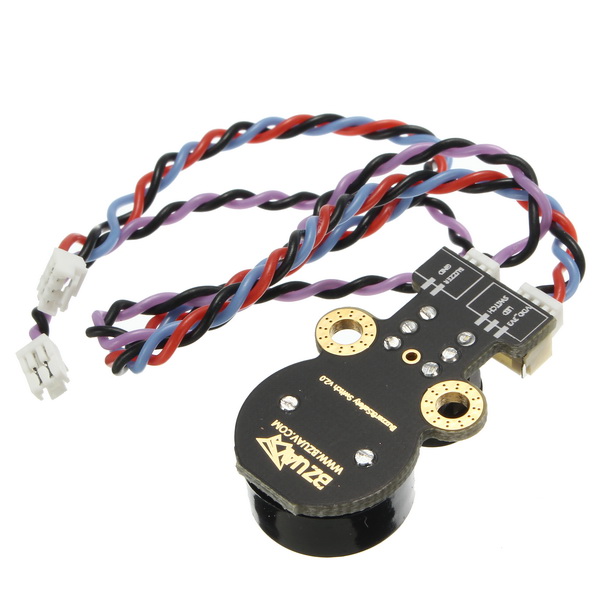

– Teflon safety switch
– Buzzer
– Original cover
