Description

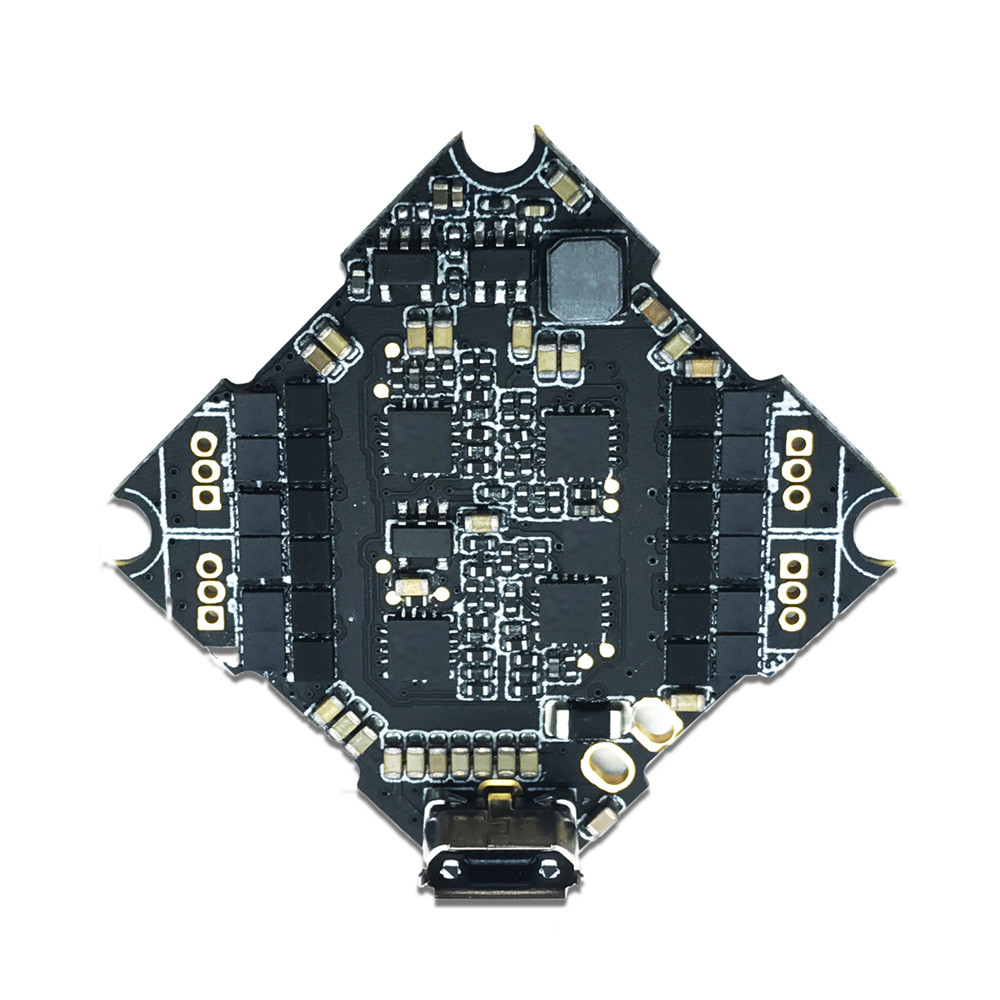

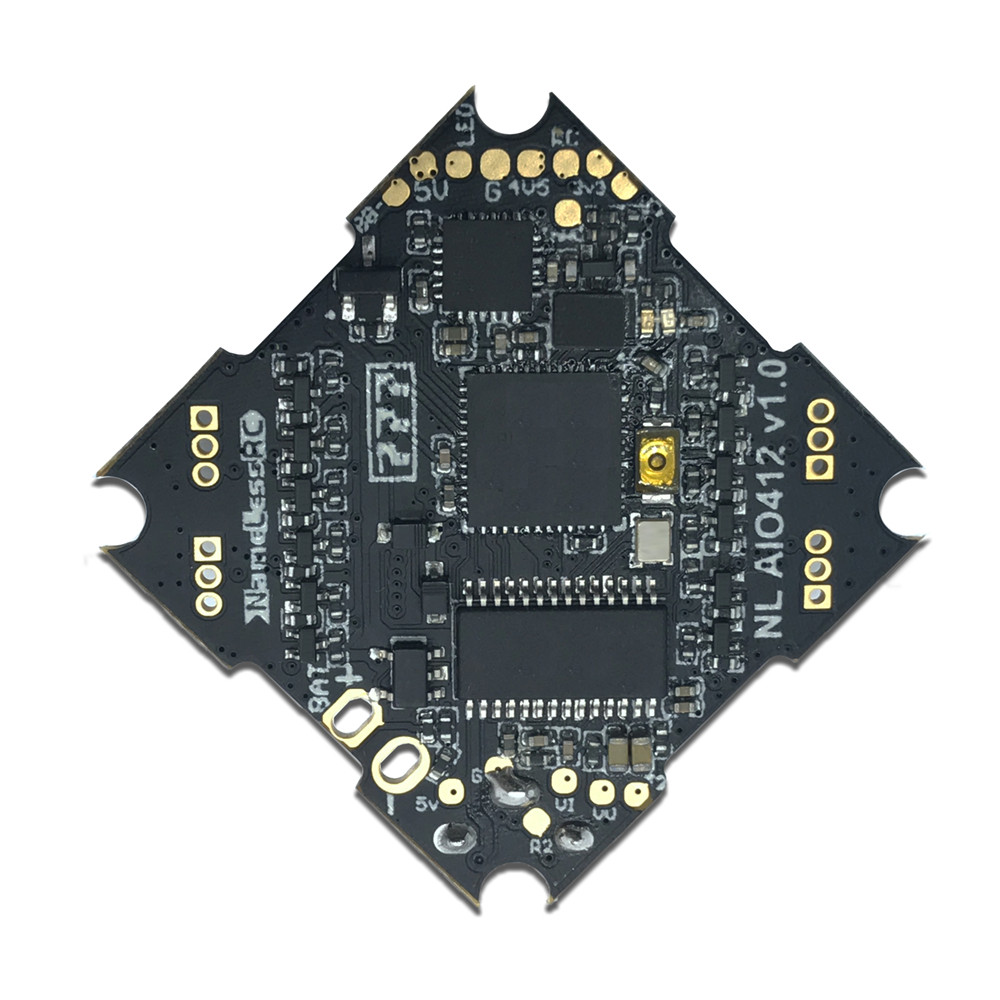

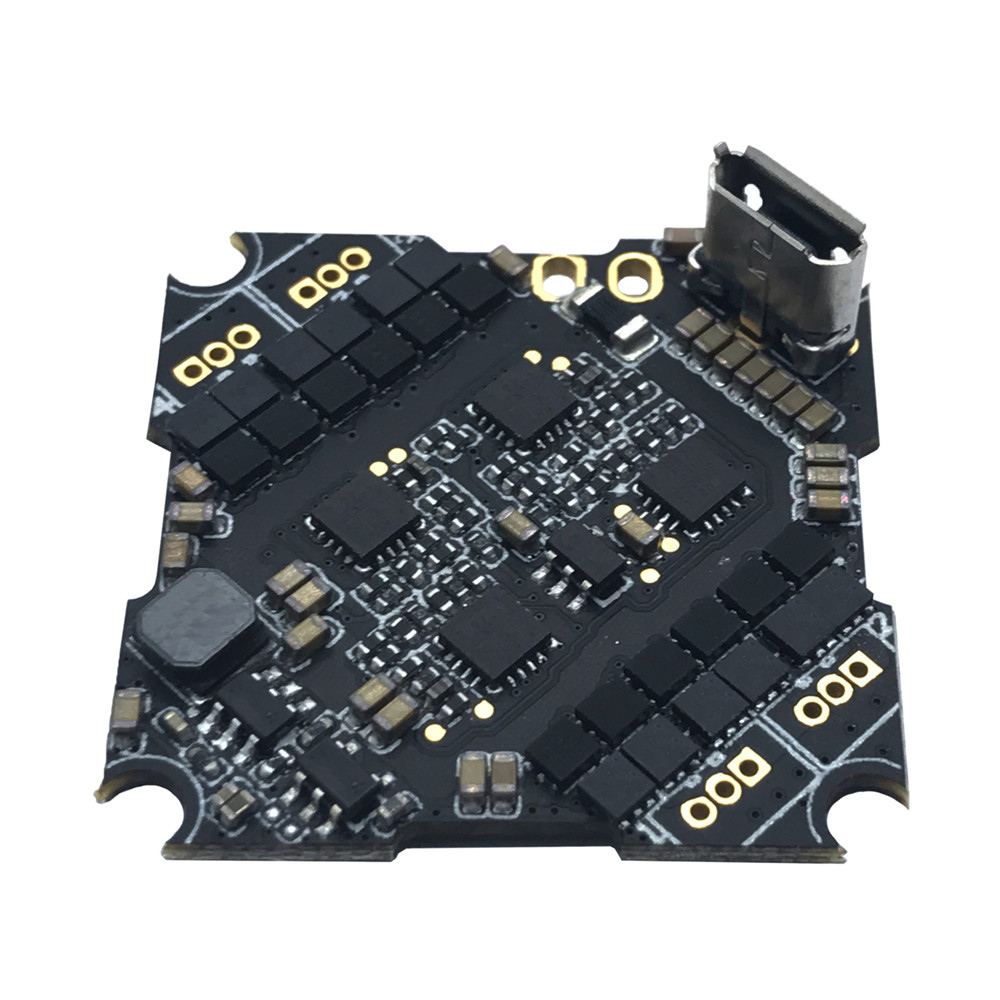

NameLessRC AIO412 F4 Flight Controller AIO OSD BEC & 12A BL_S 2-4S ESC for FPV Racing Drone
Specification:
Brand Name: NameLessRC
Model: AIO412
Item Name: F4 Flight Controller AIO OSD BEC Built-in 12A 4In1 ESC
Input Voltage: 2-4S Lipo / HV Lipo
CPU: STM32F411CEU6 (100MHZ)
Sensor: MPU-6000 (connected by SPI)
– Built-in Betaflight OSD
– Built-in 5V 2.5A BEC Output with LC Filter
– Built-in Betaflight OSD
– Built-in 5V 2.5A BEC Output with LC Filter
– Built-in Current Sensor
Size: 28.5×28.5mm
Net Weight: 4.2g
– Support DSM2/X RX, Frsky XM/XM+ RX, Frsky R9M RX , Fu-taba RX, Flysky RX, TBS Crossfire Receiver
– Support DSM2/X RX, Frsky XM/XM+ RX, Frsky R9M RX , Fu-taba RX, Flysky RX, TBS Crossfire Receiver
ESC Specification:
Power supply: 2-4S LiPo/LiPo HV ( 7.4-17.4V)
Continue Current: 12A
Burst current: 15A
Firmware: BLHELI_S
Motor Connectors: 1.25mm header pins connector
Default protocol: DSHOT600
Features:
– The largest support 4S Lipo HV battery, with Current meter
– F411 Flight Controller, BEC 5V 2.5A
– MPU6000 Gyroscope
– Include Buzzer pad
– Invert and non-invert SBUS port
– Light design
Package Included:
1x F4 Flight Controller Built-in 12A ESC Board
1x XT30 Connector Cable
4x Anti-vibration Standoffs
1x bag of Screws
4x Plug Connectors
