Description
Specifications:
Brand Name: MXK
Item Name: F405WING Flight Controller
MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro
Baro: BMP280
OSD: AT7456E
Blackbox: MicroSD card slot (SD/SDHC)
BLE Module: Inner connect to UART5(MSP & Baud 9600)
BLE Module: Inner connect to UART5(MSP & Baud 9600)
for remote setting with SpeedyBee App or other similar apps
6x Uarts (1,2,3,4,5,6)
1x Softserial-Tx(SoftSerial on TX2 pad)
2x Motors, 6x Servos outputs
2x I2C
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
WS2812 Led Strip : Yes
Battery Voltage Sensor: 1:10 (Scale 1100)
Current Senor: 104A, 3.3V ADC, Scale 317
Beeper : Yes
RSSI: Yes
2x ESC power pads
Input Voltage Range: 9~30V (3~6S LiPo) w/TVS protection
3.3V(3V3) 0.3A BEC(Designed for Spektrum RX)
5V(5V) 2A BEC(Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS module, AirSpeed etc)
9V/12V(VSW) 2A BEC(Designed for Video Transmitter, Gimbal ect),12V option with Jumper pad
5V/6V/7.2V(VX) 5A BEC(Designed for Servos),Voltage adjustable, 5V Default, 6V or 7.2V via jumper
3.3V(3V3) 0.3A BEC(Designed for Spektrum RX)
5V(5V) 2A BEC(Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS module, AirSpeed etc)
9V/12V(VSW) 2A BEC(Designed for Video Transmitter, Gimbal ect),12V option with Jumper pad
5V/6V/7.2V(VX) 5A BEC(Designed for Servos),Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Physical:
Mounting: 30.5 x 30.5mm
Dimensions: 54 x 36 x 13 mm
Weight: 28g
FC Firmware:
INAV-Rada.r
INAV
APM(ArduPilot)
English Manual, Click Here
Package Included:

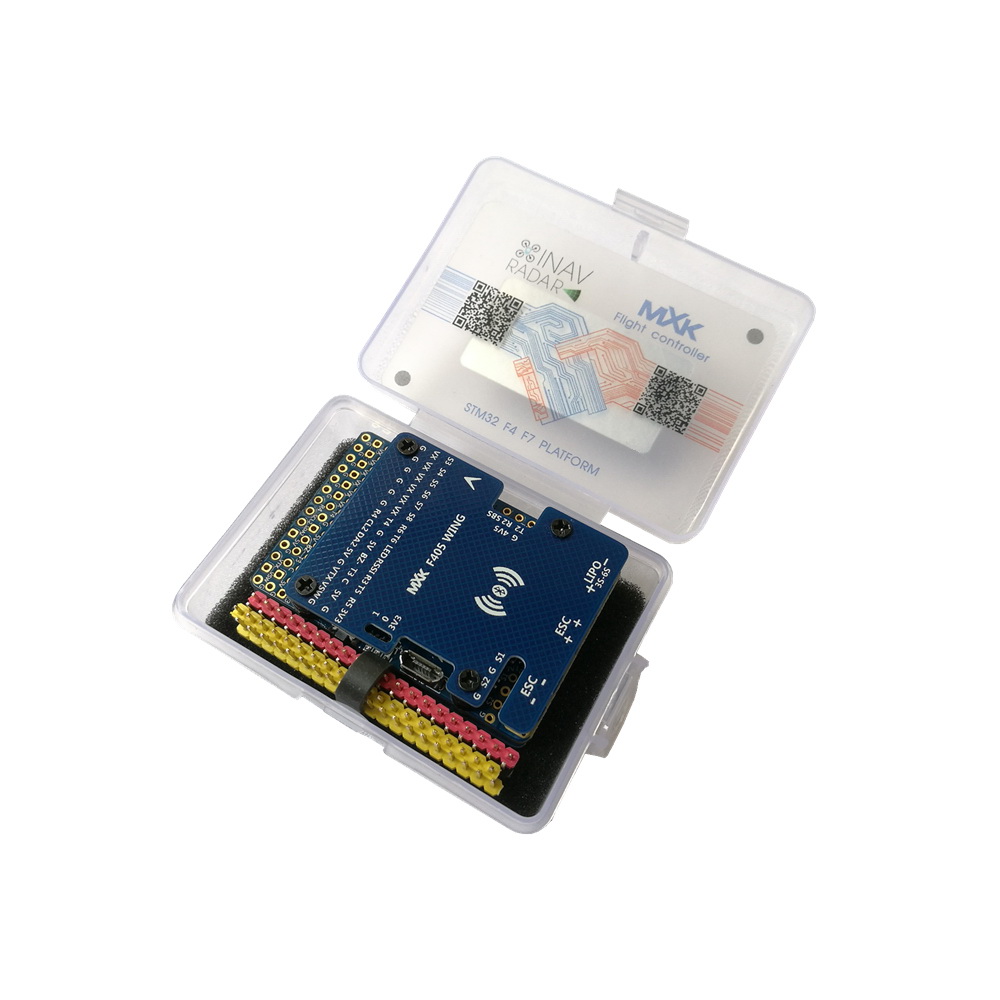

1x MXK F405WING STM32F405 Flight Controller
