Description

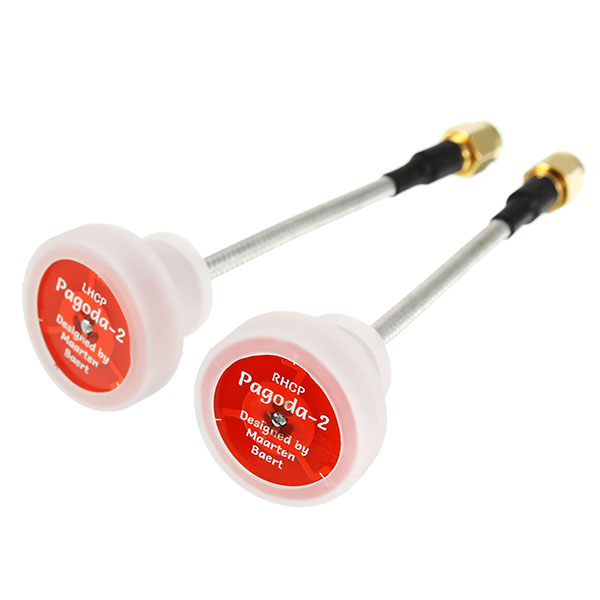

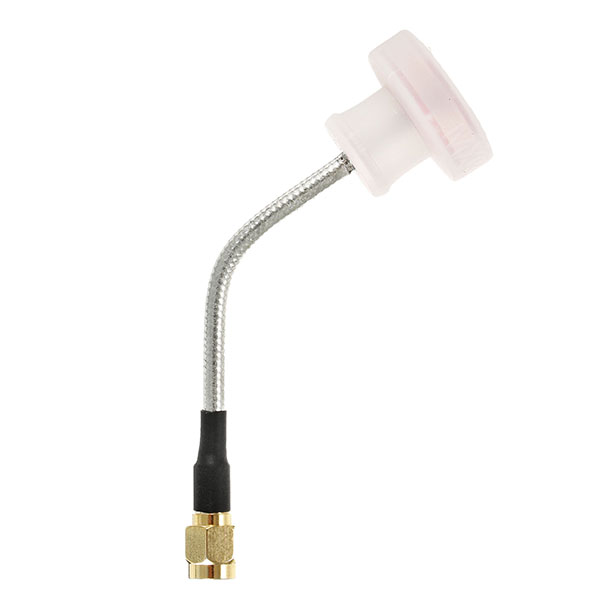

5.8 GHz Pagoda Omnidirectional FPV Flat Panel Antenna LHCP/RHCP SMA Male
3D radiation pattern:
Simulation model: The data contrast is far superior to the traditional omnidirectional antenna
VNA measurements:
Comparison of traditional omnidirectional antenna simulation model:
Specification:
Diameter: 22.5mm
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Match: S11 <-20 dB, voltage standing wave ratio <1.22 (at center frequency)
Axial ratio: <1.3
Radiation efficiency: 95%
Gross Weight: 10g
Features:
1. Light weight, small size, diameter 22.5mm
2. Omnidirectional circularly polarized antenna
3. The new technology metal main rod is almost perfect axial ratio
4. Very low standing wave smooth omnidirectional radiation receiving mode
5. Very durable, less than the current omnidirectional antenna, 8.5 g. Full length 95mm
Package included:
1 x Antenna
