Description

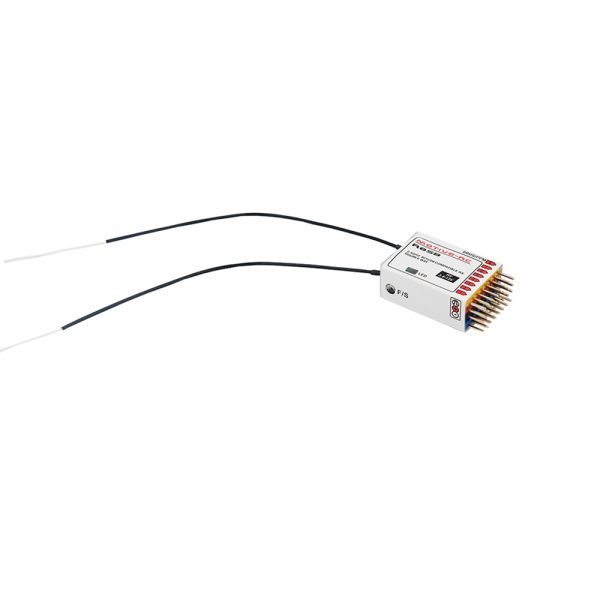

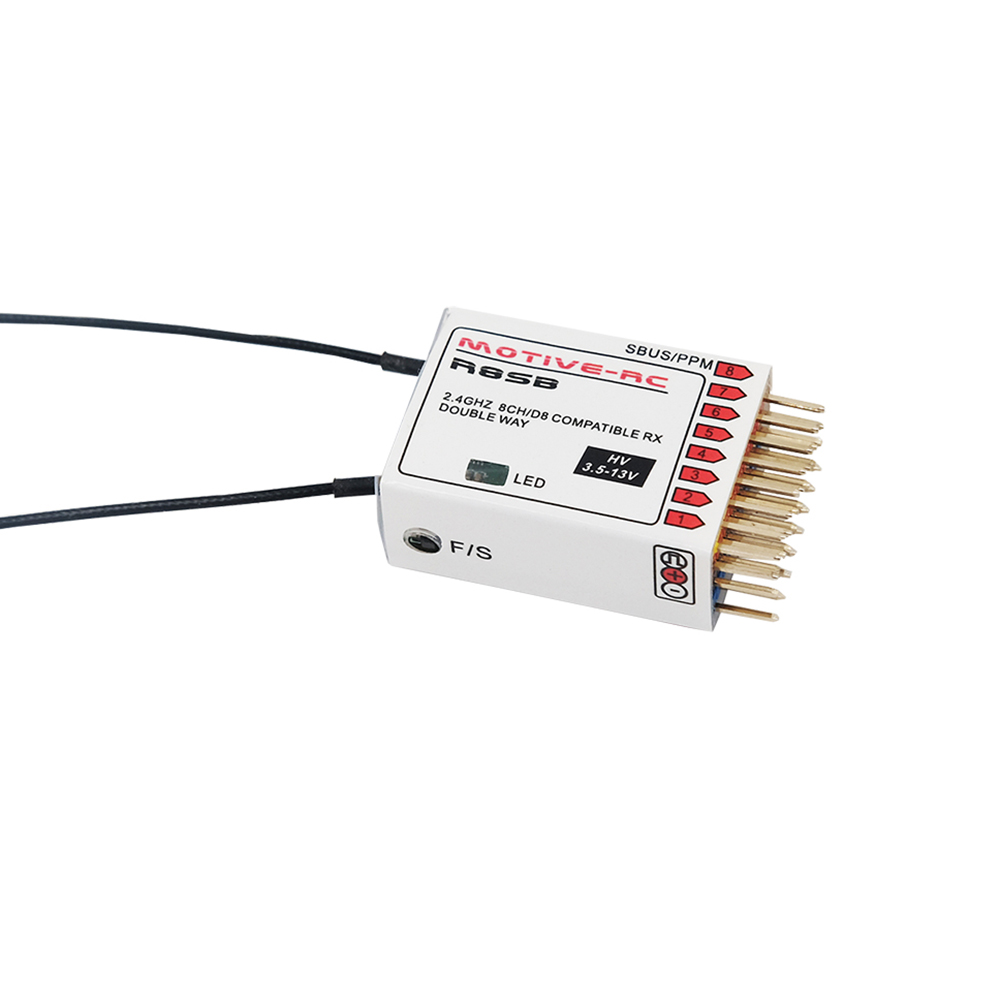

MOTIVE-RC R8SB 2.4G 9CH Frsky D8 Compatible Telemetry Receiver for X9D Plus DJT XJT Transmitter
Specification: User Manual, DOWNLOAD
Brand name: MOTIVE-RC
Item name: R8SB 9CH D8 Compatible Telemetry Receiver
Number of Channels: Up to 9CH from SBUS(CH1~8 for PWM, CH9 RSSI for FC)
Input Voltage Range: 3.5V – 13.0V (5V Normal Operating Range)
Range: above 1.2KM
Compatibility: iRange X , Jumper Transmitters, FrSky XJT / DJT / DFT/ DHT, D8_Mode on all FrSky transmitters
Size: 35 x 21 x 12 mm (L x W x H)
Weight: 6.8g
Feature:
1.2KM far reaching range
Satisfy with various model type with Physical channel PWM outputs, PPM, SBUS and RSSI outputs (For FC)
RSSI Output analog 0~3.3V
Two analog telemetry ports (A1&A2), A1 for internal receiver battery voltage sensor, A2 for external battery voltage sensor (0~30V, 1~6S)
One digital data-stream port (Rx, Tx)
Package Included:
1 x Telemetry Receiver
