Description
Specification:
Lens: 2.1mm Lens(M12) FOV145 / 2.5mm Lens(M12) FOV120°
Image Sensor: 1/2.7 Super HAD II CCD
Horizontal Resolution: 200W 1080P
Min.illumination: 0.02Lux/1.2F
Signal System: PAL/NTSC
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
Power: DC 5 to 24V
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
WDR: D-WDR
DNR: 2DNR
Day/Night Color: Auto / B&W
Working current: 70mA
OSD: support
Dimension: 22*22*27mm
Net weight: 18g
Features:
– 1500TVL high picture quality
– 1/2/7 SUPER HAD II CCD
– fuhan 0237DSP
– Powerful OSD menu
– D-WDR (Wide Dynamic Range)
– 2D-DNR (Digital Noise Reduction)
– Low Power Consumption(70mA)
– Mirror function
– Privacy areas: 8 areas
– Low illumination: 0.01Lux
– 2.5mm 2.1MM Lens
– Low Power Consumption
– Suitable for FPV
Package included:

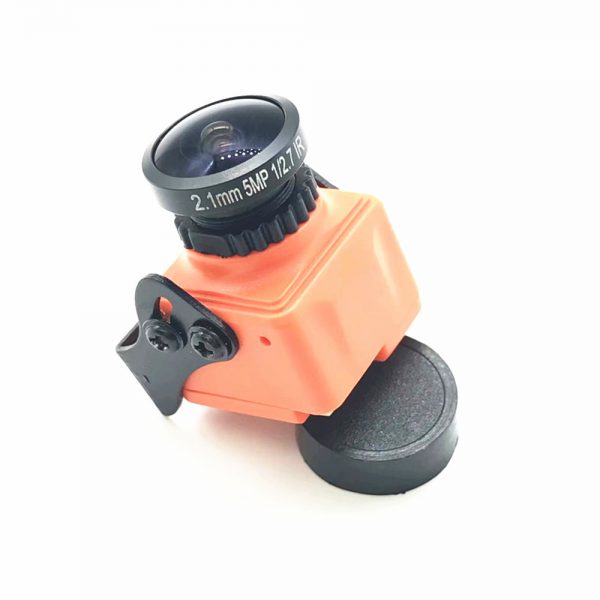

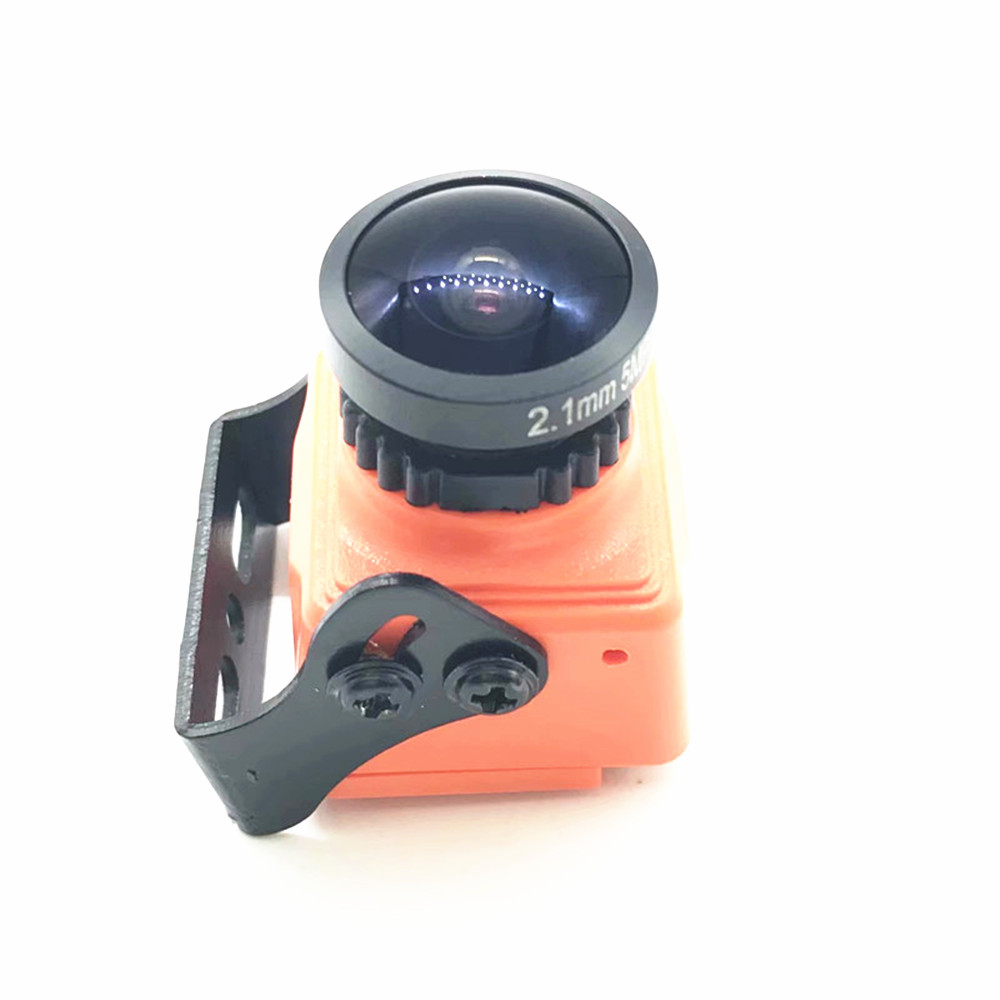

1 x Mista 2.1mm/2.5mm 1080P FOV120° D-WDR PAL/NTSC Switchable OSD FPV Camera
1 x AV Cable
1 x Bracket
1 x BNC Monitor cable
1 x Camera case
1 x Lens cover
Screws
