Description

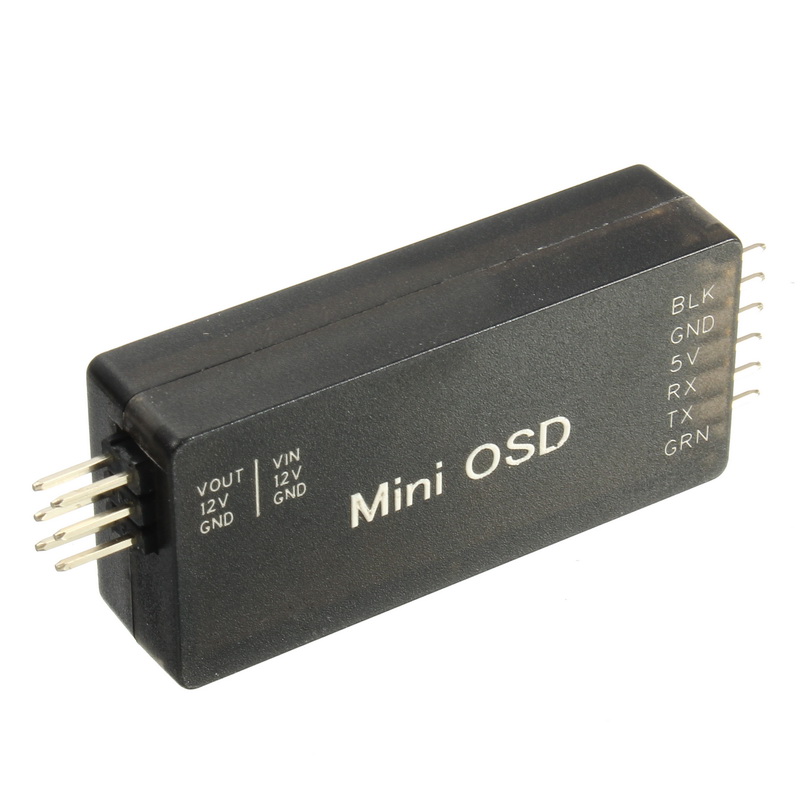

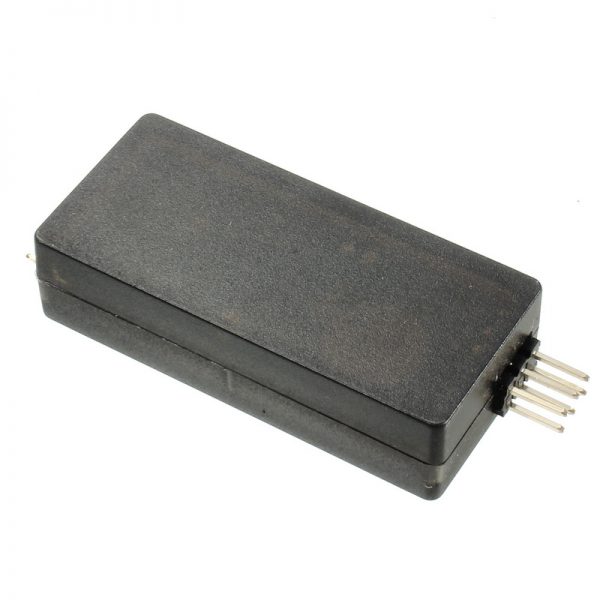

Mini OSD Module for APM PIX Pixhawk Pixhack Flight Control Board
Specification:
Item Name: Mini OSD Module
Usage:Only for APM PIX Pixhawk Pixhack Flight Control , can not connect to GPS separately.
Features:
-ATmega328P with Arduino bootloader
-MAX7456 monochrome on-screen display
-FTDI cable compatible pinout
-Standard 6-pin ISP header
-If you use it separately, please connect to APM by TX, RX Connector
-If you use with 3DR Radio Telemetry, only need to connect the RX Connector, don't need the TX.
-Two independent power sections with an LED indicator on each
-Solder jumpers for combining the power sections
-+5V 500mA regulator for up to +12V supply input
-Solder jumper for PAL video option

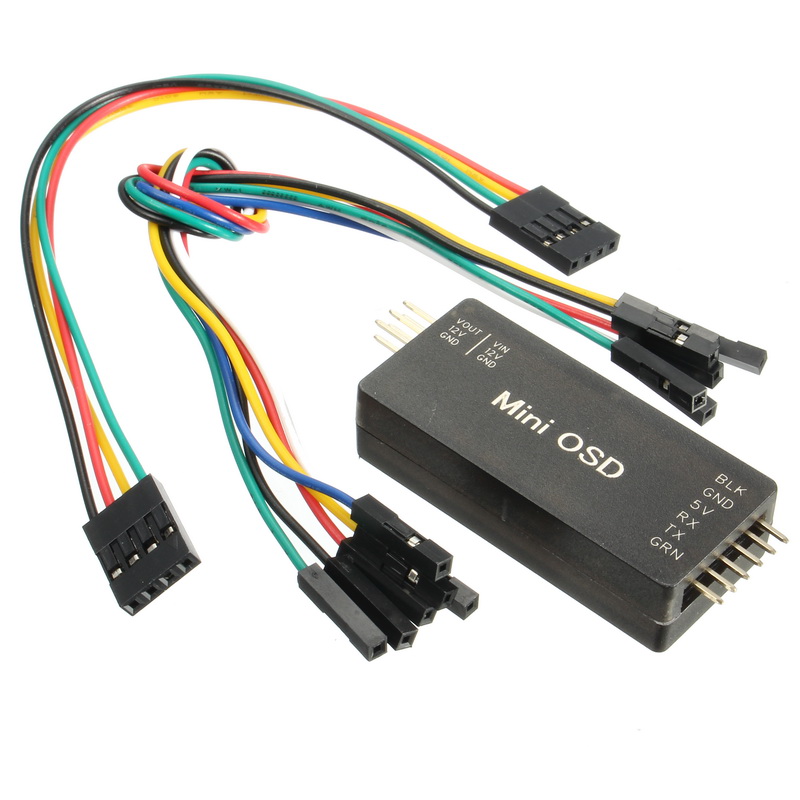

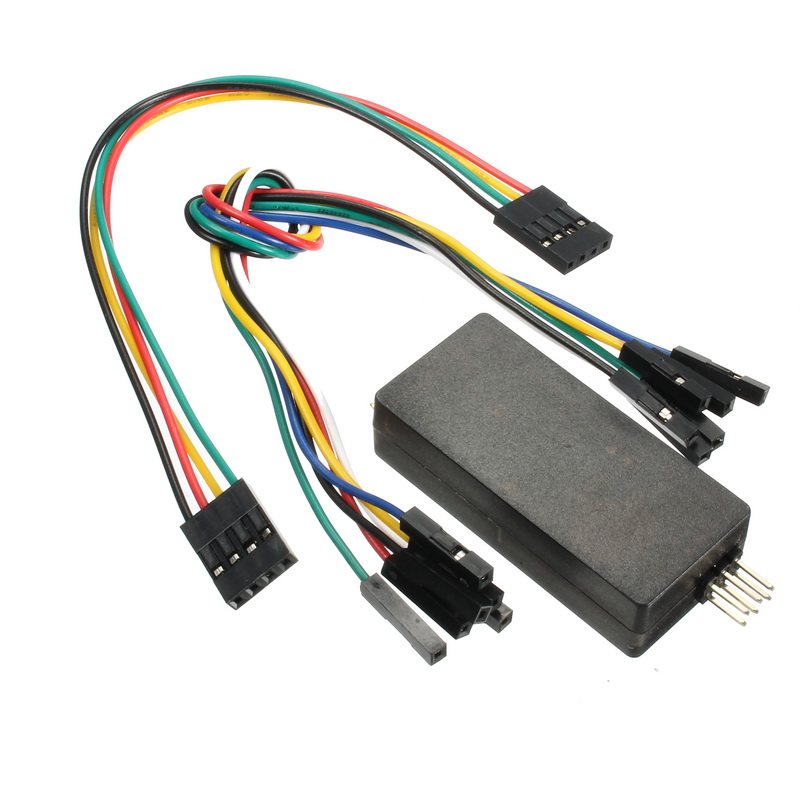

Package Included:
1x Mini OSD Module
1x 4 Pins Cable
1x 6 Pins Cable
