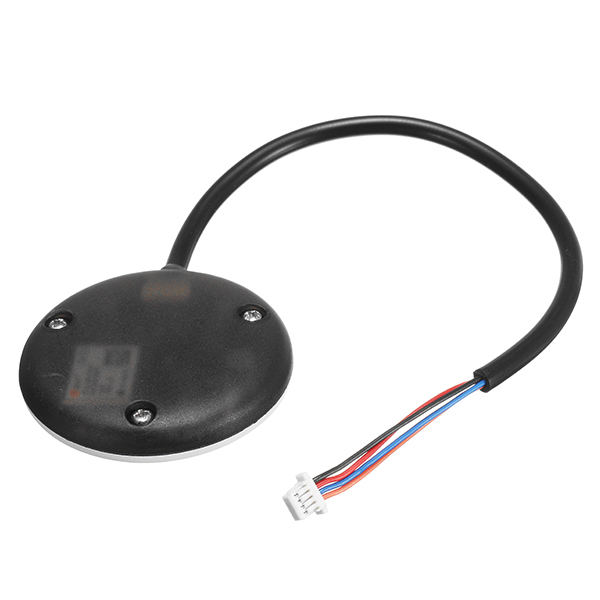

Mini GPS For CC3D & Revolution Flight Controller
The GPS comes pre-configured for use with CC3D & Revolution Flight Controllers for easy set up while the folding
pedestal mount provides a handy of mounting the compass away from sources of interference on you model.
pedestal mount provides a handy of mounting the compass away from sources of interference on you model.
Description:
Item Name: Mini GPS
Receiver Type: 50 channel M8 engine
Input voltage: 2.7 ~ 3.6V
Backup power: 1.4 V ~ 3.6V 22 µA
Supports: NMEA, UBX binary, RTCM
Position Accuracy: 2.5m
Acquisition rate: Cold 27 secs, Aided 3 secs Re-acquisition 1 sec
Tracking & Nav sensitivity: -167 dBm
Cold Starts: -148 dBm
Hot Starts: -156 dBm
Default Baud Rate: 38400
Power Consumption: 111mA @ 3.0V (33mA @ 3.0V in power save mode)
Operating Temperature: -40 ~ 85°C
Dimensions: 27.5 Ø x 7mm
Weight: 38g
Features:
Fast satellite acquisition (10s to find 6 satellite fixes in the open)
High precision (2.5m)
Inbuilt RTC Crystal
Flash memory
Folding antenna base
Low noise
Active and passive antennas supported
SAW band pass filter
Data logger for position, velocity & time
Package Included:
1 x Mini GPS Module
1 x Folding GPS mount and bracket
