Description
MINI DCDC UBEC BEC 2-6s DC 4.5-24V Step Down Module for FPV Multicopters
Specification:
Item name: BEC Step Down Module
Input voltage: 4.5-24V

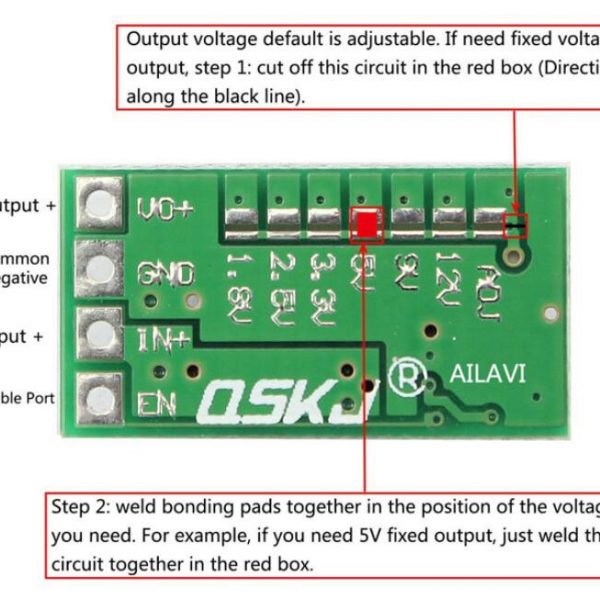

Output : Integrated adjustable and fixed output, the back can choose a fixed output voltage
Adjustable range (0.8-17V), a fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Can be adjusted to the output voltage of 0.8V – 17V
Conversion efficiency: up to 97.5% (6.5 to 5V, 0.7A)
Working temperature: -40 ℃ to + 85 ℃
Output Overvoltage Protection: None
Full load temperature: 40 ℃
Quiescent Current: 0.85 mA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output current: maximum 3A (full attention please pay attention to heat), the actual test input 12V output within 1.5A no special treatment of heat.
Size: 20x11x5mm
Weight: 1.6g
Feature:
Output integrated adjustable and fixed voltage
Built-in MOSFET, 500Khz ultra-high frequency, low ripple
Integrated adjustable and fixed output, the back can choose a fixed output voltage
Package Included:
1 X BEC Step Down Module
