Description
Mini 3DR Radio Telemetry 433MHz 915MHz w/ Case for APM PX4 Pixhawk MWC Flight Controller
Specification:
Item Name: 3DR Radio Telemetry Module
Support to MWC / APM / PX4 / Pixhawk Flight Controller
Weight: Air Module 3.2g
The total weight:35.5g
Optional Version: 433MHz @100MW / 915MHz @ 100MW
Features:
– Independent production, professional design of RF engineers
– CP2102 high quality USB to TTL chips
– Alternatively 433MHZ or 915MHZ version
– Support MWC / APM / PX4 / Pixhawk other open source flight control
– Receiver sensitivity of -118 dBm
– MAVLink Framework Agreement
– Open Source Firmware
– Frequency hopping spread spectrum (FHSS)
– 2-way full-duplex communication adaptive TDM
– Up to 25% can be corrected bit errors
– Based Si1000 and Si4432 wireless microcontroller modules.

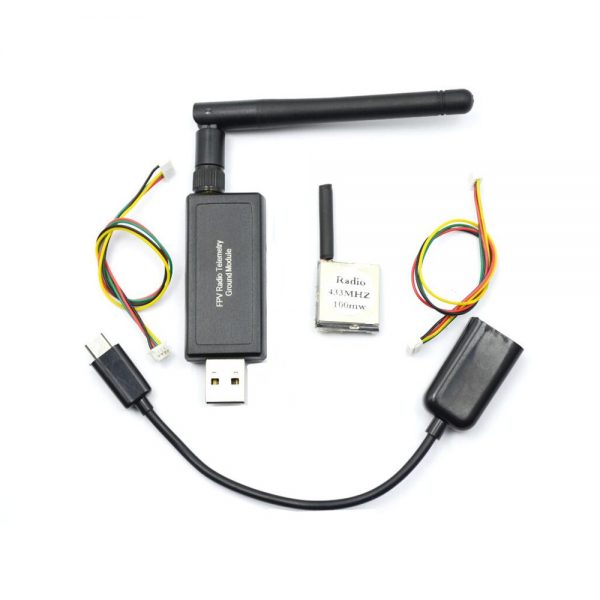

Package Included:
1 x Air Module
1 x Ground Module
1 x SMA Antenna
1 x Apm Cable 5P
1 x Pixhawk Cable 6P
1 x Otg Cable
