Description
Description:

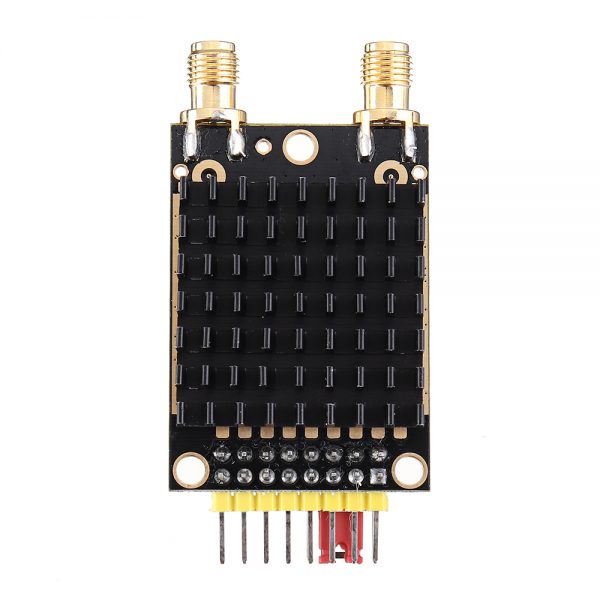

The Mayatech MT900 is a high performance ISM band wireless modem. Operating frequency range 902 MHz – 928 MHz. It is a communication device that can be used for long-distance data transmission. This device has been used in Autopilot (APM) and paparazzi.
Specifications:
Brand Name: Mayatech
Item Name: MT900
Version: Only MT900 module, MT900 Combo (optional)
Operating Frequency Range: 902 – 928MHz
Outdoor ZUI Large Communication Distance: >40km (transmit power adjustable)
Operating Temperature: -40℃ ~ +85℃
RF Port: RP-SMA
Communication Port: RS 232 interface
Power Port: +5V, 800mA peak' (maximum transmit power)
I/O: 6 General' Purpose I/O (Digital, ADC, PWM)
RF Output Power: 1W (+30 dBm), which can be increased or decreased by 1dB through software.
Over-the-air Data Transfer Rates: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250 kbit/sec (64K/128K default)
Receive Sensitivity: > 121 dBm at low data rates, high data rates (TBA)
Size: 30x57X12.8mm
Weight: 15g/single module
Features:
– Dual antenna design automatically switches one of the antennas based on signal quality.
– Low-pass filtering with low-pass amplifier with greater than 20DB.
– Data air transmission rate up to 250kbps.
– Support dual antenna.

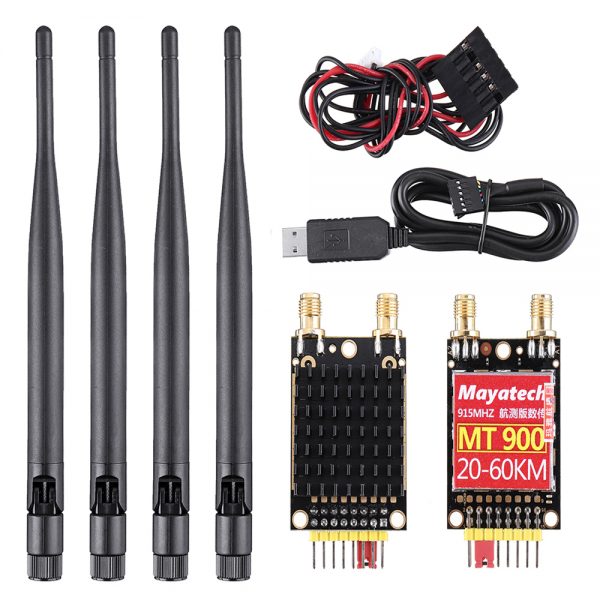

Package Included:
1x Mayatech MT900 Module
or
2x Mayatech MT900 Module
4x Antenna
1x Connecting Cable

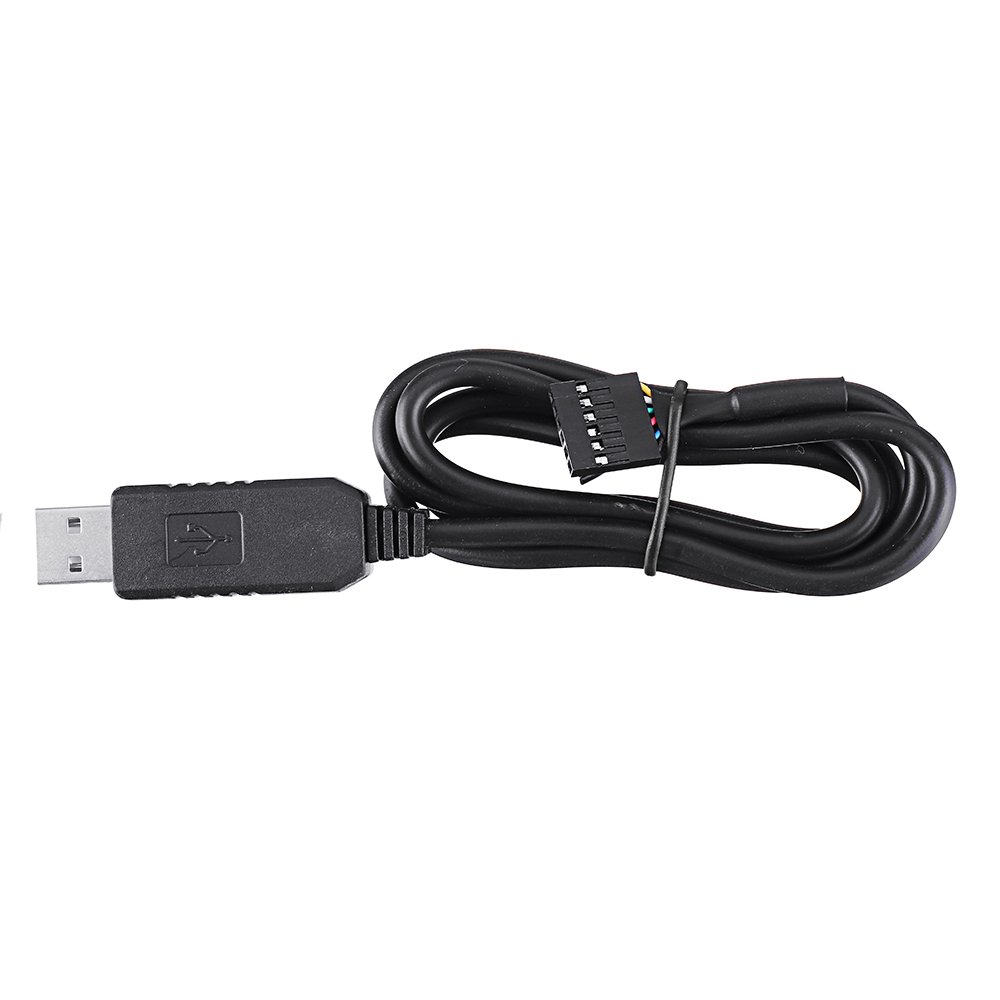

1x Data Cable
