Description

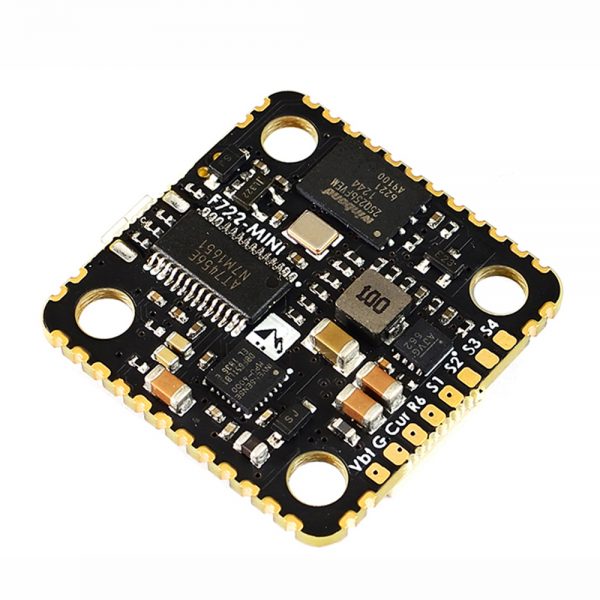

Matek Systems F722-Mini Flight Controller OSD Dual Gyro/Acc 32M Flash 5V/2A BEC for RC Drone
Specification:
Brand name: Matek Systems
Item name: F722-Mini Flight Controller
- MCU: 216MHz STM32F722RET6
- IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
- OSD: AT7456E (SPI)
- Blackbox: 32M-byte Flash memory (SPI)
- Baro: No barometer built-in. support external barometer module (I2C)
- 5x Uarts (1,2,3,4,6) with build-in inversion
- 1x Softserial supported
- 8x Dshot/Proshot/oneshot outputs
- 1x I2C
- 1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
- Dual Camera image switchable via AUX (modes tab-user2)

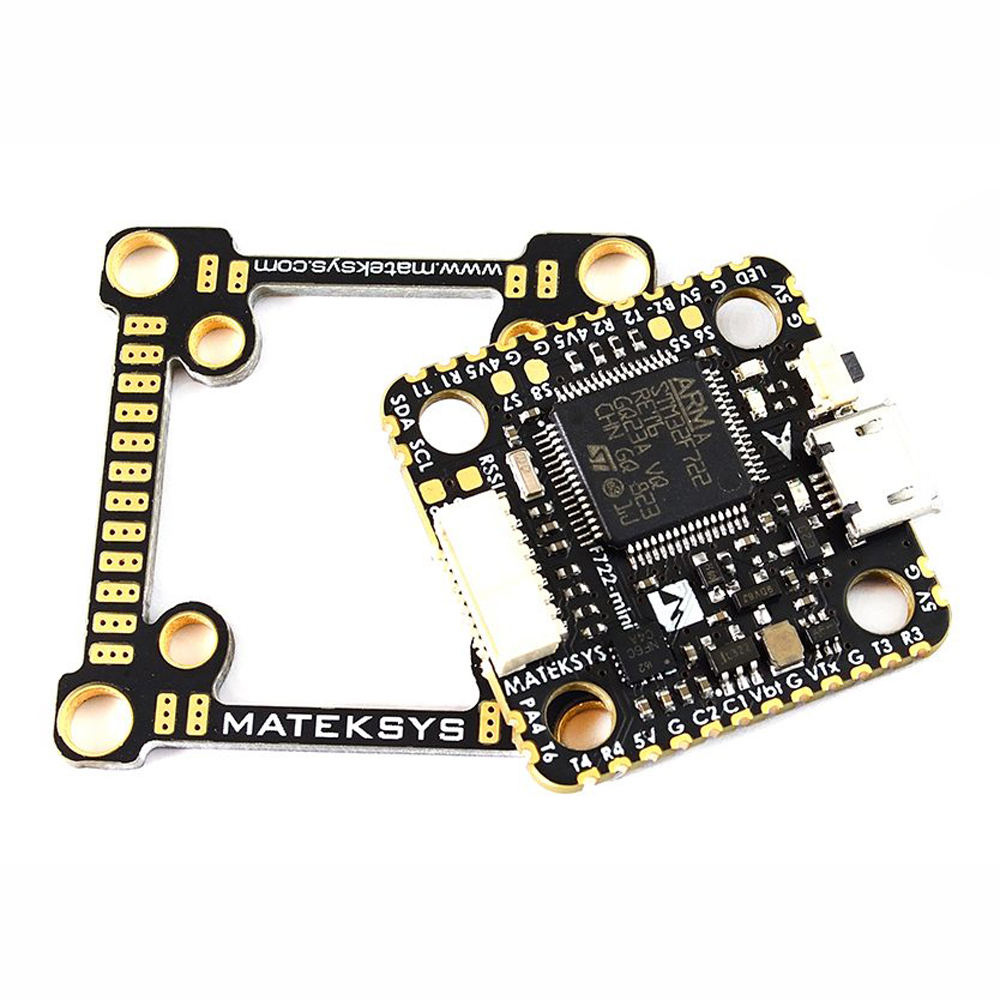

- Convertible 20mm to 30.5mm mounting
- Camera control: Yes
- Smartaudio & Tramp VTX protocol: Yes
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- Additional ADC for INAV analog airspeed
Power
- Input: 6~36V (2~8S LiPo)
- BEC: 5V 2A cont. (Max.3A)
- LDO 3.3V: Max.200mA
- Battery Voltage Sensor: 1:10 (Scale 110)
- No Current Sensor built-in, supports external current sensor of PDB/4in1
FC Firmware
- BetaFlight / INAV
- Target: MATEKF722SE
Physical
- Mounting

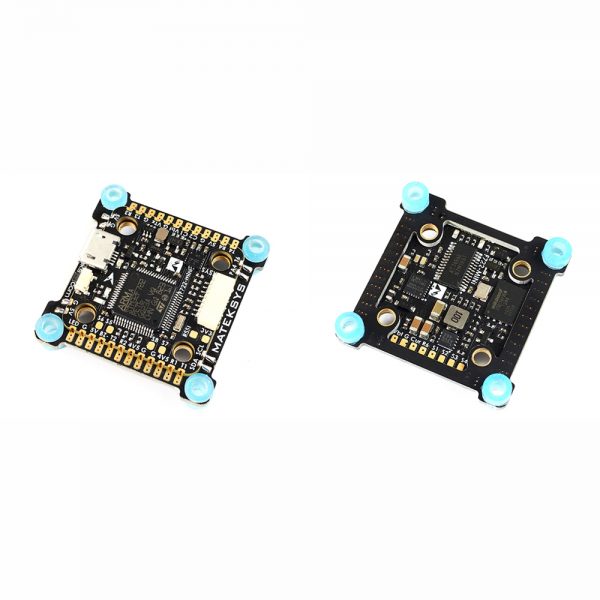

- 20 x 20mm/Φ3mm with Silicon Grommets
- 20 x 20mm/Φ2mm with Silicon & Brass Grommets
- 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
- Dimensions: 28 x 28 mm
- Weight: 5g

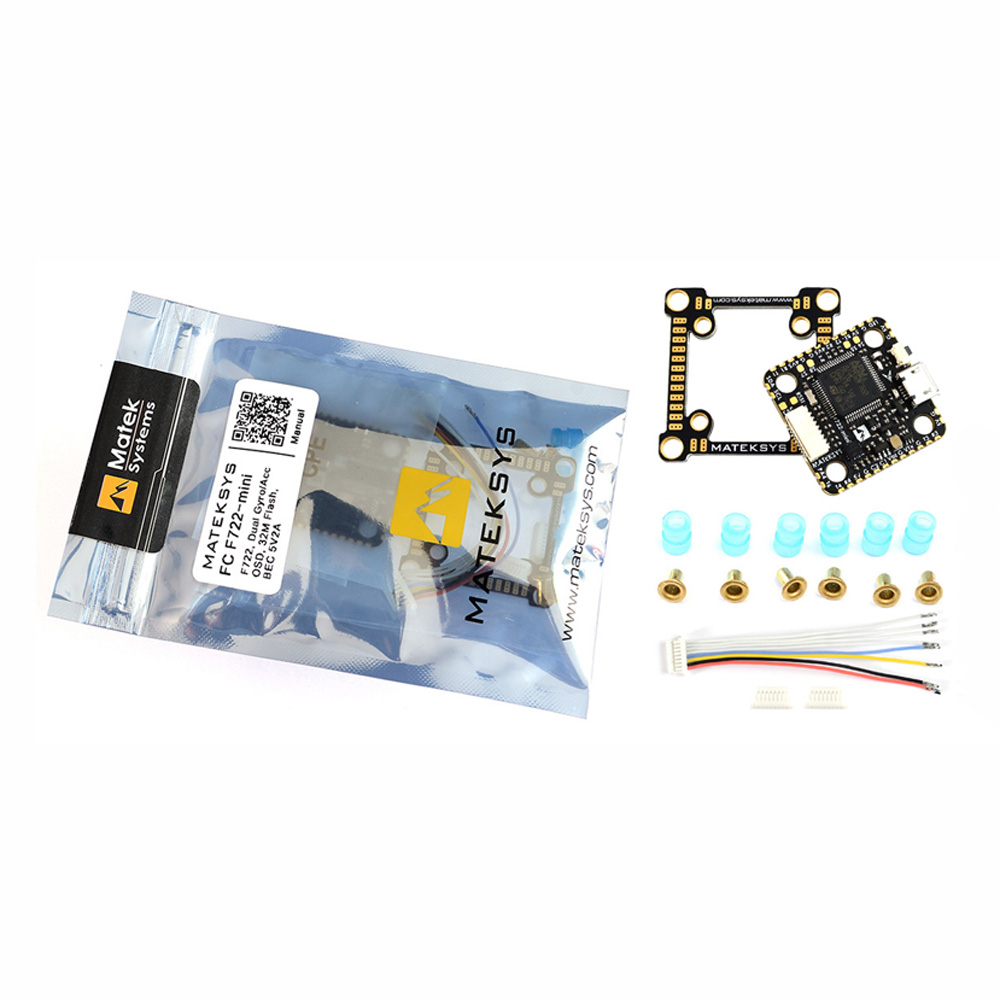

Package Included
- 1x FC F722-mini
- 1x 20mm to 30.5mm conversion plate
- 6x Silicon grommets M4 to M3
- 6x Brass grommets M3 to M2
- 1x SH1.0_8pin cable 5cm
- 2x SH1.0_8pin connectors
