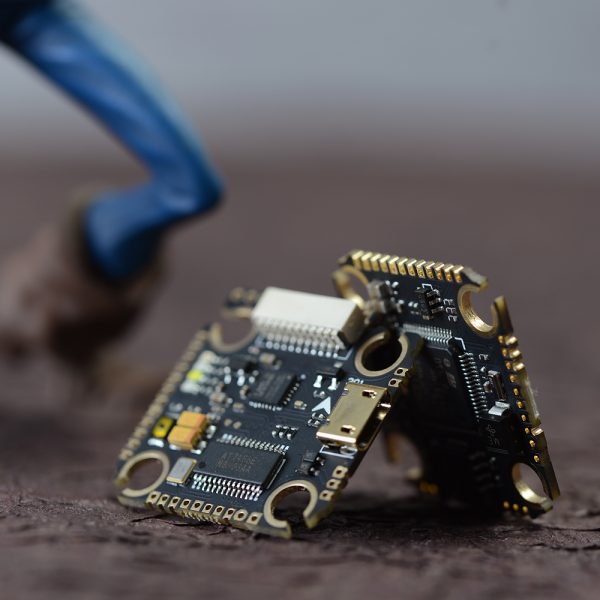

MAMBA F722 MINI 2-6S 5V 2A BEC OSD Flight Controller 20x20mm for RC Drone FPV Racing
Specification:
Item name: MAMBA F722 MINI Betaflight Flight Controller
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX2
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V
Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 11g
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
PDB Specifications
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
BEC: 5V 2A (Max 3A)
FC Firmware
BetaFlight
Target: MAMBA F722
Package Included:
1× FC MAMBA F722MINI
4× Silicon grommets M4.3 to M3
1× Panaso nic Low ESR 35V/470uF
1× AMASS XT60
2× Wire
20× Silica gel O ring
