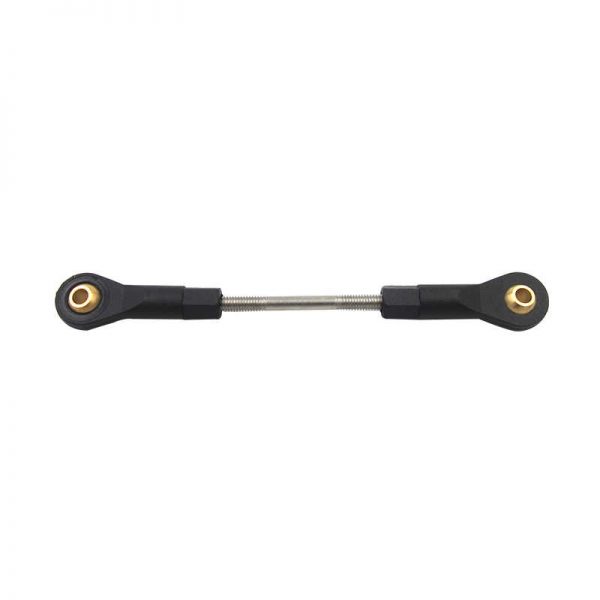

M3 Multiple Adjustable Push Rod+Rod End Ball Joint Linkage Set Assembly Servo Connecting Rod Stainless Steel for RC Aircraft Boat
Description
Dismeter : 2.5mm
Screw : M3
Screw Teeth Length : 10mm(25-35mm rod), 15mm(40mm-50mm rod)
Type :
Φ2.5XM3X25MM + rod ball L30MM
Φ2.5XM3X30MM + rod ball L30MM
Φ2.5XM3X35MM + rod ball L30MM
Φ2.5XM3X40MM + rod ball L30MM
Φ2.5XM3X45MM + rod ball L30MM
Φ2.5XM3X50MM + rod ball L30MM
How to measure the total length of rod and its pitch:
Take the example of the 30mm length with M3 buld head.
The lengths the 2 rod ball + steel wire length-20mm(2 screw teeth length)= total length
The lengths the 2 rod ball + steel wire length-20mm(2 screw teeth length)-10mm = the pitch of two holes.
Package Included
1 x M3 Multiple Adjustable Push Rod+Rod End Ball Joint Linkage Set
