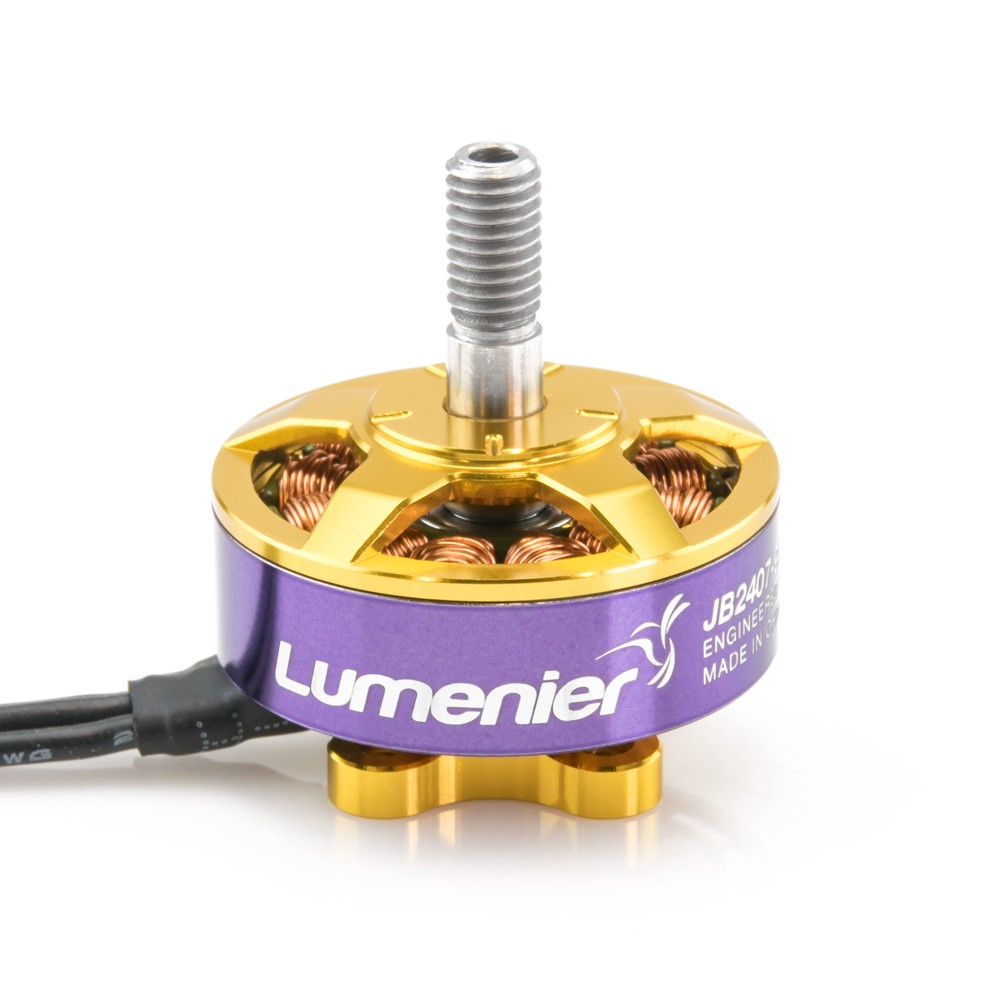

Lumenier JB2407-7 2407 2500KV 2-5S Bardwell CW Thread Brushless Motor for RC Drone FPV Racing
Specification:
Brand name: Lumenier
Item name: JB2407-7 2500KV Bardwell Brushless Motor
| KV | 2500 |
| Bearings | Stainless Steel Bearings |
| Configuration | 12N14P |
| Windings | 7 turn DLRK |
| Termination | D (Delta) |
| Stator Diameter | 24mm |
| Inner Shaft Diameter | 4mm / Steel |
| Idle Current @12.6v (Io) | 1.2A |
| Cells (LiPo) | 2-5S |
| Max Continuous Current (A) 60s | 35A |
| Max Burst Current <10s | 45A |
| Max Continuous Power (W) 60s | 560W |
| Internal Resistance (Rm) | 180mΩ |
| Motor Wire Length | 150mm / 20AWG |
| Motor Connection | Bare Wire |
| Motor Dimension | 29.5×19.5mm |
| Weight | 35g (short wires) |
Feature:
Minimal base design for reduced weight
Single piece 4mm steel shaft with a screw termination in the base for easy maintenance
Awesome yellow and purple color scheme. Joshua's favorite colors!
Long 150mm motor wires for ultra clean setups with 4in1 ESCs
N52SH Curved magnets for maximum performance and heat resistance

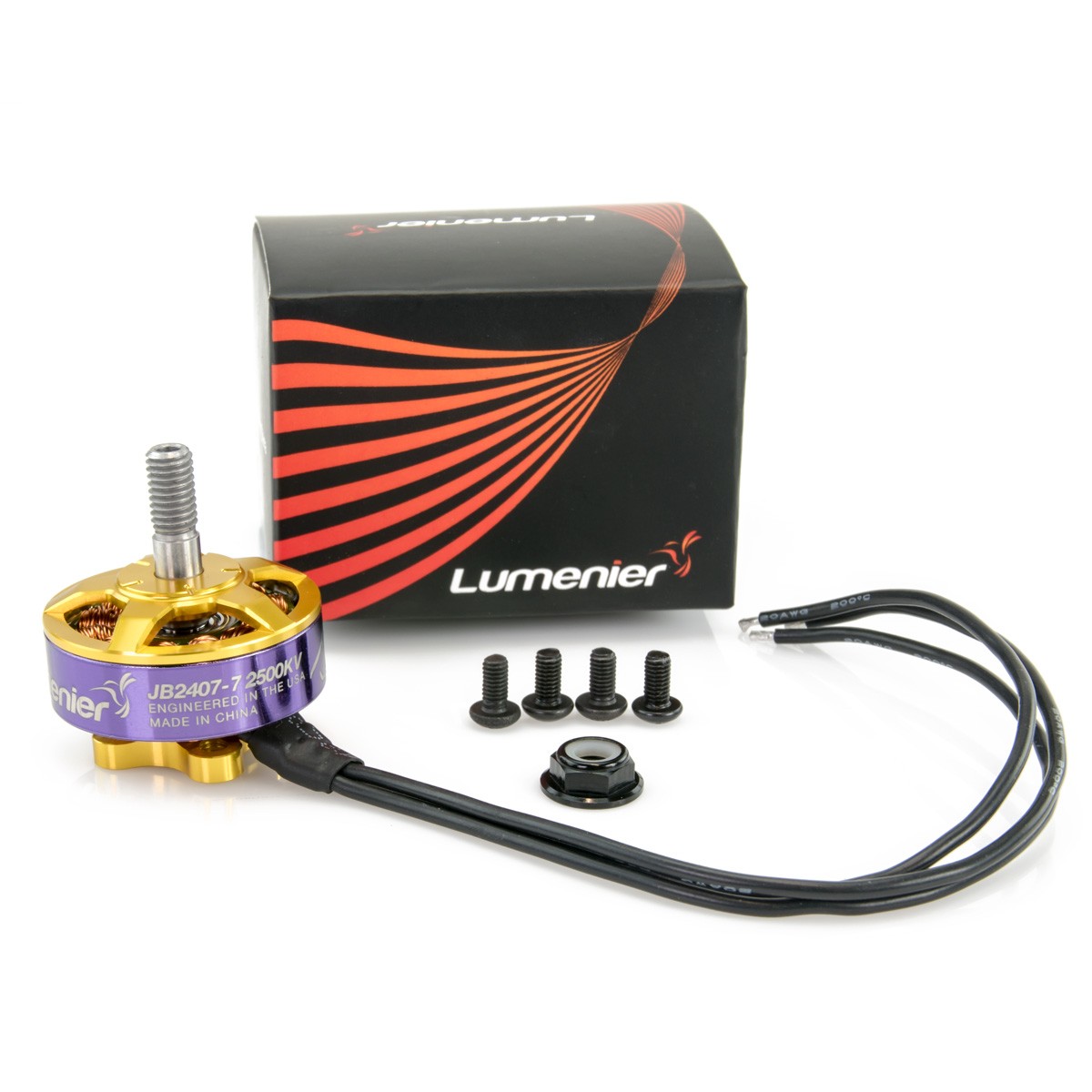

Package Included:
1 x Lumenier JB2407-7 2500KV Bardwell Motor
1 x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
4 x M3x6 Button head screws
