Lumenier AXII Patch & Stubby Antenna Combo 5.8GHz 8.4dBi 1.6dBi FPV Antenna RHCP SMA For FPV RC Drone

$42.99

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

2 PCS Lumenier AXII Patch & Stubby Antenna  Combo 5.8GHz 8.4dBi 1.6dBi FPV Antenna RHCP SMA For FPV RC Drone

The Lumenier AXII Patch Antenna and stubby 5.8GHz Antenna . With high gain, long range, circular polarized receiver antenna. Designed to provide long range 5.8Ghz video reception in a compact form factor.

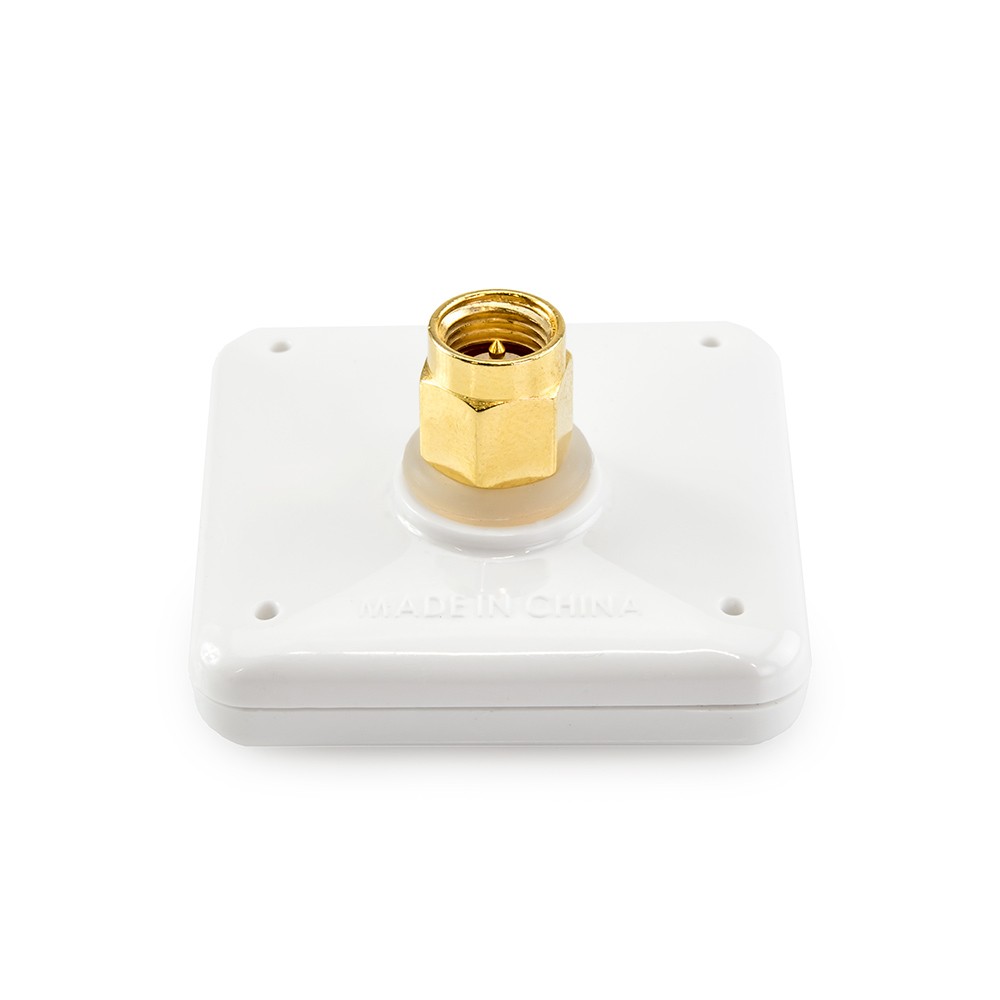

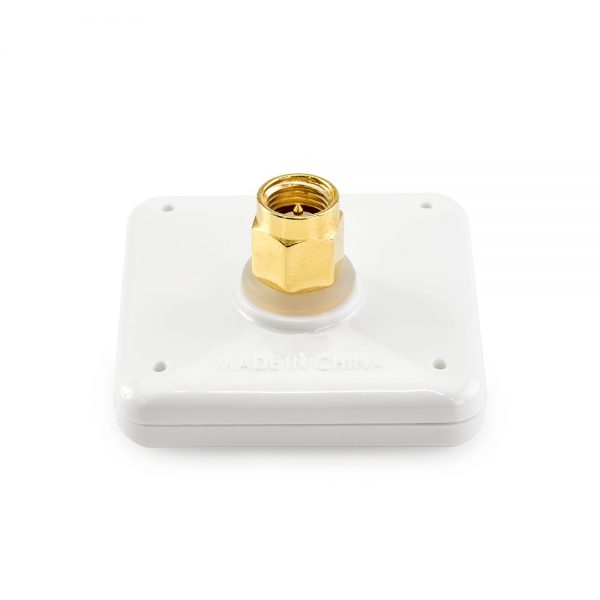

AXII Patch Antenn
Circularly Polarized
High 8.4 dBiC
Incredible 95% efficient
Wide 76 degree beam width
Compact low profile design on your goggles
Designed for goggles or base stations
Specifications
Frequency: 5.8GHz
Bandwidth: 220 Mhz
Gain: 8.4 dBiC
Beam Width: 76°
Right Hand Circularly Polarized
SMA (Fits Fat shark Goggles and others using SMA)

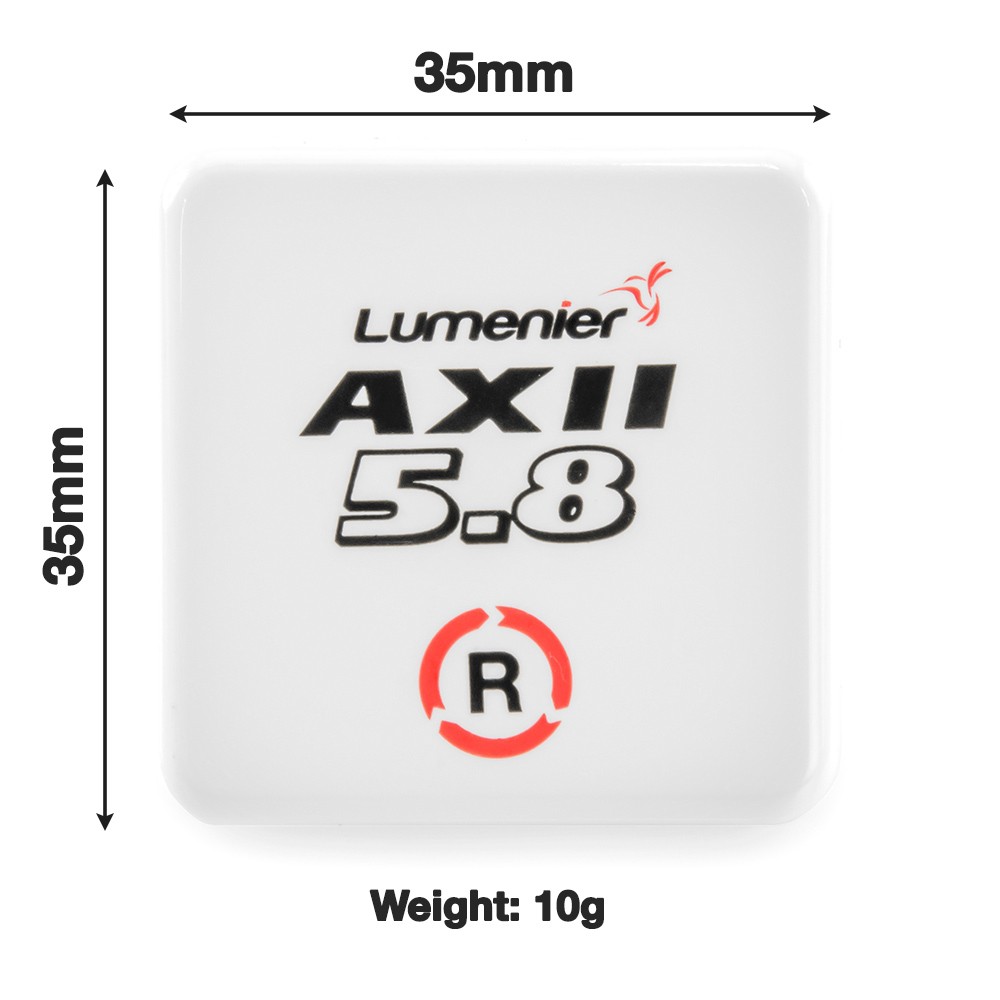

Dimensions: 35mm x 35mm x 9mm (20mm with connector)
Weight: 10grams

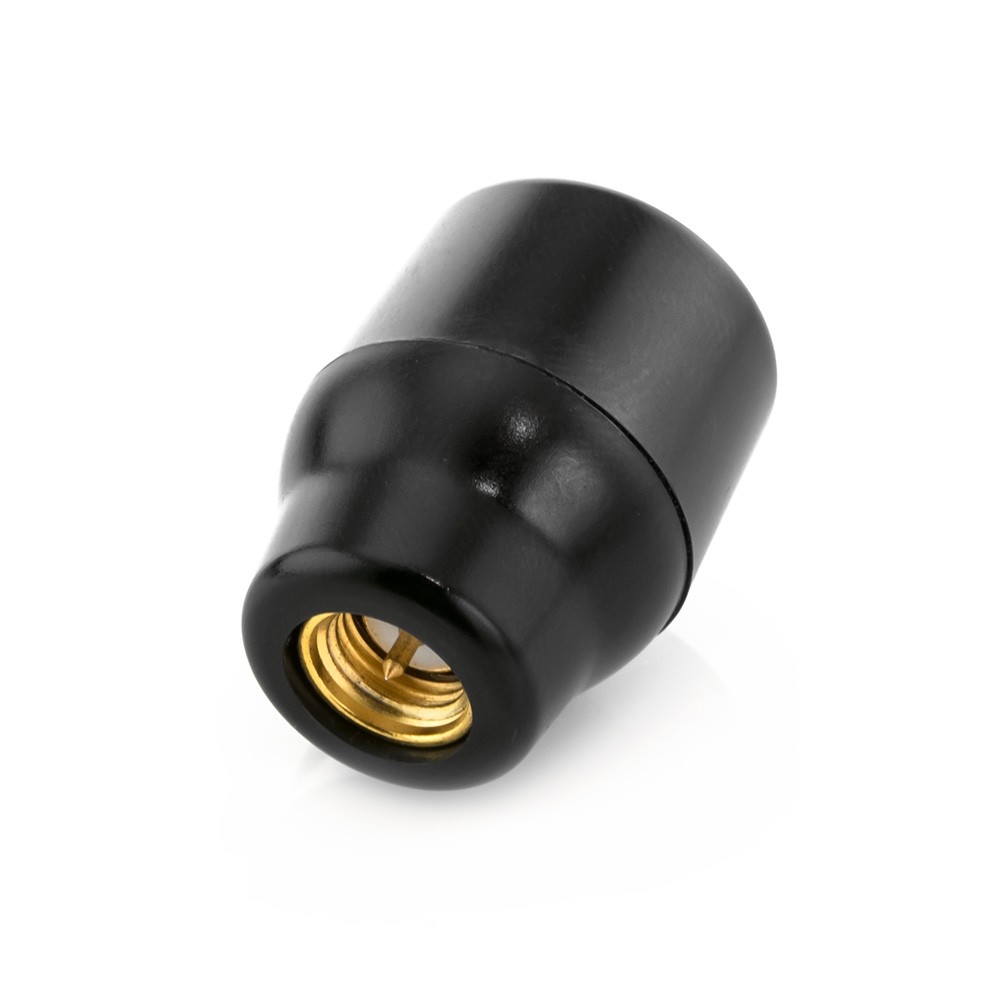

AXII Stubby
Gain: 1.6dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 4.7g
Size: 24mm x 16mm
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz  RHCP antennas


Package Included
1 x RHCP Lumenier Stubby AXII 5.8GHz Antennas
1x RHCP Lumenier AXII Patch Antenna 5.8GHz

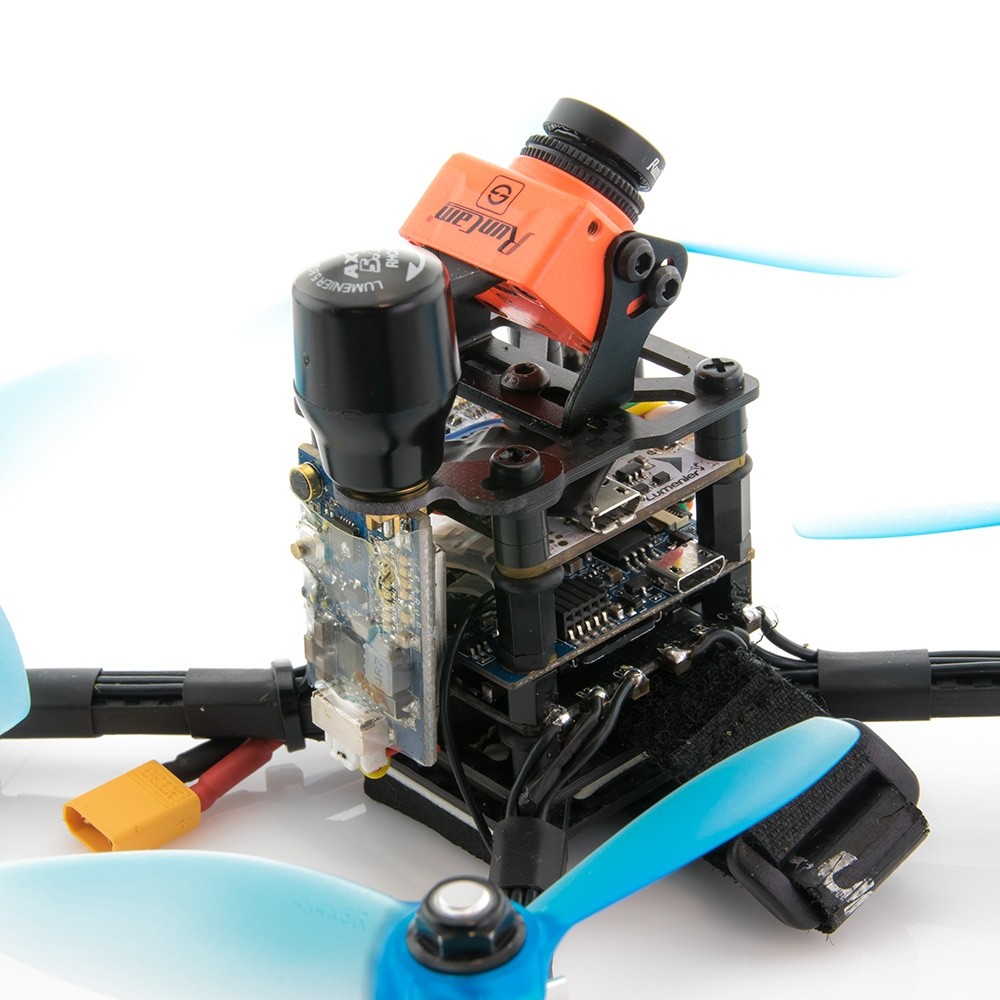

The revolutionary Lumenier AXII Stubby 5.8GHz Antenna .A mini sized 5.8GHz FPV antenna with a 1.6dBic and near perfect axial ratio.
