Description
2 PCS Set Lumenier AXII Patch & Long Range Antenna Combo 5.8GHz 1.6dBi 8.4dBi FPV Antenna Combo RHCP SMA For FPV RC Drone
The revolutionary Lumenier AXII Long Range and Patch Antenna 5.8GHz (RHCP) with SMA connector. A mini sized 5.8GHz FPV antenna with a 1.6dBic and near perfect axial ratio, and a high gain, long range, circular polarized receiver antenna. Designed to provide long range 5.8Ghz video reception in a compact form factor.
Polarization
Right Hand Circular (RHCP)
Long Range Antenna
Gain: 1.6dbic
Gain: 1.6dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 10.5g
Size: 125mm x 16mm
Cable: Semi-rigid RG402
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
AXII Patch Antenna
Circularly Polarized
High 8.4 dBiC
Incredible 95% efficient
Wide 76 degree beam width
Compact low profile design on your goggles

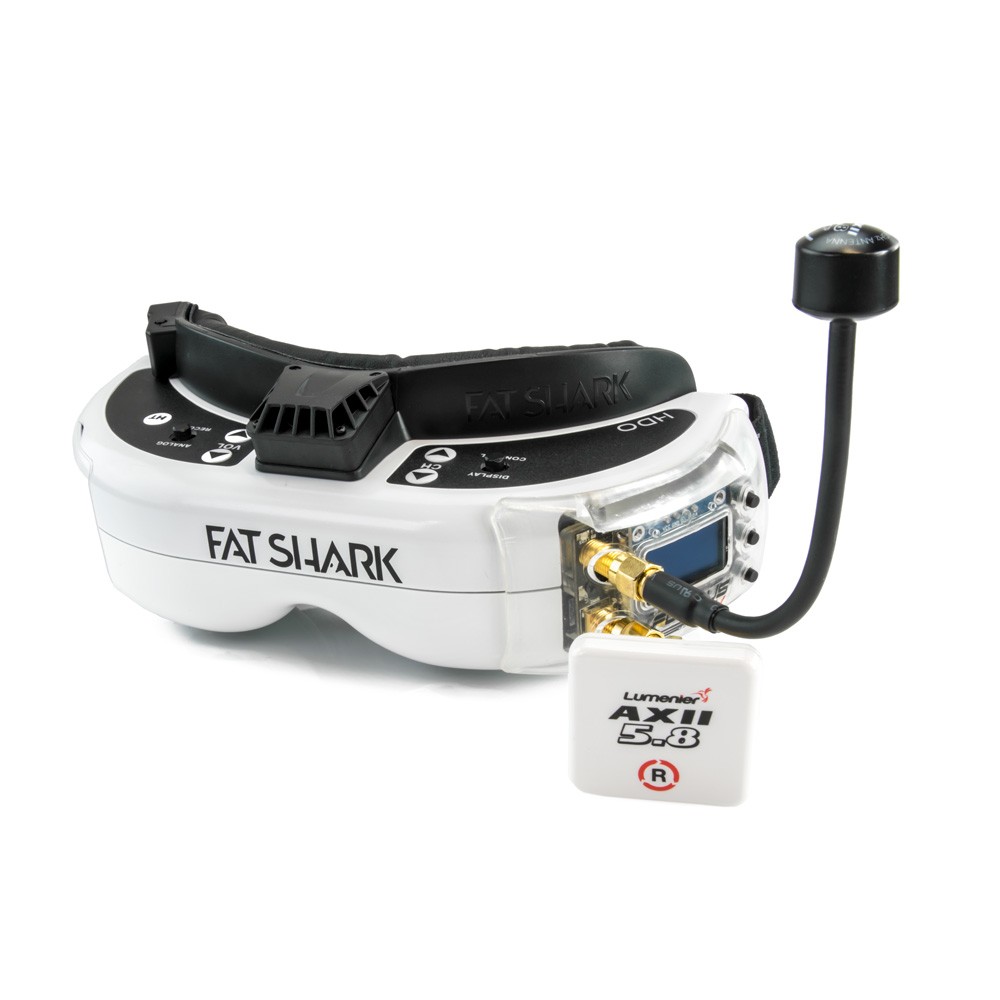

Designed for goggles or base stations
Specifications
Frequency: 5.8GHz
Bandwidth: 220 Mhz
Gain: 8.4 dBiC
Beam Width: 76°
Right Hand Circularly Polarized
SMA Connector (Fits Fat shark Goggles and others using SMA)

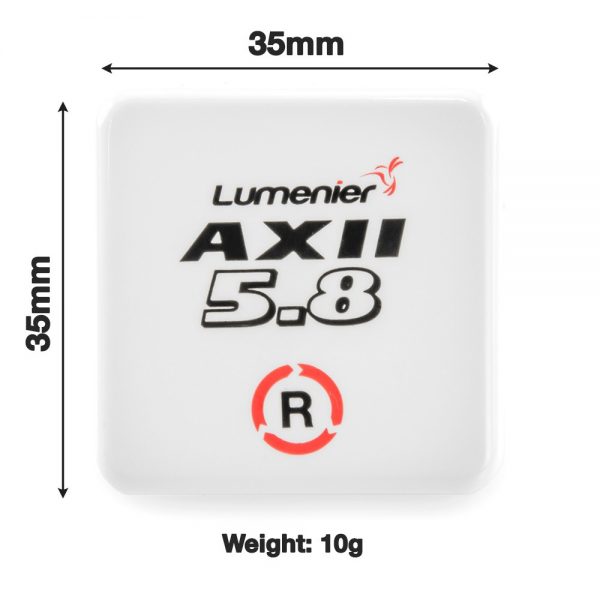

Dimensions: 35mm x 35mm x 9mm (20mm with connector)
Weight: 10grams
Package Included
1 x RHCP Lumenier AXII Patch Antenna 5.8GHz
1 x RHCP Lumenier AXII Long Range 5.8GHz Antenna
Lumenier AXII Patch Antenna 5.8GHz 8.4dBi FPV Antenna LHCP/RHCP SMA/RP-SMA For FPV RC Drone
The Lumenier AXII Patch Antenna . A high gain, long range, circular polarized receiver antenna. Designed to provide long range 5.8Ghz video reception in a compact form factor.
