Lumenier AXII Patch Antenna 5.8GHz 8.4dBi FPV Antenna LHCP/RHCP SMA/RP-SMA For FPV RC Drone

$24.99

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

Lumenier AXII Patch Antenna 5.8GHz 8.4dBi FPV Antenna LHCP/RHCP SMA/RP-SMA For FPV RC Drone

The Lumenier AXII Patch Antenna . A high gain, long range, circular polarized receiver antenna. Designed to provide long range 5.8Ghz video reception in a compact form factor.


Features
Circularly Polarized
High 8.4 dBiC
Incredible 95% efficient

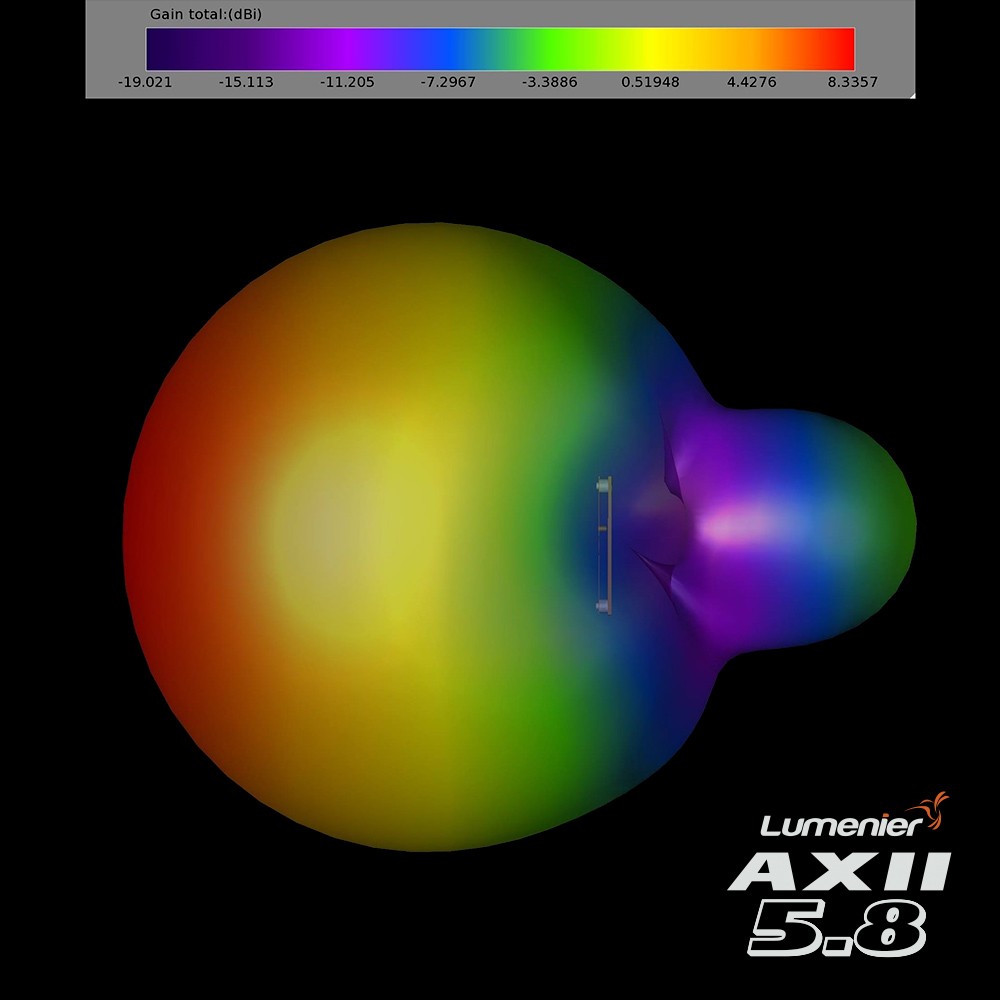

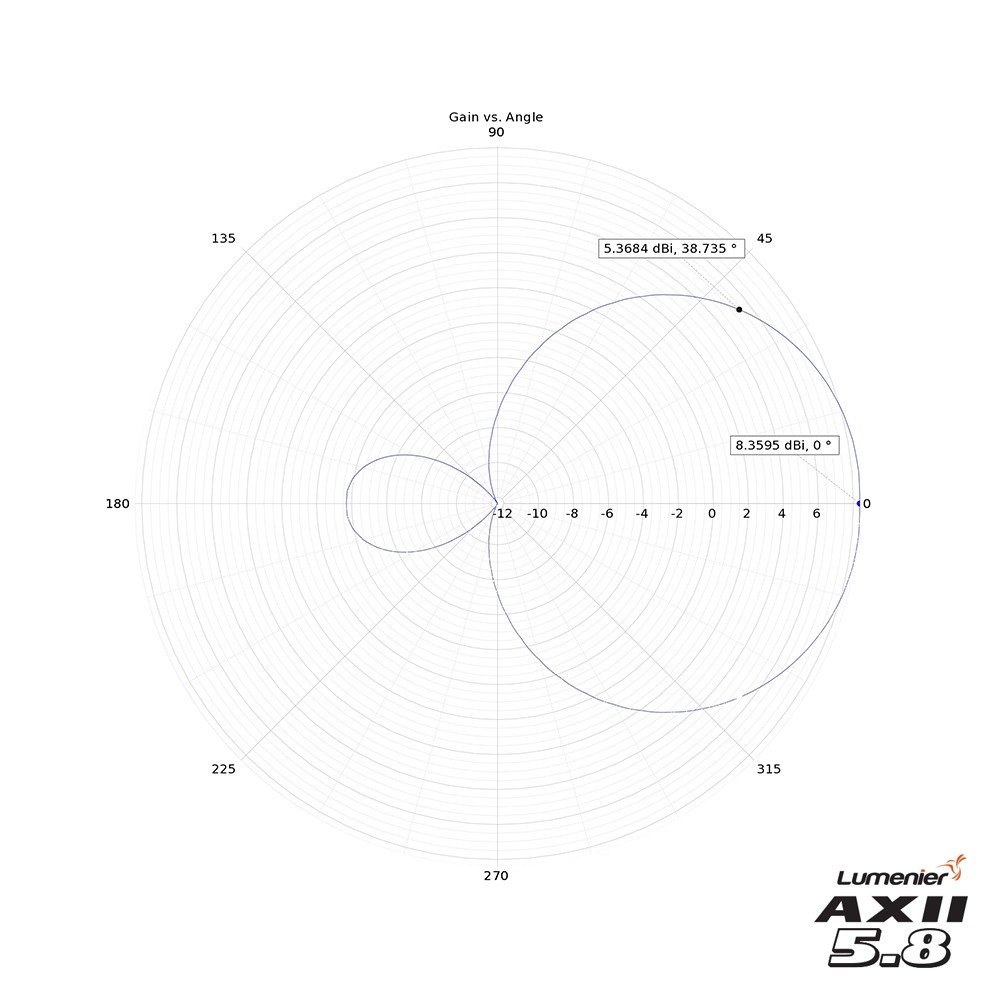

Wide 76 degree beam width
Compact low profile design on your goggles
Designed for goggles or base stations
Specifications
Frequency: 5.8GHz
Bandwidth: 220 Mhz
Gain: 8.4 dBiC
Beam Width: 76°
Right Hand Circularly Polarized
SMA/RP-SMA Connector (Fits Fat shark Goggles and others using SMA)
Dimensions: 35mm x 35mm x 9mm (20mm with connector)
Weight: 10grams


Package Included

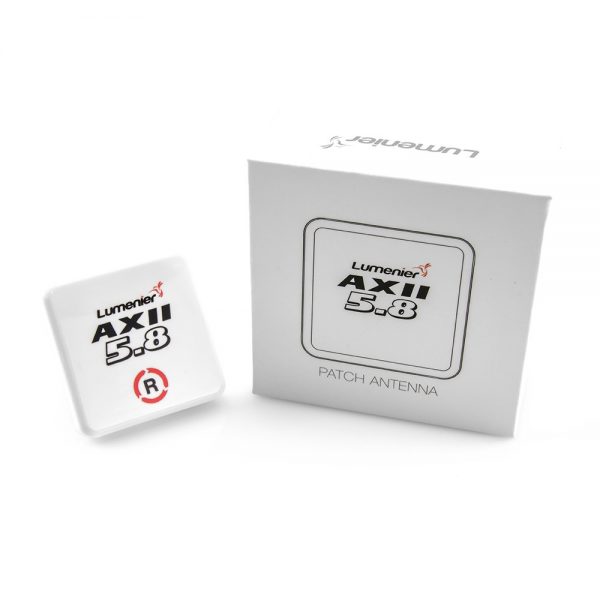

1x Lumenier AXII Patch Antenna 5.8GHz
