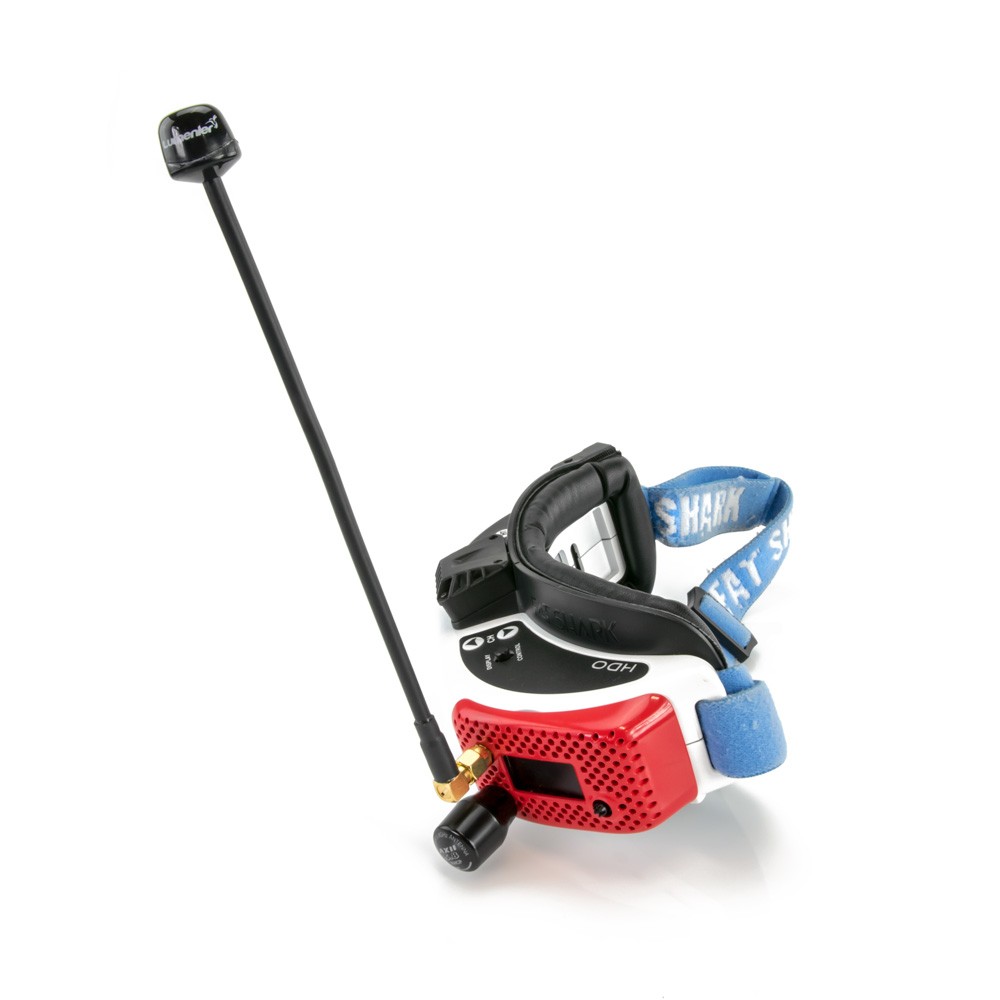

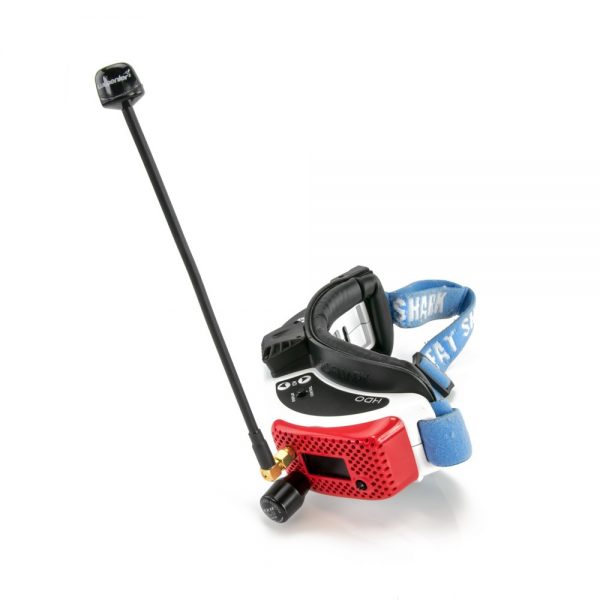

Lumenier AXII 2 Long Range Straight/Right-Angle 5.8GHz 2.2dBi Gain FPV Antenna RHCP/LHCP For RC FPV Racer Drone

$19.99

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

Overview:

The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!

Improved Features:
– Significantly Improved Range with a Higher Gain (2.2dBic Gain)
– Wider Bandwidth (5.3-6.2GHz)
– Cleaner Signal And Better Rejection to Interference
– More Durable – Improved Injection Molded Housing
– Virtually Perfect Axial Ratio


While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.

The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.

Super Tough
Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 125mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.
Specifications:
Brand Name: Lumenier
Item Name: AXII

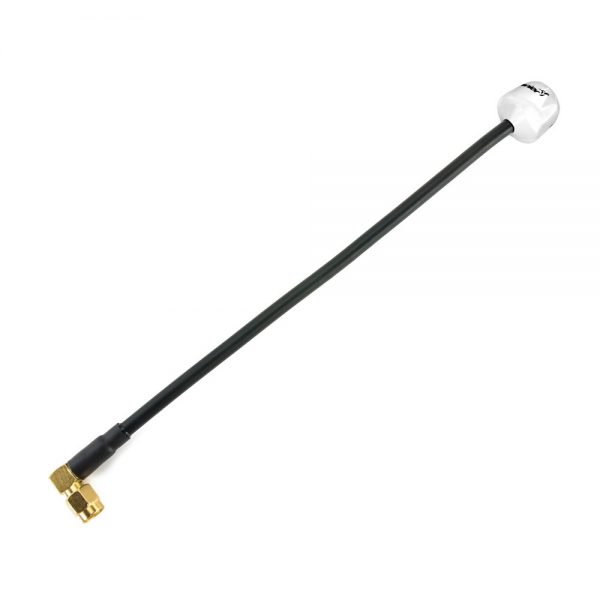

Connector: Straight SMA, Right-Angle SMA (optional)

Polarization(Optional): Right Hand Circular (RHCP), Left Hand Circular (LHCP)

Gain: 2.2dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 10.8g
Size: 125mm x 17.5mm
Cable: Semi-rigid RG402

Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP/LHCP antennas

Package Included:
1x Lumenier AXII 2 Long Range 5.8GHz Antenna
