Description
Lumenier 2207-8 2207 2400KV JohnnyFPV V2 Freestyle CW Thread Brushless Motor for RC Drone FPV Racing
The Lumenier 2207-8 2400KV JohnnyFPV V2 Motor is the next generation of the popular JohnnyFPV Freestyle and Racing motor from Lumenier. The 2207 has been named after and inspired by FPV Johnny Schaer (AKA Johnny FPV), matching his smooth and aggressive flying style.This motor has been designed to provide maximum power and thrust in a small and lightweight package. These motors use a more powerful stator in combination with N52SH magnets and very small air ga p, resulting in incredible power and performance.
Designed to provide responsive power during racing or freestyle with a mid-range KV of 2400kv on 4s, or try 5s for crazy power! The V2 steps up the game with many new features like a minimal light weight base, hollow steel 4mm shaft with screw termination for easy maintenance, and now available in 3 KVs to match your perfect setup. (2700kv, 2400kv, 1750kv) The new 2207 motors come in at just 30g continuing Lumenier's tradition of creating some of the lightest racing and freestyle motors on the market.
This motor also incorporates a 1 piece 4mm steel shaft for improved durability, along with steel threads which resist stripping much more compared to aluminum. Large 9x4x4mm steel bearings provide a buttery smooth flight, making your video just a little more "Juicy".
Carefully assembled and dynamically balanced to the highest standard in Lumenier's climate controlled facility, the new Lumenier 2207 V2 motors deploy state of the art glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip — even under the tremendous demands put on them during drone racing and FPV freestyle events.
| Kv | 2400 |
| Configuration | 12N14P |
| Windings | 8 turn DLRK |
| Termination | D (Delta) |
| Stator Diameter | 22mm |
| Shaft Diameter | 4mm |
| Idle Current @12.6v (Io) | 1.1 A |
| Cells (LiPo) | 2-5S |
| Max Continuous Current (A) 60s | 30A |
| Max Burst Current <10s | 40A |
| Max Continuous Power (W) 60s | 480W |
| Max Efficiency Current | (2.2-6A) 80% |
| Internal Resistance (Rm) | 180mΩ |
| Motor Wire Length | 140mm |
| Motor Connection | Bare Wire |
| Motor Dimension | 27x20mm |
| Weight | 30g (short wires) |
Feature:
-Minimal base design shedding an additional 2g of weight

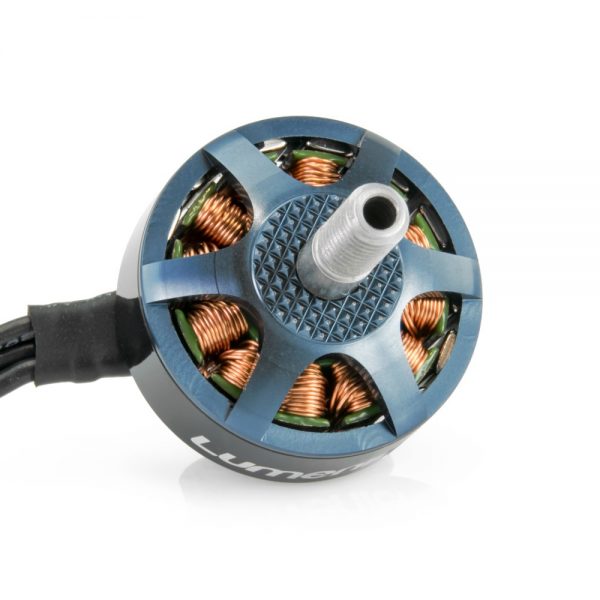

– Single piece 4mm steel shaft with a screw termination in the base for easy maintenance
– Anti-slip grip deck for the propeller machined into the aluminum bell
– 3 colors and 3 KV's to perfectly match your flying style and setup
– Long 140mm motor wires for ultra clean setups with a 4in1 ESC even on 6" builds
Package Included:
1x Lumenier 2207-8 2400KV JohnnyFPV V2 Motor
1x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
4x M3x6 Button head screw
