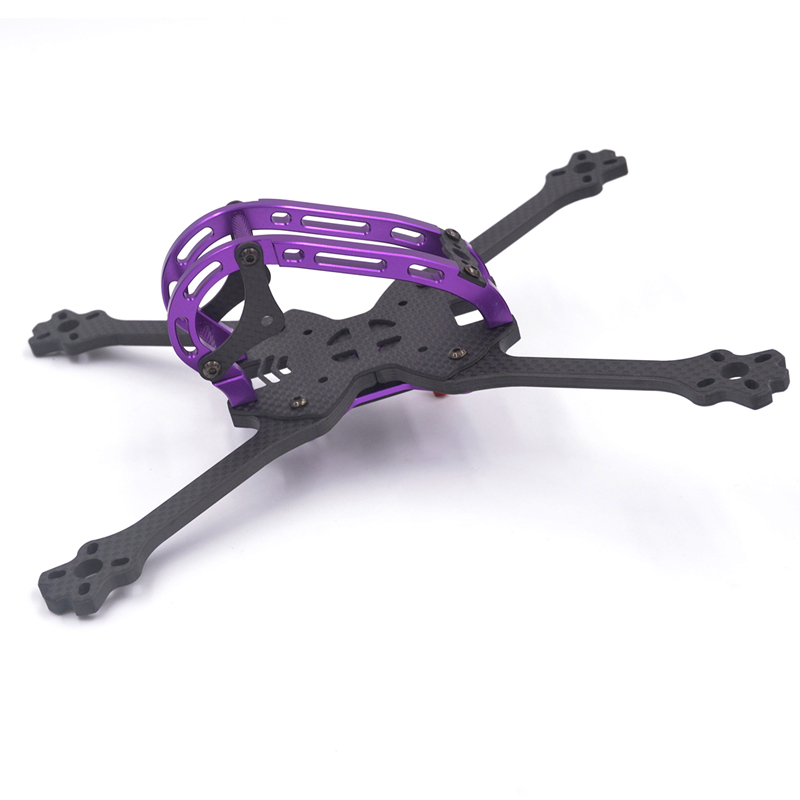

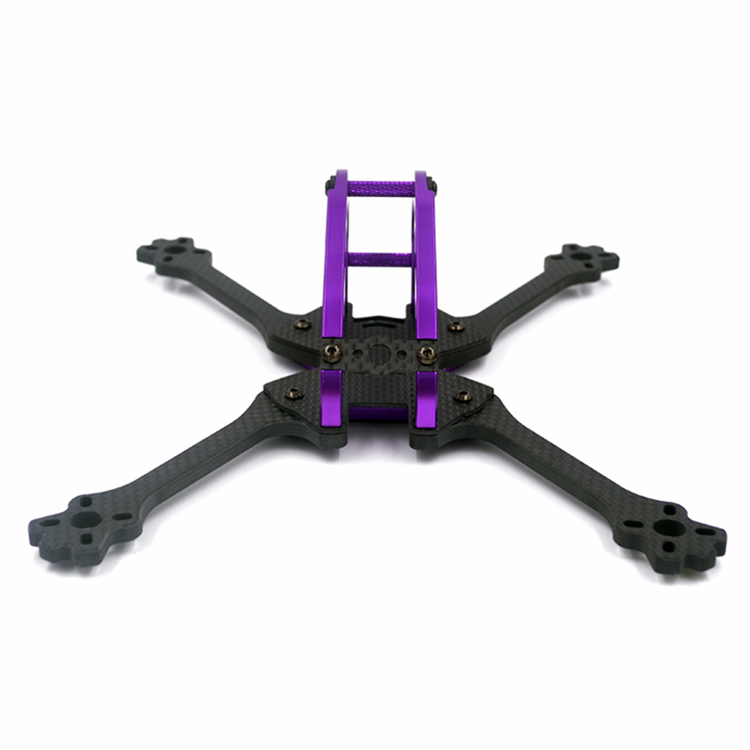

LSX5 230mm FPV Racing Frame Kit Stretch X 5mm 6mm Arm Thickness 3K Carbon Fiber
Description:
Item name: LSX5 230mm FPV racing frame kit
Wheelbase: 230mm
Arm thickness: optional 5mm, 6mm
Bottom plate thickness: 1.5mm
Side plate thickness: 1.5mm
Camera angle range: 0-90 °
Weight: 5mm-113g, 6mm-118g
Material: 3K carbon fiber
Color: optional purple, silvery
Features:
Quick disassembly design.
Independent arm, fast demolition, unique design virtual bit less.
We also designed a fixed four arm of the aluminum alloy, so that the arm is not easy to shift.
Stretch X structure, suitable for racing with Freestyle fancy flight.
Machine all use 12.9 strength YFS screws.
support HS1170, Swift, RunCam Eagle 2, Foxeer Arrow V3 HS1195, RunCam Sparrow, and other lenses.
Recommended Parts (not included):
Flight controller: F4 / F3 / Naze32 / CC3D
Motor: 2204 / 2205 / 2206 / 2305 / 2306 / 2405…brushless motor
ESC: 20-60A brushless ESC
Propeller: 4-5 inch propeller
Battery: 3-4S 1300-2200mAh lipo battery
Package included:
1 x LSX5 230mm FPV racing frame kit
