Description
Notice:
1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.
2. It Comes unassembled. Need build by buyers.
Specifications:Model: LS300

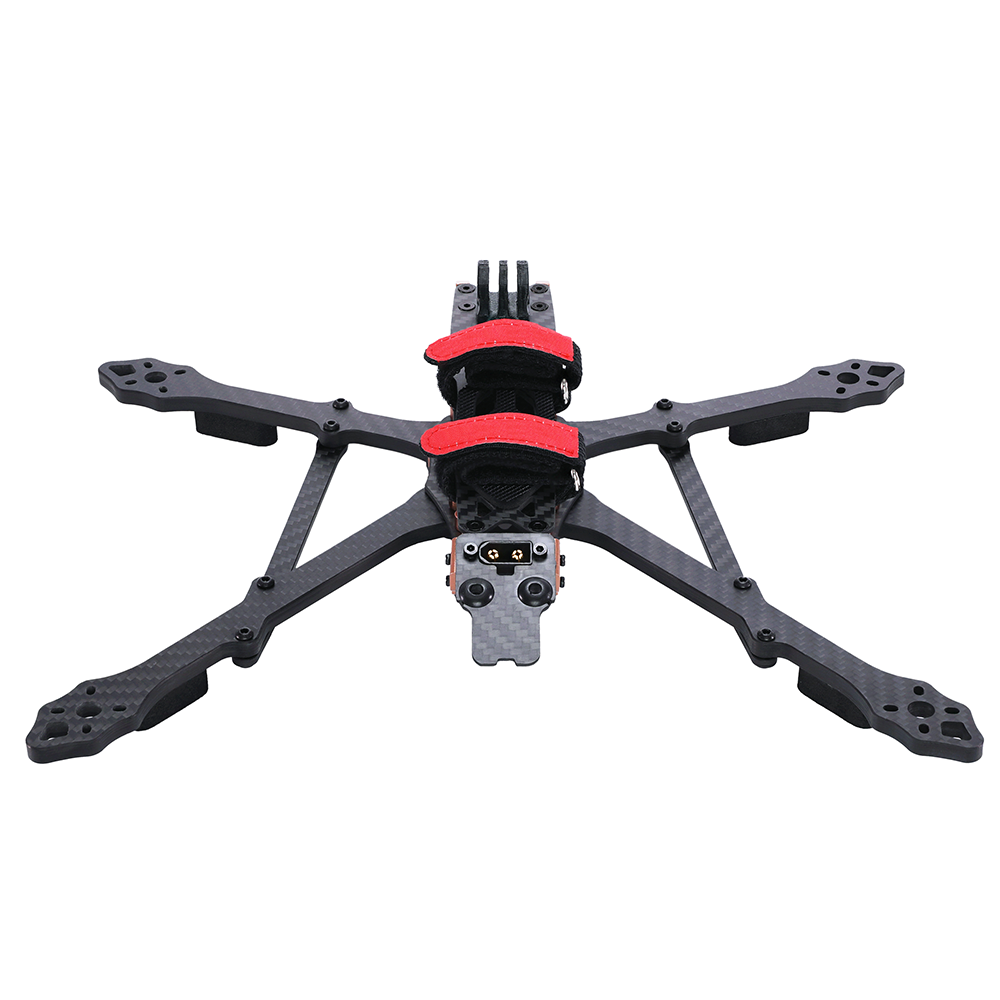

Item Name: 7 Inch Frame Kit
Wheelbase: 300mm
Weight: About 208.8g
Arm Thickness: 6.0mm
Bottom Plate Thickness: 3.0mm
Top PlateThickness: 2.0mm
Clamping Plate Thickness: 2.0mm
Reinforcing Rod Thickness: 3.0mm
Propellers: 7.0 Inch Propellers
Flight Controller Mounting Hole : 20*20mm (M3), 30.5*30.5mm (M3)
VTX Mounting Hole : 20*20mm (M3), 25.5*25.5mm (M1.6)
Camera Installation Width: 19/20mm
Motor Mounting Hole: 16*16mm (M3), 19*19mm (M3)
Structure: DC Type Split
Aluminum Column Height: M3*23mm
Suitable for DJI O3, Snail, Nebula, Aurora, Vista Air Unit, etc.
Features:
1. Lightweight Carbon Fiber: Constructed from T700 carbon fiber, this frame ensures a lightweight design at just 208.8g, maximizing your drone’s performance during racing and flying.
2. Versatile Compatibility: This frame is compatible with prominent units such as DJI O3, WalkSnail, Nebula, and more, giving you flexibility to customize your drone setup.
3. Customizable Assembly: Comes unassembled, allowing for complete customization based on your preferences and specifications through easy-to-follow DIY assembly.
4. Precision Design: Designed with optimal hole spacings including 20*20mm and 30.5*30.5mm, ensuring compatibility with various flight control and motor configurations for improved versatility.
5. Sturdy Structure: Features various thicknesses for arms and plates (up to 6.0mm), providing robust support while allowing for agile maneuverability.
Recommended Parts (For Reference Only, Not Include):
Motor: MAMBA TOKA 2306.5 1650KV 1770KV 4-6S 2770KV 3-4S / Emax ECO II 2807 6S 1300KV 5S 1500KV 4S 1700KV
FC&ESC: 20x20mm SpeedyBee F405 Mini F4 / 30.5*30.5mm iFlight BLITZ F745 FC 55A BLHeli_32 32Bits 4In1 Brushless ESC Stack
VTX&Camera: DJI O3 Air Unit
Propeller: 2 Pairs Gemfan Flash 7040 / 6 Pairs Gemfan F7036 7036 7inch 3-Blade 2-Blade Foldable Propeller
Package included:
1x 300mm Wheelbase 7 Inch Frame Kit
