Description

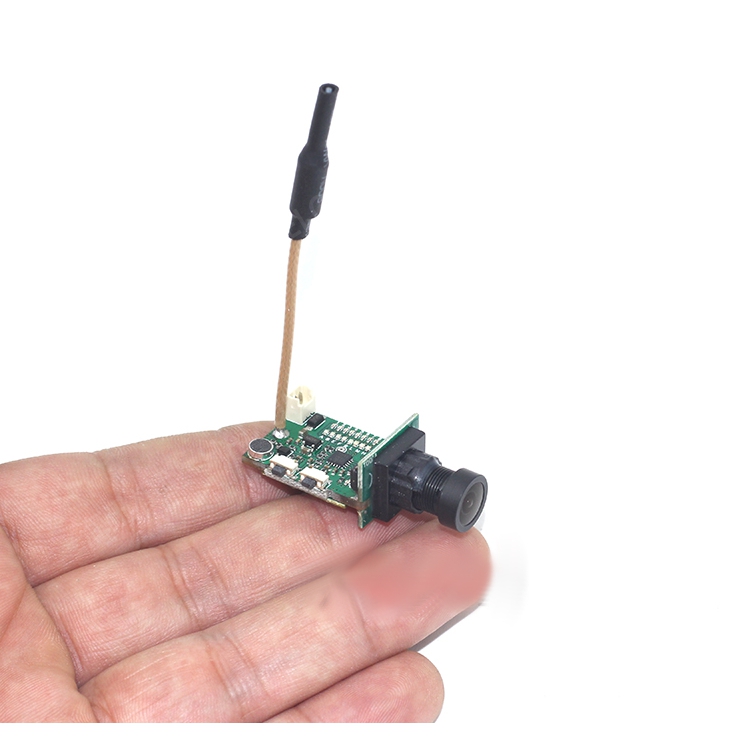

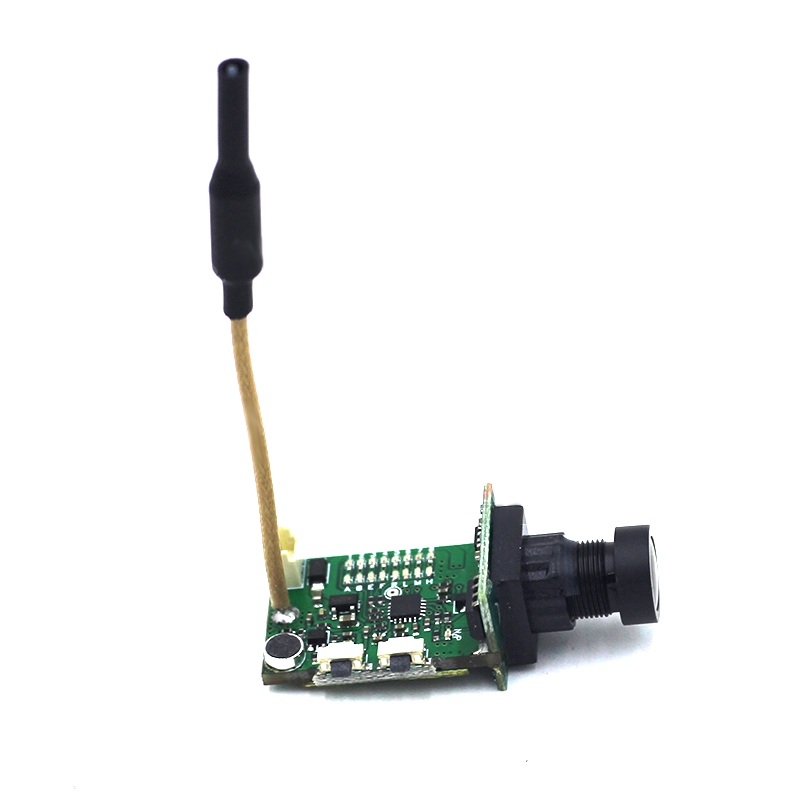

LS-F200KT 5.8G 40CH 800TVL AIO FPV Camera Transmitter 25mW/200mW/600mW VTX 120 Degree FOV
Features:
Integrates 800TVL camera, 5.8G 40CH VTX and 3dBi whip antenna
Wide angle of view – 120-degree FOV and 150-degree DFOV
NTSC / PAL switchable, 25mW / 200mW / 600mW switchable
Includes RaceBand, Band R for professional competition
Specifications:
Image sensor: 1/3 inch CMOS
Horizontal resolution: 800TVL
Lens: 150-degree M8
Angle of view: 120-degree FOV, 150-degree FOV
Min. illumination: 0.1 lux
TV system: NTSC / PAL switchable
Audio carrier: yes
Output impedance: 50 ohm
Output signal strength: 13 + / – 1dBm, 22 + / – 1dBm, 27 + / – 1dBm
Number of channels: 40 ( including RaceBand, Band R )
Antenna: 5.8G 3dBi
Power supply: 5 + / – 0.5V DC
Output power: 25mW / 200mW / 600mW switchable
Frequency
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917
Package Included
1 x 5.8G 40CH 800TVL FPV Camera
