Description
LDARC/Kingkong KK12 KK Flytower 20x20mm 12A BLheli_S ESC & Omnibus F4 Flight Controller with OSD
Specification:
Brand Name: LDARC
Item Name: 12A BL_s 4 In 1 ESC & F4 FC Integrated with OSD & 40CH 0/25/100/200mW VTX Flytower
Flytower Height: 21mm
12A 4 In 1 ESC ( Bottom Level)
Con. Current: 12A
Peak Current: 15A ( 5s)
Firmware: BLHeli_S
Input Voltage: 2-3S
Size: 25x28mm
Mounting Hole: 20x20mm
Net Weight: 4g
Support Oneshot, Multishot, DShot150/300 and DShot600

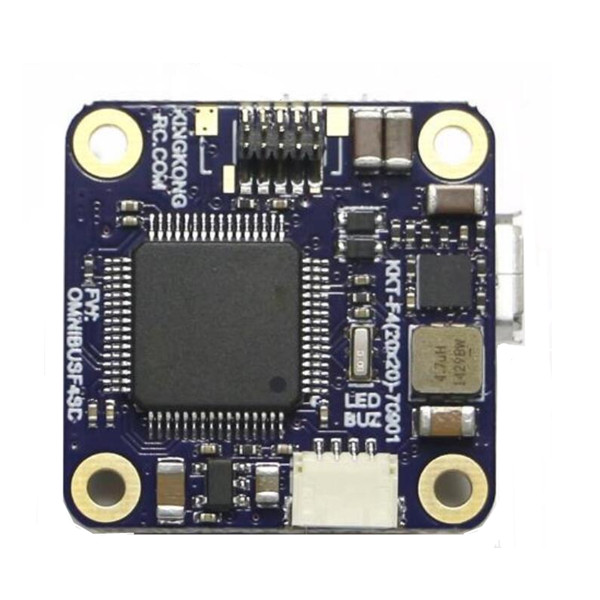

Omnibus F4 Flight Controller ( Top Level)
Firmware: OmnibusF4 SD
– Built-in Betaflight OSD
Output Voltage for Camera: 5V
Size: 25x25mm
Mounting Hole: 20x20mm
Weight: 3.7g
Support DSMX , SBUS and PPM Receiver
Package Included:
1x 12A 4 In 1 ESC
1x F4 Flight Controller
4x M2*18 Screws
8x Rubber Ring
4x M2 Nut
4x Aluminum Column
3x Connection Cable
