Description
LDARC/Kingkong 20x20mm KK Flytower 20A BLheli_S ESC & F4 AIO OSD Flight Controller & 48CH 25/100/200mW VTX
Specification:
Brand Name: LDARC
Model: KK20 KK Flytower
Item Name: 20A BL_s 4 In 1 ESC & F4 FC Integrated with OSD & 40CH 0/25/100/200mW VTX Flytower
Flytower Height: 21mm
Flytower Weight: 11g
20A 4 In 1 ESC ( Bottom Level)
Con. Current: 20A
Peak Current: 25A ( 5s)
Firmware: BLHeli_S
Input Voltage: 2-4S
Size: 29x31mm
Mounting Hole: 20x20mm
Net Weight: 5.3g
Support Oneshot, Multishot, DShot150/300 and DShot600

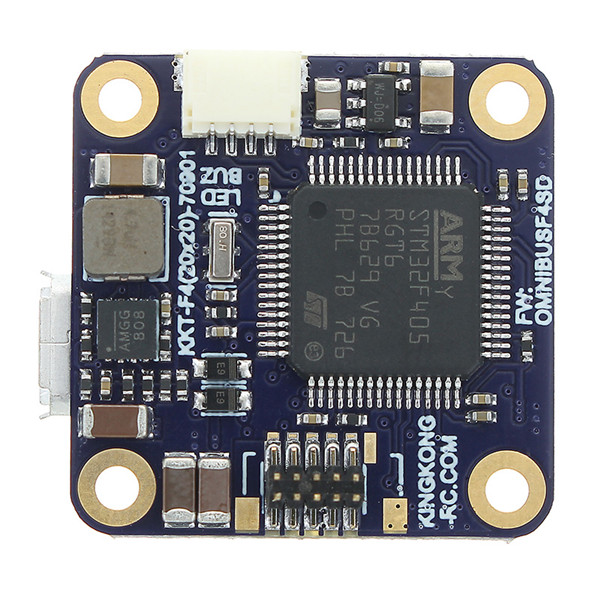

Omnibus F4 Flight Controller ( Middle Level)
Firmware: OmnibusF4 SD
– Built-in Betaflight OSD
Output Voltage for Camera: 5V
Size: 25x25mm
Mounting Hole: 20x20mm
Weight: 4g (±
Support DSMX , SBUS and PPM Receiver
5.8G 48CH 0/25/100/200mW VTX ( Top Level)
Channel: 25CH
Power: 0/25/100/200mW ( Switchable)
Output Voltage for Camera: 5V
Size: 25x25mm
Mounting Hole: 20x20mm
Weight: 2g
Blue Light points at the CH indicator ( CH1-CH8, flashes 1-8 times)
Green Light points at the Band Indicator ( Band A- Band F, flashes 1-6 times)
Red Light points at the Power Indicator (25-100mW, flashed 1-3 times)
Package Included:
1x Omnibus F4 Flight Controller
1x 20A BL_S 4 In 1 ESC
1x 48CH 25/100/200mW VTX
1x bag of Screws and Standoffs
1x Antenna
3x Cable
