Description

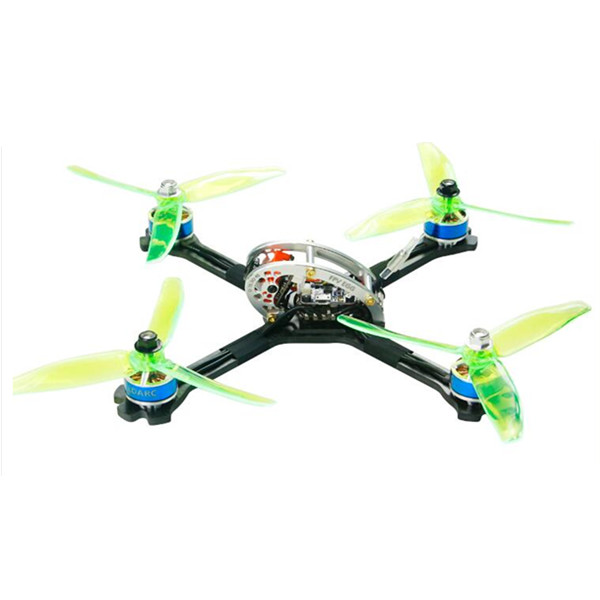

LDARC 200GT 200mm F4 OSD FPV Racing Drone BLheli_S 5.8G 16CH 25mW 100mW VTX 600TVL Camera
Specification:
Brand Name: LDARC
Model: 200GT
Item Name: 200mm Ture X Type Carbon Fiber FPV Racing Drone
Version: PNP ( Without Receiver and Battery)
Wheelbase: 200mm
Material: Carbon Fiber & 7075 Aluminum Alloy
Input Voltage: 3-4S
Recommend Battery: 4S 1000-1500mAh above 25C Lipo
Weight: 190g (Without Receiver and Battery)
Takeoff Weight: 205g
| KK20 Flight Controller & ESC Flytower | Flight Controller
Firmware: OmnibusF4 SD
– Built-in Betaflight OSD
Output Voltage for Camera: 5V
Size: 25x25mm
Mounting Hole: 20x20mm
Weight: 3.7g
Support DSMX , SBUS and PPM Receiver
|
| 20A 4 In 1 ESC
Con. Current: 20A
Peak Current: 25A ( 5s)
Firmware: BLHeli_S
Input Voltage: 2-4S
Size: 29x31mm
Mounting Hole: 20x20mm
Net Weight: 5.3g
Support Oneshot, Multishot, DShot150/300 and DShot600
|
|
| XT1806 2500KV Motor | Motor Width: 22.4mm Motor Height: 30.5mm Shaft Diameter: 5mm Weight: 21.1g ( with Nut) |
| Q100 VTX | 16CH 25mW / 100mW VTX |
| Camera | 600TVL CCD Fov 160 NTSC Camera |
| Propeller | 5040 3-blade Propeller |
Features:
-Extreme light weight 5 inch prop racing drone
-Modular design, KK tower F4 with OSD FC, with betaflight firmware
-The structure uses 4mm thickness carbon fiber and 7075 aviation aluminum alloy material, light weight, high strength
Package Included:
1x LDARC 200GT Drone
5x 5043 Propeller CW & CCW
1x Battery Strap
4x Motor Base
,
,
,
,
,
